5-569552-2

Manufacturer	TE Connectivity Ltd.
Description	Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Bag Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors 08P SHLD STR/RD HP Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Bag Cat 5 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, RJ45, HI PERFORM
Category	Connector SolutionsModular ConnectorsModular Connectors

对参数有疑问？问 AI 助手

Business

Product	Modular Plugs	Other Names	55695522
Product Category	Modular Connectors / Ethernet Connectors	Standard Package	Bulk
Factory Pack Quantity	500

Compliance

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Material Flammability Rating	UL 94 V-2

Electrical

Voltage Rating	150 V	Voltage - Working	:150VAC
Voltage - Breakdown	:1000VAC	Current Rating (Max)	1.5 A
Insulation Resistance	:500Mohm	Voltage - Supply (Min)	150VAC
Connector - Voltage Input	:Cat5

Mechanical

Color	Translucent - Clear	Depth	23.25 mm
Pitch	1.02 mm	Height	11.19 mm
Length	0.915" (23.24mm)	Weight	0.004
Material	:Polycarbonate	Packaging	Bulk
Shielding	Shielded	Cable Type	Round Cable, Stranded Wires
Wire Gauge	24-26 AWG	Termination	Crimp
Housing Color	Clear	Mounting Type	Cable Mount
Connector Type	:RJ45	Contact Finish	Gold
Mounting Style	Cable	Shield Material	Copper Alloy
Contact Material	Phosphor Bronze	Housing Material	Polycarbonate (PC)
Length - Overall	11.79 mm	Color - Connectors	:Black
Number of Contacts	8	Contact Termination	:IDC / IDT
Number of Positions	:8	Contact Finish Thickness	50µin (1.27µm)
Diameter - Outside, Non-Expanded	:0.99mm

Product Info

Type	Modular Plug	Gender	PL
Series	:-	USOC Codes	RJ45
Category Number	Cat 5	Number of Ports	1
RF Family/Standard	569552	Performance Category	Cat 5e
Number of Positions Loaded	8	Number of Positions/Contacts	8p8c (RJ45, Ethernet)

Environmental

Ratings	Cat5e	Mechanical Life	:750 mating cycles
Operating Temperature	-40C to 60C

Documents & Media

PDF Document

catalog_2010_ch03_cat5e_82164-3_20110104.pdf

PDF Document

39132.pdf

Online Document

5-569552-2?RQPN=5-569552-2

Similar Parts

1-569875-0

te connectivity / amp

Connector Accessories Modular Plugs Snagless Boot Gray Modular Plugs and Accessories CONN ACCY BOOT HOODED GRAY Modular Connectors / Ethernet Connectors MOD PLUG BOOT GRAY Connector Accessories Modular Plugs Snagless Boot Gray Product Highlights:BootBoot Type = SnaglessBoot Color = GraySearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN

$38.3996

Details

569875-1

te connectivity / amp

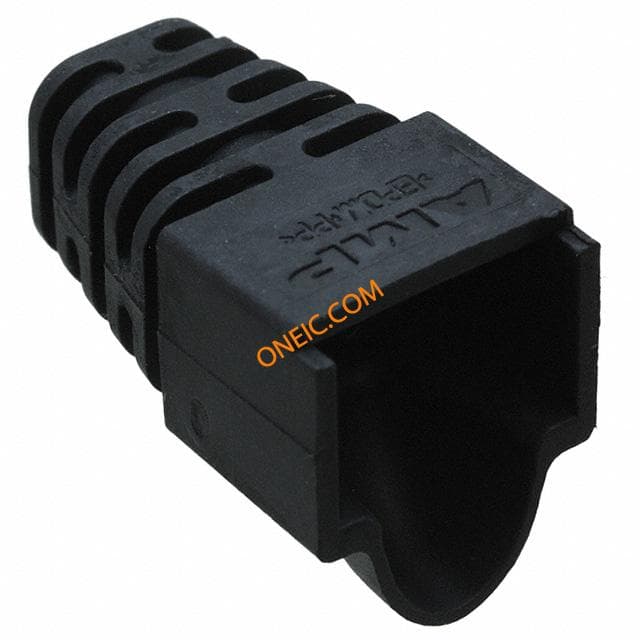

Connector Accessories Modular Plugs Snagless Boot Black Modular Plugs and Accessories CONN ACCY BOOT HOODED BLACK Cable boot, cat3/5/5e modular plug,black Cable Boots MOD PLUG BOOT Connector Accessories Modular Plugs Snagless Boot Black Product Highlights:BootBoot Type = SnaglessBoot Color = BlackSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, 8WAY CableBoot;Snagless;Black;0.21in.;RoHSCompliant,ELVCompliant Modular Plug UTP Boot

$1.3532

Details

569875-5

te connectivity / amp

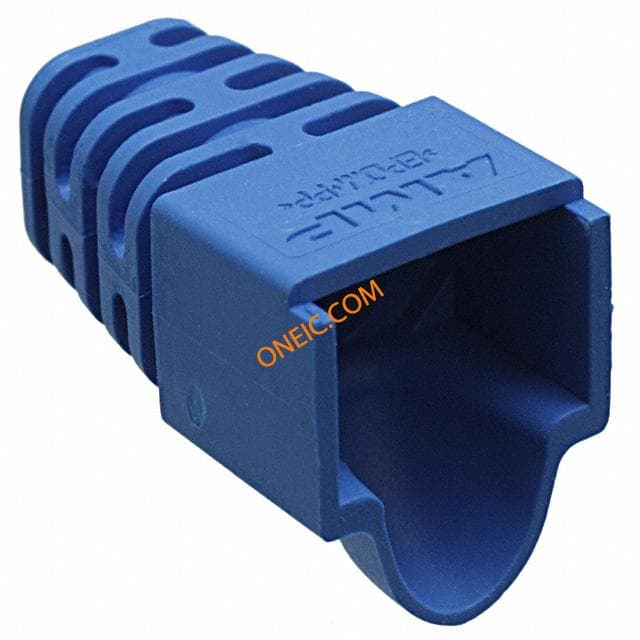

Connector Accessories Modular Plugs Snagless Boot Blue Modular Plugs and Accessories CONN ACCY BOOT HOODED BLUE Cable boot, cat3/5/5e modular plug, blue Cable Boots BLUE BOOT Connector Accessories Modular Plugs Snagless Boot Blue Product Highlights:BootBoot Type = SnaglessBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Blue;0.21in.;RoHSCompliant,ELVCompliant 5.33 mm Cable Diameter Blue Snagless Boot

$1.2716

Details

569875-3

te connectivity / amp

Connector Accessories Modular Plugs Snagless Boot Red Modular Plugs and Accessories CONN ACCY BOOT HOODED RED Cable boot, cat3/5/5e modular plug, red Cable Boots RED BOOT Connector Accessories Modular Plugs Snagless Boot Red Product Highlights:BootBoot Type = SnaglessBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Red;0.21in.;RoHSCompliant,ELVCompliant

$2.0740

Details

558527-1

te connectivity / amp

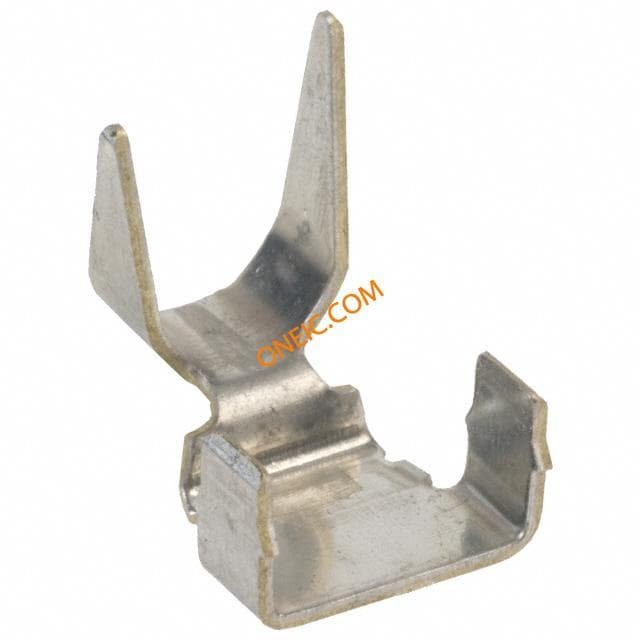

Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Modular Plugs and Accessories CONN ACCY STRAIN RELIEF Modular Connectors / Ethernet Connectors STRAIN RELIEF Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Product Highlights:Strain ReliefSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, STRAIN RELIEF, BRASS
