336330-1
| Manufacturer | |
| Description | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Shielded Cat5 RJ45 EMT modular data plug Modular Connectors / Ethernet Connectors MOD PLUG KIT 8W SHLD Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, RJ45, EMT ShieldedCat5RJ45EMTmodulardataplug Plug; RJ45; PIN:8; Cat:5e; shielded; gold plated; Pin layout:8p8c |
| Category |
Business
| Product | Modular Plugs | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-2 | ||
Electrical
| Ethernet | Cat 5e | Voltage Rating | 150 V |
| Voltage - Working | :150VAC | Voltage - Breakdown | :1000VAC |
| Current Rating (Max) | :1.5A | Insulation Resistance | :500Mohm |
| Connector - Voltage Input | :Cat5 | ||
Mechanical
| Color | Translucent - Clear | Depth | 23.5mm |
| Pitch | 1.02 mm | Length | 0.921" (23.40mm) |
| Weight | 0.0393 | Material | :Polycarbonate |
| Packaging | Bulk | Shielding | Shielded |
| Cable Type | Round Cable, Stranded Wires | Wire Gauge | 24-26 AWG |
| Orientation | Straight | Termination | Crimp |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Cable Diameter | 5.3...6mm | Connector Type | :RJ45 |
| Contact Finish | Gold | Mounting Style | Cable |
| Shield Material | Brass | Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) | Package Quantity | 1 |
| Primary Material | Modular | Connector - Cable | plug |
| Number of Contacts | 8 | Contact Termination | :IDC / IDT |
| Number of Positions | :8 | Contact Finish Thickness | 50µin (1.27µm) |
| Contact Material - Plating | gold plated | 1st Connector Mounting Feature | 8p8c |
| Diameter - Outside, Non-Expanded | :6.01mm | ||
Product Info
| Spg | 1 | Type | Modular Plug |
| Gender | PL | Series | 336 |
| Features | Molded Boot | Performance | Cat5 |
| Specifications | RJ45 | Number of Ports | 1 |
| Number of Units | 1 | Performance Category | Cat 5e |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5e | Mechanical Life | :750 mating cycles |
| Operating Temperature | :60°C | ||
Documents & Media
Similar Parts
790163-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PC CAT 6 TOOL 5.40 HEX 8.6 LG TOOL HAND W/DIE SET CAT 6 AMP EMT plug termination tool CRIMP TOOL Crimper;Ratchet;26-24AWG;ModularPlug;Cat6;790163-2Die;PRO-CRIMPERIII Crimping tool, 790163-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 RJ MODULAR PLUG 8 Way 压接工具 , 适用于26 → 24 AWG 线规格
790163-2
te connectivity / amp
Connector Accessories Modular Plug Tool Die Set Punches & Dies CAT 6 DIE SET 5.40 HEX 8.6 LG TOOL DIE SET ONLY CAT 6 Pro-Crimper Ii Hand Tool And Die Sets CAT6DIESET5.40HEX8.6LG
2-231652-1
te connectivity / amp
Modular Plug Hand Tool Crimpers HAND TOOL Hand Tools HAND TOOL TOOL CRIMP MOD 8POS WITH DIE AMP RJ45 modular plug termination tool CRIMP TOOL Crimper;Ratchet;ModularPlug;8-PosLineKeyed,Non-Keyed;853400-1Die Crimp tool, 2-231652-7, TE Connectivity TE Connectivity 8 Position Modular Plug RJ45 压接工具
737893-2
te connectivity / amp
Connector Accessories 8 POS Modular Plugs Boot Gray Carton Modular Plugs and Accessories STRAIN RELIEF, EMT, GREY
5-737893-7
te connectivity / amp

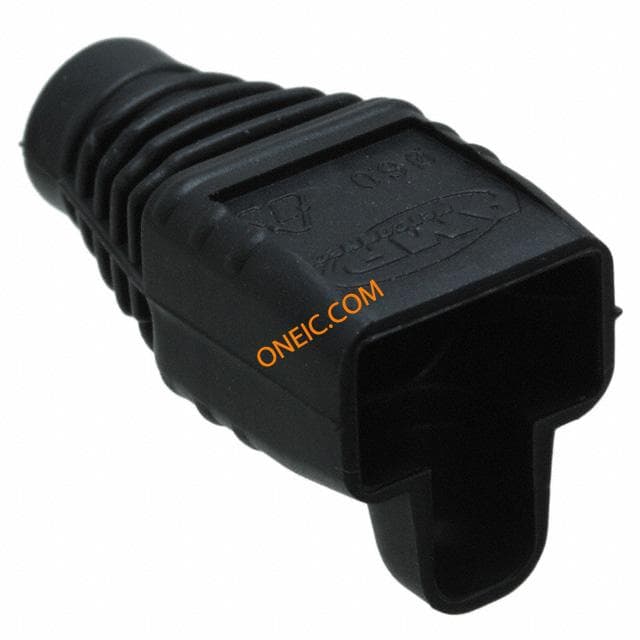

Connector Accessories Boot Black Box CONN ACCY BOOT BLACK Modular Connectors / Ethernet Connectors MOD PLUG BOOT 8W BLK DIAM MAX 6 0 Connector Accessories Boot Black Box Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = BlackPackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, MODPLUGSNAGLESSBOOT,8P,BLACK,DIAMMAX6.0MM
5-737893-2
te connectivity / amp
Connector Accessories 8 POS Modular Plug Boot Gray Box CONN ACCY BOOT GRAY Modular Connectors / Ethernet Connectors MOD PLUG BOOT 8W GREY DIAM MAX 6 0 Connector Accessories 8 POS Modular Plug Boot Gray Box Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = GrayPackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-737893-4
te connectivity / amp
Connector Accessories Boot Blue Box CONN ACCY BOOT BLUE Modular Connectors / Ethernet Connectors MOD PLUG BOOT 8W BLUE DIAM MAX 6 0 Connector Accessories Boot Blue Box Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = BluePackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-737893-3
te connectivity / amp
Connector Accessories 8POS Boot Red Polyvinyl Chloride Box CONN ACCY BOOT RED Modular Connectors / Ethernet Connectors BOOT 8 POS RED Connector Accessories 8POS Boot Red Polyvinyl Chloride Box Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = RedPackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-737893-6
te connectivity / amp
Connector Accessories 8 POS Modular Plug Boot Yellow Box CONN ACCY BOOT YELLOW Modular Connectors / Ethernet Connectors MOD PLUG BOOT 8W YELLOW DIAM MAX 6,0 Connector Accessories 8 POS Modular Plug Boot Yellow Box Search Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-737893-5
te connectivity / amp
Connector Accessories Boot Green Box CONN ACCY BOOT GREEN Modular Connectors / Ethernet Connectors Mod Plug Boot 8W Green Diam ma Modular Plugs and Accessories Modular Plugs and Accessories Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = GreenPackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-737893-1
te connectivity / amp
Connector Accessories Boot Thermoplastic Elastomer White CONN ACCY BOOT WHITE Modular Connectors / Ethernet Connectors MOD PLUG BOOT 8W WHITE DIAM MAX 6,0 Connector Accessories Boot Thermoplastic Elastomer White Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = WhitePackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
539690-1
te connectivity / amp

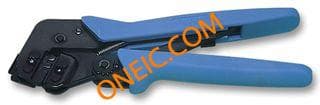

HZ MODULAR PLUG HAND TOOL, MODULAR PLUG EMT
