Business
| Standard Pack | 50 | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Dielectric Strength | :1000V/m |
| Current Rating (Max) | :1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.1 mm |
| Weight | 0.0283 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | Without |
| Wire Gauge | 26-28 AWG, Stranded or Solid | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center & Military |
| 2nd Connector | Without | Housing Color | Blue |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | 622 Series | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic |
| Length - Overall | 29.9 mm | Mounting Feature | Without |
| Cable Termination | IDC | Termination Style | IDC |
| Color - Connectors | :Blue | Mating Orientation | With |
| Number of Contacts | 20 | Contact Termination | :IDC / IDT |
| Number of Positions | 20 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Feed Through, Polarizing Key | CAD Drawing | 3D CAD Model |
| Product Type | Socket Headers | Connection Type | Ribbon Cable |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Online Document
Online Document
Similar Parts

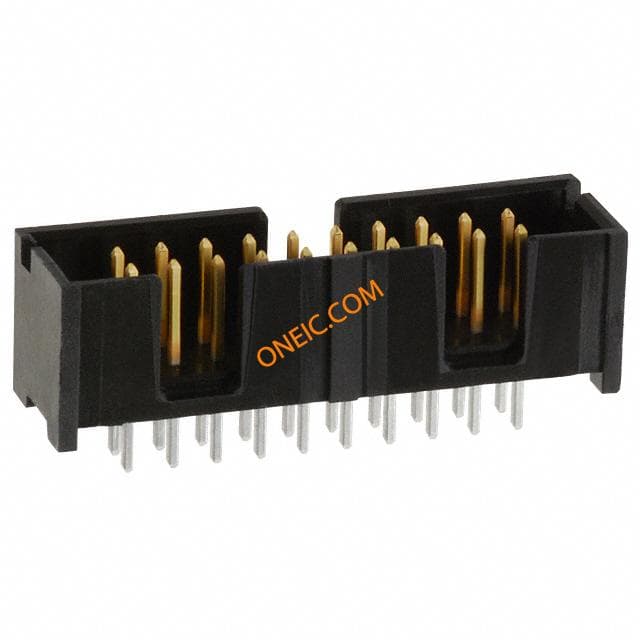

5103308-5
te connectivity / amp
$9.1800
Details

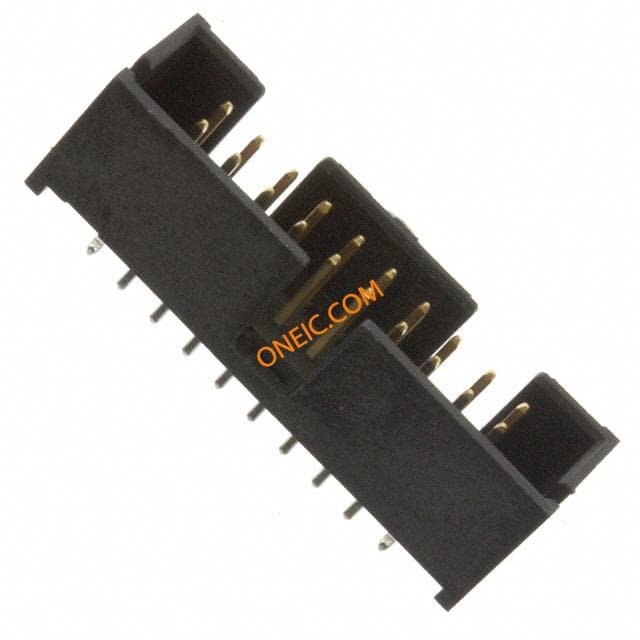

5104338-4
te connectivity / amp
$11.7232
Details
1761608-7
te connectivity / amp
$29.6888
Details

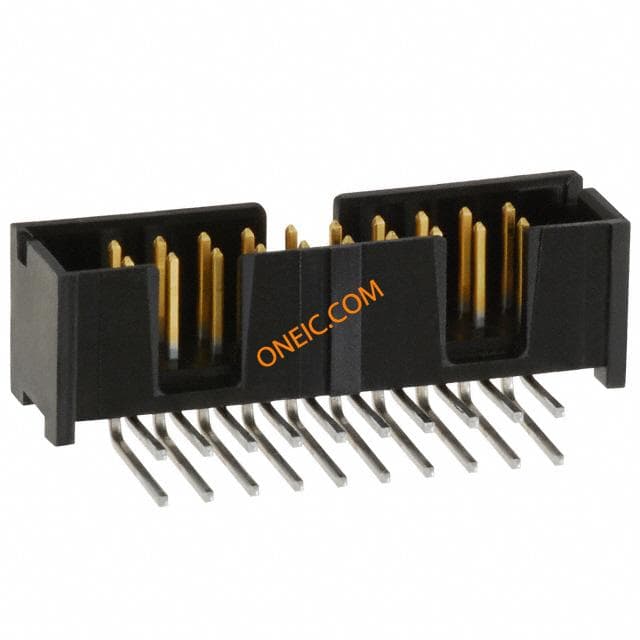

5103310-5
te connectivity / amp
$12.6398
Details
5102160-4
te connectivity / amp
$23.9999
Details
5103311-5
te connectivity / amp
$17.2040
Details

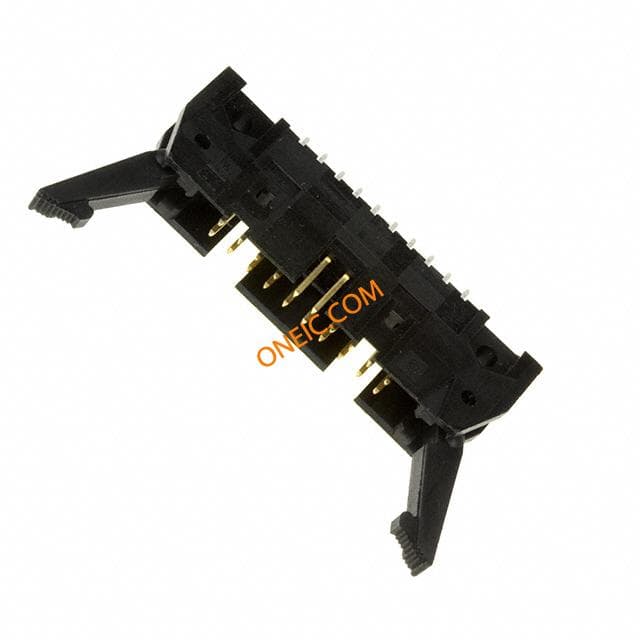

5499922-4
te connectivity / amp
$14.1440
Details

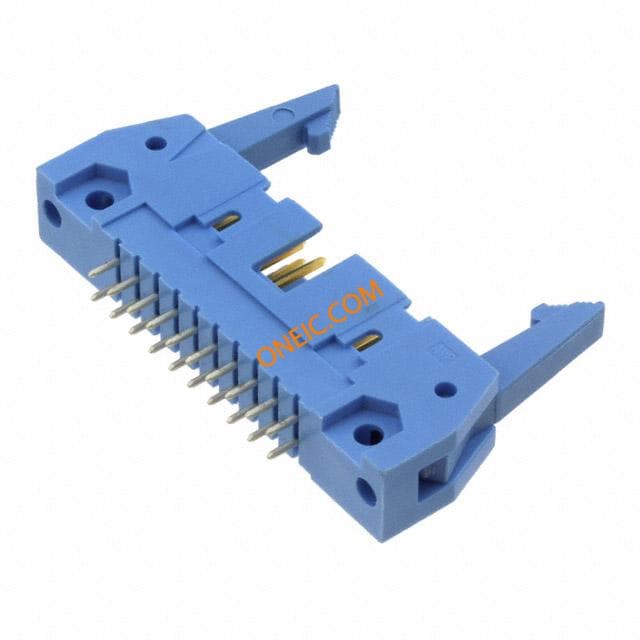

2-5499206-4
te connectivity / amp
$43.1997
Details
1761685-7
te connectivity / amp
$52.7118
Details
5499786-4
te connectivity / amp
$24.0720
Details
2-5499376-4
te connectivity / amp
$10.2000
Details
5499141-4
te connectivity / amp
$23.9130
Details
5102156-4
te connectivity / amp
$24.1972
Details
2-5499160-4
te connectivity / amp
$20.0600
Details
5102322-4
te connectivity / amp
$31.4840
Details

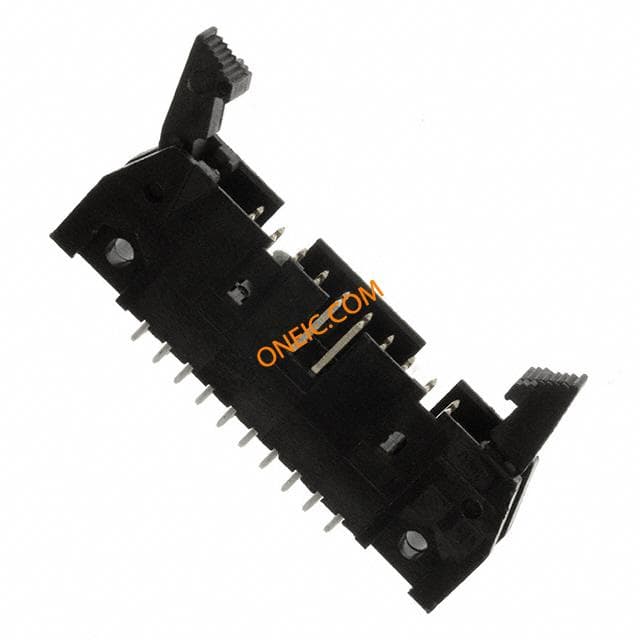

5499160-4
te connectivity / amp
$39.1606
Details

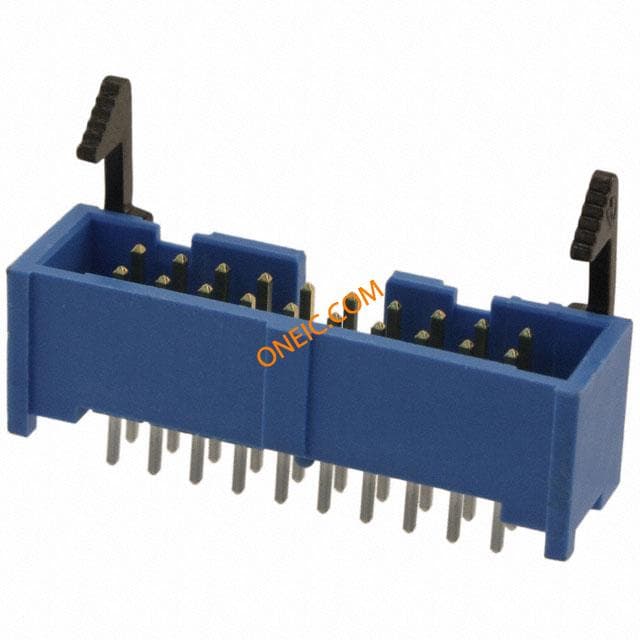

2-1761608-7
te connectivity / amp
$43.3275
Details
1-111494-8
te connectivity / amp
$67.8912
Details

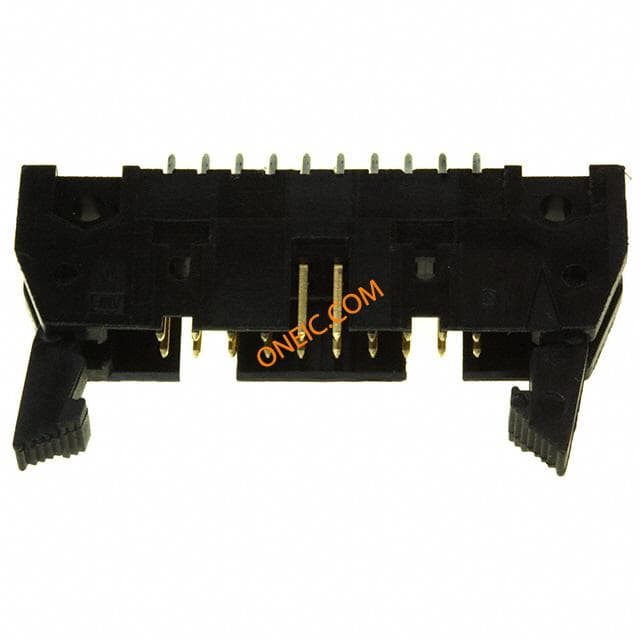

5499910-4
