1658527-8
| Manufacturer | |
| Description | Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 622 20-POS 20 way IDC bump polarised socket Headers & Wire Housings IDC FSKT S 20 30AU PL Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY 20wayIDCbumppolarisedsocket Multipole socket DIN 41651 20P, 1658527-8, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2041LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Switch Function | Unlatched |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1 A |
| Insulation Resistance | :1Gohm | Contact Rating (Current) | :1A |
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.1 mm |
| Weight | 0.008 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic | Length - Overall | 29.9 mm |
| Mounting Feature | Without | Primary Material | IndustrialRectangular |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 20 | Contact Termination | :IDC / IDT |
| Number of Positions | 20 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Feed Through; Polarizing Key, Strain Relief | Polarity | :Bump/Clip |
| CAD Drawing | 3D CAD Model | Manufacturer | 622Series |
| Product Type | Socket Headers | Connection Type | Ribbon Cable |
Environmental
| Mating Cycles | :200 | Operating Temperature | - 55 C to + 125 C |
Documents & Media
Similar Parts
1658527-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 622 20-POS 20 way IDC bump polarised socket Headers & Wire Housings IDC FSKT S 20 30AU PL Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY 20wayIDCbumppolarisedsocket Multipole socket DIN 41651 20P, 1658527-8, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2041LF FEM SOCKT,LEAD FREE
5102154-4
te connectivity / amp

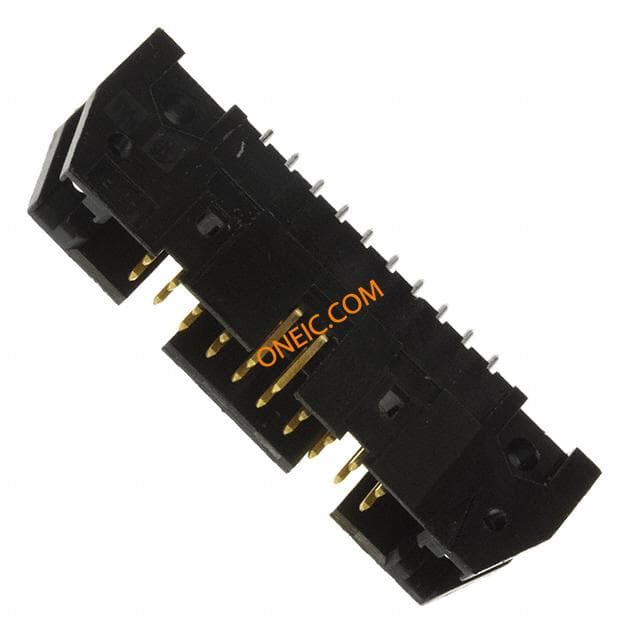

Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 GOLD Header,UniversalEjectionPin Headers & Wire Housings 20 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM Header;UniversalEjectionPin;20;0.100x0.100in.;Vertical(PCB);4-Sided Pin header DIN 41651 20P, 5102154-4, TE Connectivity A/L UNIV HDR 20P VERT
5111448-4
te connectivity / amp
Conn IDC Connector M 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 20POS UNIV I/O W/EARS Ribbon cable conn.male,20 way,2.54mm,blk Headers & Wire Housings 020 UNIV I/O 30DP SLOT Conn IDC Connector M 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 20PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 20WAY RIBBONCONN.MALE,20WAY TE Connectivity AMP-LATCH 系列 2行 20路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 020 UNIV I/O 30DP SLOT
2-1761605-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR IDC P 20 RA .062 Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 20WAY 20wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA BLUE
2-1761607-7
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 20POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 20P RA LARGE LATCH Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 20WAY 20waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA LG LAT
3421-6620
3m interconnect solutions

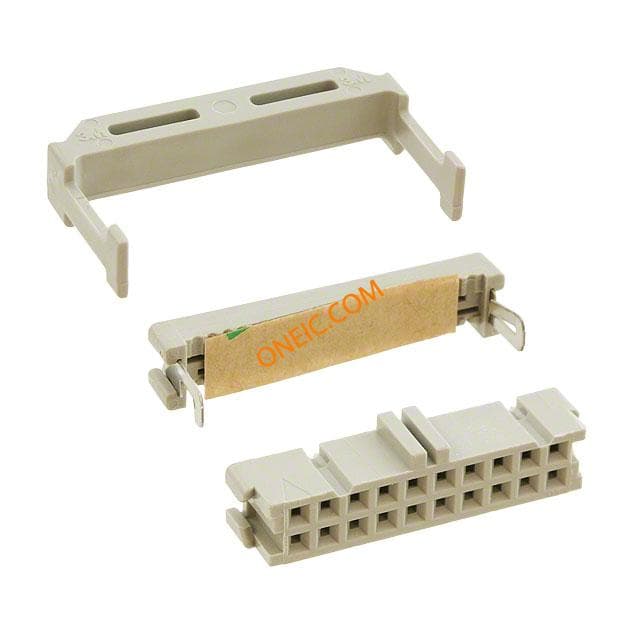

Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 20POS OPEN END 30AU 20way bump polarised skt w/strain relief Headers & Wire Housings 20P IDC SOCKET SOCKET, IDC, 20WAY Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating,USlot) 3M 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器
