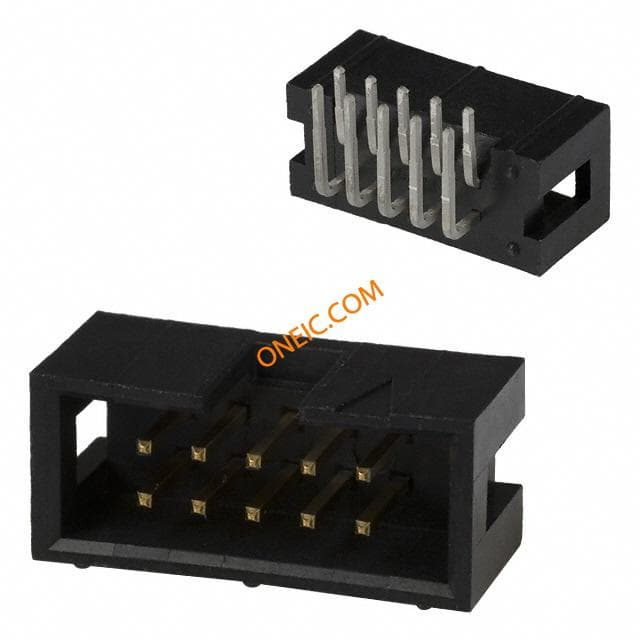

2-1761605-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 10POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 10P RA BLUE Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P RA BLUE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Voltage Rating | 250 V ac |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1A |
| Insulation Resistance | :1Gohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Blue | Depth | 12.18 mm |
| Pitch | 2.54 mm | Height | 9.22 mm |
| Weight | 0.002 | Material | :Glass Reinforced Thermoplastic |
| Packaging | Bulk | Shrouding | Yes |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center |
| 2nd Connector | Without | Contact Shape | Square |
| Housing Color | Blue | Mounting Type | Right Angle |
| Connector Type | Pin Header | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | 4-Sided | Profile (W x H) | Low |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 3.81 [0.150] | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Mating Orientation | With |
| Number of Contacts | 10 | Contact Termination | :Solder |
| Number of Positions | 10 | Mounting Hole Diameter | :0.9mm |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 2.60 [0.102] |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :PC Board |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMP LATCH | Polarity | :Bump |
| Manufacturer | AMP-LATCH | Product Type | Headers |
| Other Specifications | Without | Number of Positions Loaded | All |
Environmental
| Mating Cycles | :200 | Temperature Rating | Standard |
| Operating Temperature | -65C to 105C | ||
