点击放大查看
1658527-3
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 10 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 622 SERIES Ribbon cable conn.rcpt.10way,2.54mm,blue Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY RIBBONCONN.RCPT.10WAY TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 622-1030LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Other Names | 16585273 | Standard Package | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Dielectric Strength | :1000V/m |
| Current Rating (Max) | :1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 0.100" (2.54mm) | Height | 12.1 mm |
| Weight | 0.0152 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | Without |
| Wire Gauge | 26-28 AWG, Stranded or Solid | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center & Military |
| 2nd Connector | Without | Housing Color | Blue |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | 622 Series | Contact Finish | Gold (30) |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic |
| Length - Overall | 17.2 mm | Mounting Feature | Without |
| Cable Termination | IDC | Color - Connectors | :Blue |
| Mating Orientation | With | Number of Contacts | 10 |
| Contact Termination | :IDC / IDT | Number of Positions | 10 |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | Receptacle |
| Features | Feed Through, Polarizing Key | CAD Drawing | 3D CAD Model |
| Connection Type | Ribbon Cable | ||
Environmental
| Operating Temperature | :105°C | ||
Similar Parts
2-1761603-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings PIN HEADER 10 POS VERT LOW PROFILE Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:10; straight; THT; gold plated; 2.54mm Pin header DIN 41651 10P, 2-1761603-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 10P VERT BLUE
5104338-1
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,PIN,AMP-LATCH,10POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 10P VERT HT
2-1761609-3
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 10POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 10 POS R/A LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Ejectorheader,10way,2.54mm,90°,blue TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 10P RA SHT LAT
1761607-3
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 10POS Headers & Wire Housings 100X100 HDR 2X005P R/A LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 10P RA LG LAT
5103309-1
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 10P low profile Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM Header;Pin;Vertical;CopperAlloy;Thermoplastic;10;0.100x0.100in.;Gold Pin header DIN 41651 10P, 5103309-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 10P VERT BLACK
2-1761606-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 10POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 10 POS VERT LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,VERTICAL,BLUE Pin Header DIN41651 10P, 2-1761606-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P VERT LG LAT BLUE
5102321-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings UNIV HDR 10P VERT .100 LRG LATCH 30AU Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P VERT LG LAT
1-111504-4
te connectivity / amp
Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 10POS UNIV I/O NO EARS TE Connectivity 1-111504 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 10 UNIV I/O NO EARS LEAD FREE Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 10PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 10WAY RIBBONCONN.FEMALE,10WAY TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 电缆安装 公 印刷电路板管座 10 UNIV I/O, NO EARS,LEAD FREE
5499923-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X005P VRT EJE Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P VERT LG LAT
5102322-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X005P R/A EJE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 10POS, 2ROW A/L UNIV HDR 10P RA LG LAT
5499345-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 10P HEADER GOLD 15u double row Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA SHT LAT
2-5499141-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS R/A POLAR GOLD Headers & Wire Housings UNIV HDR 10P RA BLUE LARGE LATCH Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 10WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA LG LAT BLU
5102154-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings 10 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM Header;UniversalEjectionPinHeader;10;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 10P, 5102154-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P VERT
5102160-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 10 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,RIGHTANGLE Pin header DIN 41651 10P, 5102160-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA
1761609-3
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 10POS Headers & Wire Housings 100X100 HDR 2X005P R/A LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P RA SHT LAT
2-5499206-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 10P VT BLU LARGE LATCH Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY 10waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P VERT LG LAT B
5102159-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 10P R/A HEADER Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P RA
1-111446-4
te connectivity / amp
Conn IDC Connector PL 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 10POS 30AU NO LATCH Ribbon cable conn.male,10 way,2.54mm,blk Headers & Wire Housings 100X100 PLG 2X05P Conn IDC Connector PL 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 10PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 10WAY CONNECTOR,PLUG,INIVERSALI/O,AMP-LATCH,10POSITION,TERMINATETORIBBONCABL AMP-Latch Series 10 Position Gold (30) Universal I/O Without Mounting Ears TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 10 UNIV I/O, NO EARS,LEAD FREE

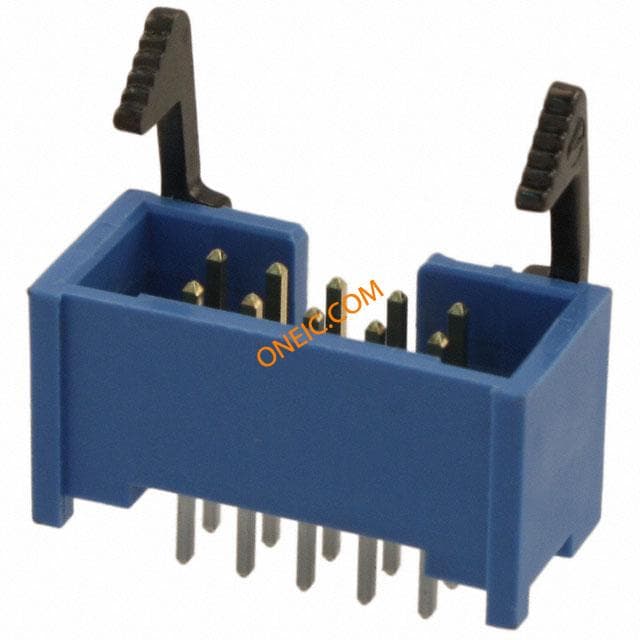

2-1761608-3
