N2510-5002RB
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole 10P FOUR WALL HEADER 3M 2500 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 10P R/A SOLDER TAIL HIGH TEMP HEADER, RIGHT ANGLE, 10WAY Socket; IDC; male; PIN:10; angled 90°; THT; gold plated; 2A; 2.54mm Pin header DIN 41651 10P, N2510-5002RB, 3M 3M 2500 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔 |
| Category |
Business
| MOQ | 784 | Unit Pack | 784 |
| Part # Aliases | 05111162721 80400031292 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :3M - 2500 Series | Voltage Rating | 1000V |
| Voltage - Working | :350V | Contact Resistance | :20mohm |
| Current Rating (Max) | 5A | Insulation Resistance | :1000Mohm |
Mechanical
| Depth | 12.44 mm | Pitch | 2.54 mm |
| Height | 8.59 mm | Weight | 0.002 |
| Cable Exit | NO | Orientation | angled 90° |
| Termination | Solder | Contact Type | FEMALE |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54mm |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | male | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Length - Overall | 20.02 mm |
| Package Quantity | 784 | Connector - Cable | socket |
| Termination Style | IDC | Color - Connectors | :Black |
| Number of Contacts | 10 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 10 | Mounting Hole Diameter | :0.89mm |
| Contact Material - Plating | GOLD | 1st Connector Mounting Feature | 2x5 |
Product Info
| Spg | 784 | Type | Shrouded Header |
| Gender | HDR | Series | 2500 |
| Matchcode | N25105002RB | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Units | 1 |
| Standard Leadtime | 6 weeks | Other Specifications | NO |
Environmental
| Mating Cycles | 1 | Temperature - Test | :70°C |
| Operating Temperature | -55 TO 105°C | ||
Documents & Media
Similar Parts
2-1761605-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 10POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 10P RA BLUE Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P RA BLUE
8510-4500PL
3m interconnect solutions
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole STRAIGHT BM SOCKET 10P .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 10POS .1" 3M 2.54mm 10 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 10P STRT PLRZD SKT RECEPTACLE, THT, 2.54MM, 2ROW, 10WAY PolarizedBoardmountSocket(10pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:10; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 10路 直 2.54mm节距 通孔 印刷电路板插座, 插座板
3473-6610
3M Electronic Solutions Division

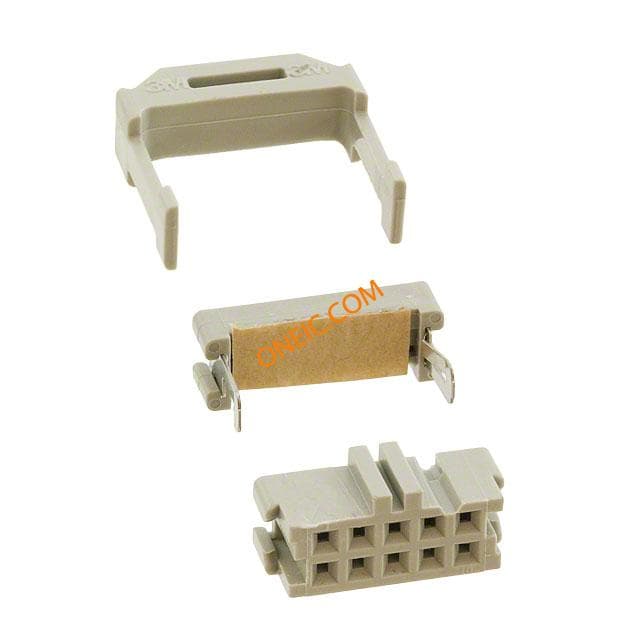

Headers & Wire Housings 10P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 10POS OPEN END SRC 10way bump polarised skt w/strain relief Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount SOCKET, IDC, 10WAY WiremountSocket,.1"x.1",.05"Pitch,10Contact,openend,CenterbumpandMilitary 3M 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器
MC9A22-1034
Avnet, Inc.
HEADER, THT, RIGHT ANGLE, 2.54MM, 10WAY
