104549-6
| Manufacturer | |
| Description | Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS AU Headers & Wire Housings 40 SY50 SURFMNT DRST 576 Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT HDR DRST SHRD |
| Category |
Business
| Tradename | AMPMODU | Other Names | A3254 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 16 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 镍打底镀锡铅 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 VAC |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Plating | Tin-Lead over Nickel | Base Type | 带有 |
| Lock Type | 带有 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Stabilizer | 不带 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Shell Material | 2- 面 |
| Board Thickness | 1.57 | Height (Inches) | 0.435" (11.05mm) |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic Glass Reinforced | Length - Overall | .05 |
| Material - Blade | Copper Alloy | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | SMD | 1st Connector Type | 带罩 |
| Diameter - Outside | .381 mm [ .015 in ] | Number of Contacts | 40 |
| Termination Finish | 带有 | Number of Positions | 40 |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.125" (3.18mm) |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | 30µin (0.76µm) |
| Screw Material - Plating | 铜合金 | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 否 | Contact Finish - Post (Mating) | 哑光 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU System 50 | Features | Board Lock |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Header Assembly | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Ingress Protection | 带罩 | Operating Temperature | -65 – 105 |
Documents & Media
Similar Parts
4-487938-0
te connectivity / amp
Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL ROW FFC & FPC Connectors 040 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR
147378-4
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 40POS DUAL SMD GOLD Board to Board & Mezzanine Connectors 40 SYS50 SMT RCP DR SHD W/O HD 40 SYS50 SMT RCP DR SHD W/O HD
104078-2
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 VERT DUAL 40 SYSTEM 50 RCPT ASSY DRST
104550-5
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL SMD Board to Board & Mezzanine Connectors SYS50 SMT RECEPT 1008 Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Housing Gender = Connector - Receptacle40 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT DRST RCPT

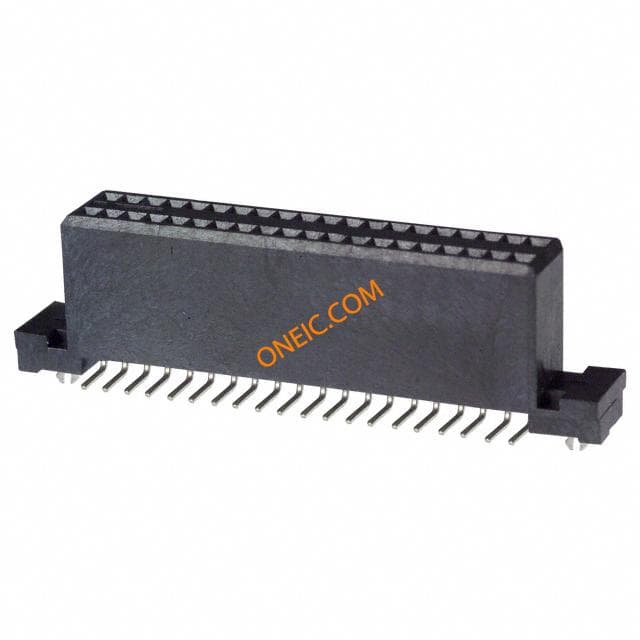

5-104550-5
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" GOLD SMD TE Connectivity 0.5in 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board Board to Board & Mezzanine Connectors 40 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 40WAY, 2ROW ReceptacleVerticlesmt40wayAmpModu TE Connectivity AMPMODU System 50 系列 2行 40路 直 12.7mm节距 表面贴装 印刷电路板插座, 板对板 40 SYS50 SURFMNT DRST RCPT SN

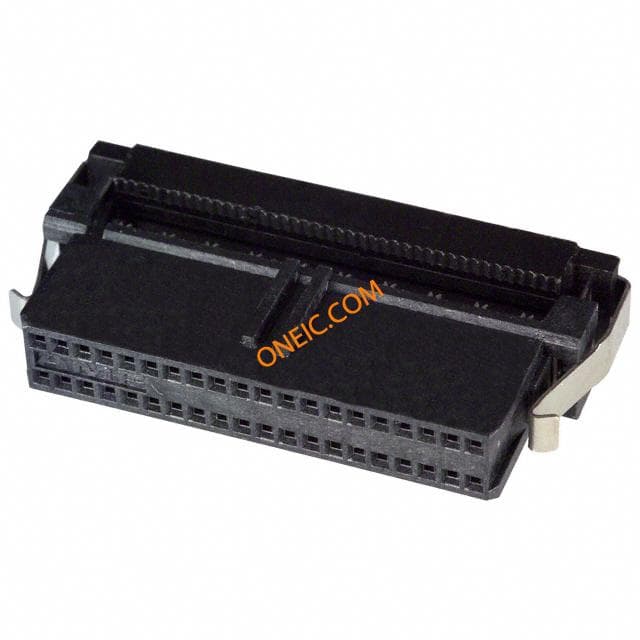

111196-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050X.100 IDC Headers & Wire Housings RECPT SYSTEM 50 600 Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 RCPT SYSTEM 50 30 DPLX

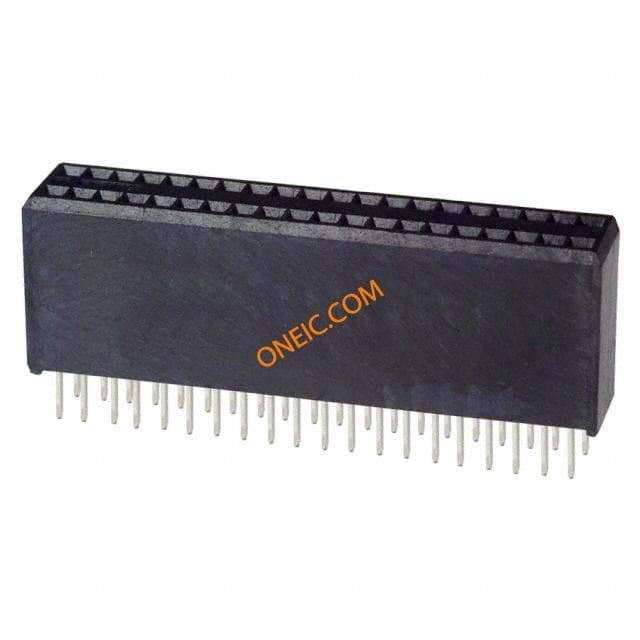

5-104078-2
