点击放大查看
5-104550-5
| Manufacturer | |
| Description | Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" GOLD SMD TE Connectivity 0.5in 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board Board to Board & Mezzanine Connectors 40 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 40WAY, 2ROW ReceptacleVerticlesmt40wayAmpModu TE Connectivity AMPMODU System 50 系列 2行 40路 直 12.7mm节距 表面贴装 印刷电路板插座, 板对板 40 SYS50 SURFMNT DRST RCPT SN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 16 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 V ac | Voltage - Supply | 30 |
| Voltage - Breakdown | 500 | Insulation Resistance | 5,000 |
| Voltage - Supply (Min) | 30VAC | ||
Mechanical
| Color | Black | Depth | 5.02 mm |
| Pitch | 1.27 mm | Height | 9.47 mm |
| Weight | 0.002 | Plating | Tin |
| Packaging | Tube | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic Glass Reinforced | Material - Blade | Copper Alloy |
| Package Quantity | Tube | Termination Style | SMD |
| Height Above Board | 0.370" (9.40mm) | Number of Contacts | 40 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 40 |
| Contact Finish Thickness | 30µin (0.76µm) | Height Stacking (Mating) | 0.470", 0.515" (11.94mm, 13.08mm) |
Product Info
| Type | Socket Strip | Gender | RCP |
| Series | AMPMODU SYSTEM 50 | Features | Board Lock |
| Manufacturer | AMP | Product Type | Receptacle Assembly |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Range | -65 â +105 | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
104549-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS AU Headers & Wire Housings 40 SY50 SURFMNT DRST 576 Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT HDR DRST SHRD
5-104666-3
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Headers & Wire Housings 40SYSTEM 50 HDR DRST SHRD SN .050 X .100 AMPMODU System 50 CONN HEADER 40POS DUAL T/H GOLD Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Header - Pin40 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 HDR DRST SHRD SN

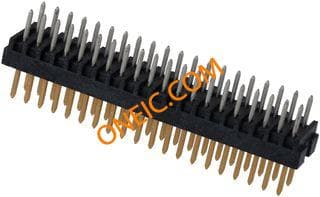

6-103916-1
