104078-2
| Manufacturer | |
| Description | Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 VERT DUAL 40 SYSTEM 50 RCPT ASSY DRST |
| Category |
Business
| Other Names | A3218 | Standard Package | Rail / Tube |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Approved Countries | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 30 | Resistance - Input | 5000 |
| Voltage - Rated AC | 30 | Voltage - Breakdown | 500 |
| Current Rating (Max) | 4 | Insulation Resistance | 5,000 |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Height | 8.89 mm [ .35 in ] | Packaging | Tube |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Flange Feature | Without |
| Mounting Style | Thru Hole | Number of Rows | 2 |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | 插座 | Height Above Board | 0.350" (8.89mm) |
| Number of Contacts | 40 | Number of Positions | 40 |
| Compatible Shell Size | 插头组件 | Contact Length - Post | 2.54 mm [ .1 in ] |
| Surface Mount Land Size | Without | Termination Post Length | 2.54 [0.100] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | RCP |
| Series | AMPMODU | Manufacturer | AMP |
| Product Type | Receptacle Assembly | Assembly Configuration | Board Standoff |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Range | -65 â +105 | Operating Temperature | -65 – 105 |
Similar Parts
104549-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS AU Headers & Wire Housings 40 SY50 SURFMNT DRST 576 Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT HDR DRST SHRD
5-104069-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 40POS .050" R/A GOLD Header 40 way AmpModu system 50 Headers & Wire Housings 40 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, R/A, 40WAY, TH 40sys50hdrdrrashrdsn TE Connectivity AMPMODU System 50 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 40 sys 50 hdr drra shrd sn
104069-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 40POS AU Headers & Wire Housings 40 SYS 50 DRRA SHRD 480 Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 HDR DRRA SHRD

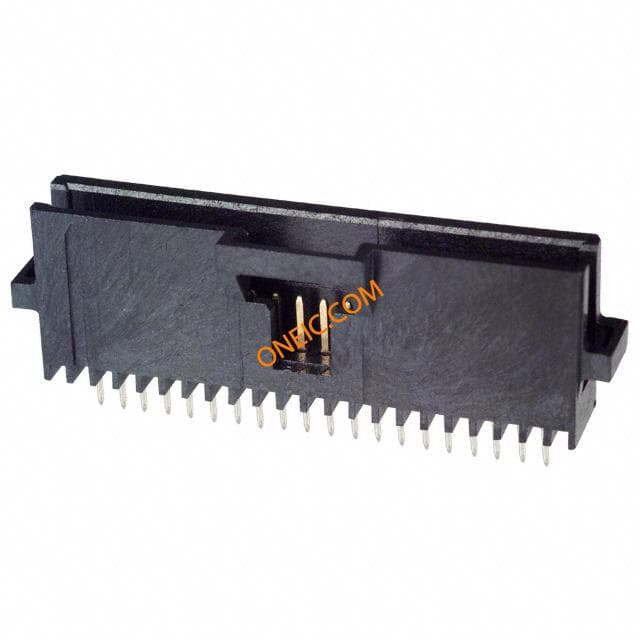

5-104068-4
