4-487938-0
| Manufacturer | |
| Description | Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL ROW FFC & FPC Connectors 040 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR |
| Category |
Business
| Standard Pack | 1 | Product Category | FFC & FPC Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 100V | Voltage - Supply | 100 |
| Resistance - Input | 5000 | Voltage - Clamping | 300 |
| Connector Impedance | 制动器窗口 | Voltage - Breakdown | 300 |
| Current Rating (Max) | 1.5A | Insulation Resistance | 5,000 |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | Flexible Flat Conductor Cable |
| 2nd Connector | With | Edge Contacts | No |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Housing for Female Contacts | Mounting Style | Cable |
| Number of Rows | 2 | Connector Usage | Receptacle |
| Insertion Force | Normal | Locking Feature | Detent Windows |
| Housing Material | Thermoplastic | Length - Overall | 1.27 [0.050] |
| Package Quantity | 300 | Panel Mount Type | 不带 |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.08mm |
| Number of Contacts | 40 | Number of Positions | 40 |
| Mounting Hole Diameter | 不带 | Switch Actuation Level | ZIF |
Product Info
| Note | Note 1: Plain housings are side-to-side stackable on either straight or right-a | Type | Housing |
| Gender | RCP | Features | Detent Lock |
| Product Type | Housing | Flat Flex Type | FFC |
Environmental
| Temperature Range | -55 â +105 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
Similar Parts
104549-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS AU Headers & Wire Housings 40 SY50 SURFMNT DRST 576 Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT HDR DRST SHRD

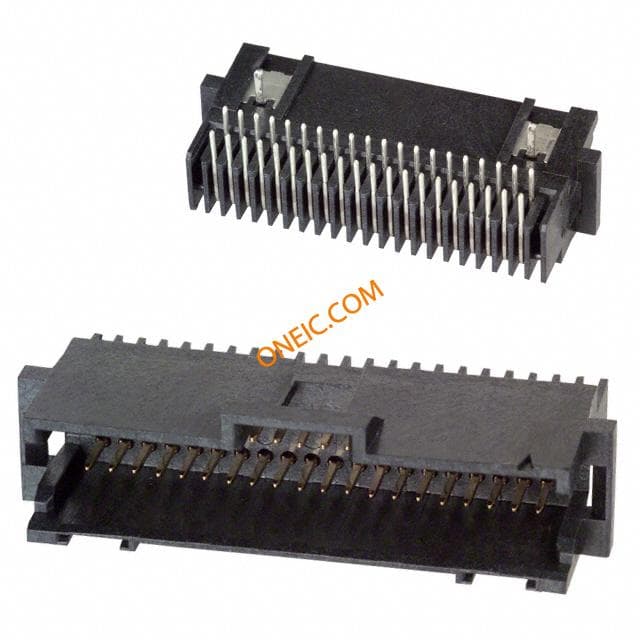

5-104069-6
