1-102699-9
| Manufacturer | |
| Description | Conn Shrouded Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings ACTION PIN VERT 40P dual .066 end 40 MODII HDR DRST SHRD A/PIN 40 MODII HDR DRST SHRD A/PIN Search Keywords:board to board, AMPMODU, pcb connectors, |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 50 |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 带有 |
| Packaging | Tray | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 0.100" (2.54mm) | Termination | Press Fit |
| Contact Type | Male Pin | 1st Connector | 否 |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Detent Lock |
| Mounting Style | 带有 | Number of Rows | 2 |
| Shell Material | 4- 面 | Insert Material | 铜合金 |
| Contact Material | Copper, Nickel, Tin | Housing Material | Thermoplastic |
| Mounting Feature | 作用/符合标准的尾 | Package Quantity | 50 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 40 |
| Termination Finish | 带有 | Number of Positions | 40 |
| Length - Post (Mating) | 8.13 mm | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.320" (8.13mm) | Termination Post Length | 6.35 mm |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| Shell Size, Connector Layout | 1.68 mm [ .066 in ] | 1st Connector Mounting Feature | 否 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Ingress Protection | 带罩 |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 2.36 – 3.18 mm [ .093 – .125 in ] |
| Operating Temperature - Junction | 是 | ||
Similar Parts
2-535598-0
te connectivity / amp
Conn Socket Strip RCP 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 40POS .100 DUAL T/H AU Headers & Wire Housings 40 MODIV VRT DR CE RCPT ASSY 40 MODIV VRT DR CE RCPT ASSY 40 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
1-102394-8
te connectivity / amp
Conn Housing RCP 40 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT .100 IDC 40POS DL Headers & Wire Housings 40P RECEPTACLE Conn Housing RCP 40 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 AMP MODU MT HSG DR .100CL
2-534206-0
te connectivity / amp
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 40POS .100 VERT DUAL Headers & Wire Housings REC 2X20P VRT T/H Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 40Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, CONNECTOR, RECEPTACLE, THT, 40WAY ReceptacleAssembly;40;Dual;2;750;12Milliohms;Glass-FilledPolyester 40 MODII VRT DR CE 100/115

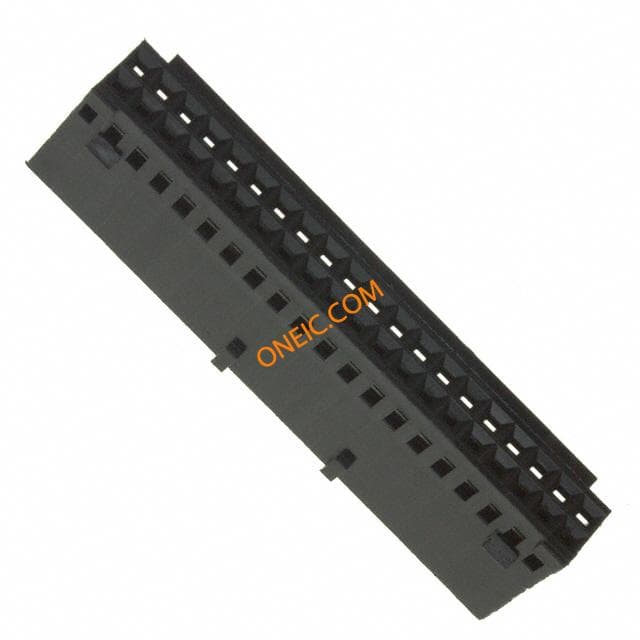

3-87631-5
