1-87733-1
| Manufacturer | |
| Description | Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 40POS .100 POL W/STR Headers & Wire Housings 40 MODIV HSG W/STR R .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 40Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 MODIV HSG W/STR RLF DR MRKD |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 50 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Detent Latching |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 6.1 mm [ .24 in ] | Length | 50.8 mm [ 2 in ] |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Wire Gauge | 20-32 AWG |
| Row Spacing | 0.100" (2.54mm) | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Insert Material | 磷青铜 | Housing Material | Thermoplastic |
| Package Quantity | 50 | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 40 |
| Contact Termination | Crimp | Number of Positions | 40 |
| Mounting Hole Diameter | 带有 | Static Discharge Shielding | 带有 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Features | Strain Relief | Product Type | Receptacles / Sockets - Housings |
| Number of Taps/Steps | 2 | Other Specifications | 是 |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
6-103166-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings HDR 2X20P R/A T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded20 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF
6-103168-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL
6-102618-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 15AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded40 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL
6-103169-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings ACTION PIN VERT 40P dual .150 end Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded40 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL
102570-1
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 15AU Headers & Wire Housings 40 MODII HDR DRRA SH 160 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD .100CL
1-103167-7
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR 40P SHRD R/A .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU 40 MODII HDR DRRA SHRD .100CL
5-102570-1
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 15AU Headers & Wire Housings 100X100 HDR 2X20P R/A .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF
6-102617-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 15AU Headers & Wire Housings 40 HDR DRRA SHRD Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF
6-102619-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 15AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded40 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL
1-103166-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings SHROUDED RA DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD .100CL
1-102618-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 15AU Headers & Wire Housings SHROUDED VER DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL
1-103165-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 40POS DUAL R/A .100 Headers & Wire Housings 40 MODII HDR DRRA 3/4SHRD .100 40 MODII HDR DRRA 3/4SHRD .100

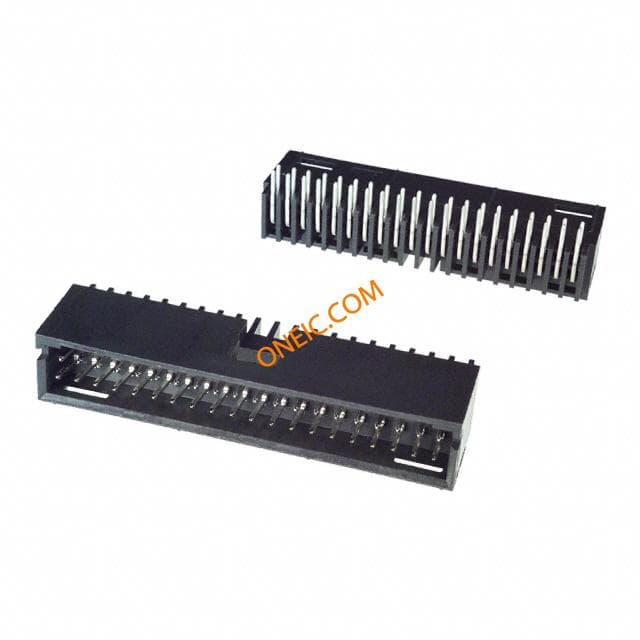

6-87579-7
