点击放大查看
1-102394-8
| Manufacturer | |
| Description | Conn Housing RCP 40 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT .100 IDC 40POS DL Headers & Wire Housings 40P RECEPTACLE Conn Housing RCP 40 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 AMP MODU MT HSG DR .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 VAC | Contact Resistance | 15 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC) |
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 6.1 mm |
| Length | 50.8 mm [ 2 in ] | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Mounting Style | Wire | Number of Rows | 2 |
| Housing Material | Thermoplastic | Length - Overall | 50.8 mm |
| Package Quantity | 60 | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 40 |
| Contact Termination | IDC | Number of Positions | 40 |
| Compatible Shell Size | 连接器 | Mounting Hole Diameter | 不带 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MT |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
6-103166-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings HDR 2X20P R/A T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded20 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF

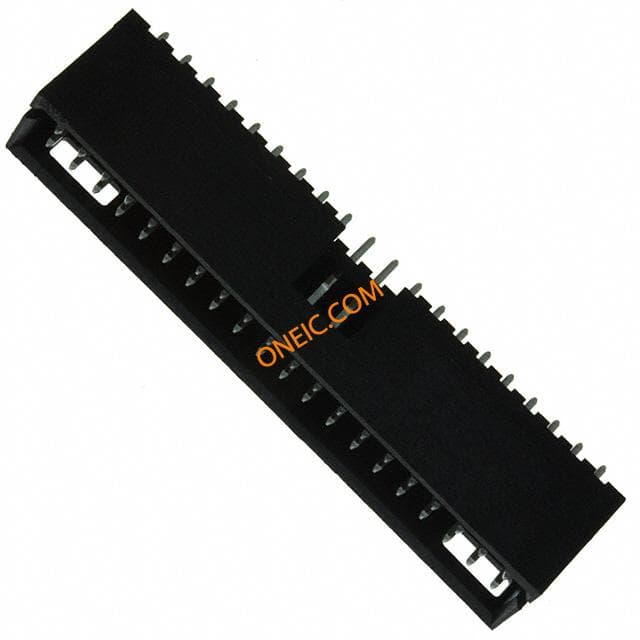

6-87589-6
