3-87631-5
| Manufacturer | |
| Description | Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 40POS .100 POL DUAL Headers & Wire Housings 40P .1 MODIV HOUSNG Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 40Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 MODIV HSG COMP DR .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Detent Latching |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VAC |
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 6.1 mm [ .24 in ] |
| Length | 50.8 mm [ 2 in ] | Lock Type | 带有 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Insert Material | 铍铜 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 50.8 mm |
| Package Quantity | 1 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 40 |
| Contact Termination | Crimp | Number of Positions | 40 |
| Compatible Shell Size | 公端 | Mounting Hole Diameter | 带有 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Product Type | Receptacles / Sockets - Housings | Number of Taps/Steps | 2 |
| Other Specifications | 否 | Application Specifics | Board to Board |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
6-103168-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL
1-104353-7
te connectivity / amp
Conn Unshrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole CONN HDR BRKWAY 40POS R/A DUAL
102570-1
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 15AU Headers & Wire Housings 40 MODII HDR DRRA SH 160 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD .100CL
1-104350-7
te connectivity / amp
Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 40POS DUAL 30AU Headers & Wire Housings 40 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = StandardSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST B/A W/HD
1-103167-7
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR 40P SHRD R/A .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU 40 MODII HDR DRRA SHRD .100CL
1-103166-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings SHROUDED RA DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD .100CL
1-103165-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 40POS DUAL R/A .100 Headers & Wire Housings 40 MODII HDR DRRA 3/4SHRD .100 40 MODII HDR DRRA 3/4SHRD .100

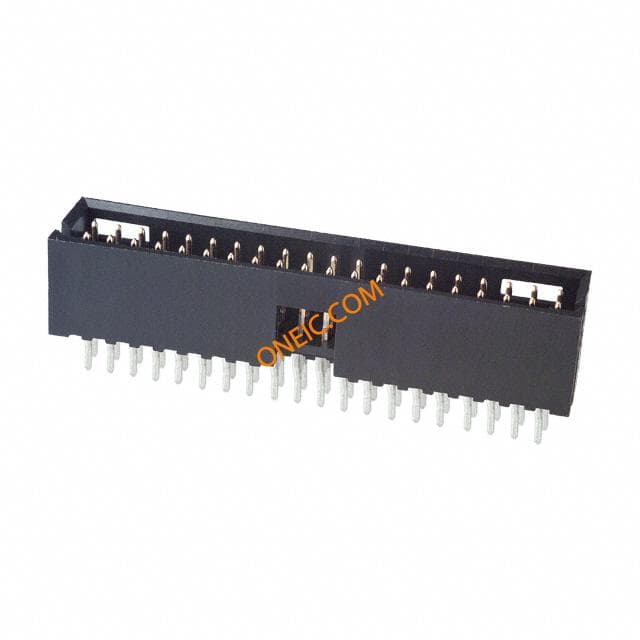

6-102699-9
