点击放大查看

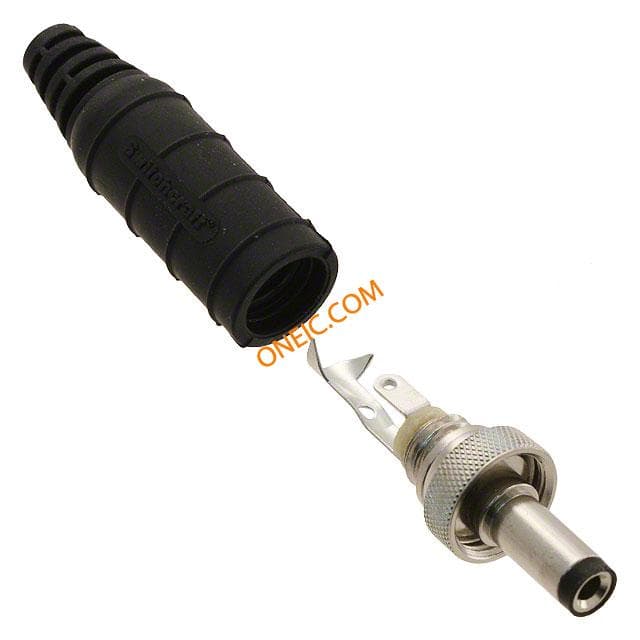

761KS12
| Manufacturer | |
| Description | Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 5.5MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.125-0.150CableODRange,IP68/ Switchcraft 761KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68 |
| Category |
Business
| Product | Plugs | Other Names | SC1381 |
| Product Category | DC Power Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Voltage Rating | 30 V | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Weight | 0.001 |
| Diameter | 12.7 | Packaging | Bulk |
| Shielding | Unshielded | Termination | Solder Eyelet(s) |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Nickel |
| Mounting Style | Through Hole | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 57.1 |
| Termination Style | Solder | Number of Contacts | 2 |
| Contact Termination | :Solder | Contact Finish Thickness | 2.5 mm |
| Plug/Mating Plug Diameter | 2.5mm ID, 5.5mm OD | Contact Material - Plating | Nickel |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Power | Gender | PL |
| Series | Sealed Power Plugs | Features | IP68, Cable Clamp, Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Does Not Contain Switch |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | ||
Documents & Media
Similar Parts
L712RAS
Switchcraft
Conn Power F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN PWR JACK R/A 2.5MM SEALED DC Power Connectors Pwr Jack Sealed IP68 2.5mm R/A PC Mt lckg POWER JACK, 2.5MM, IP68, R/A PCB SealedPowerJack,centerpin0.10,RightAnglePC,IP68/NEMA250 Switchcraft 直角 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68
761KS12
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 5.5MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.125-0.150CableODRange,IP68/ Switchcraft 761KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68

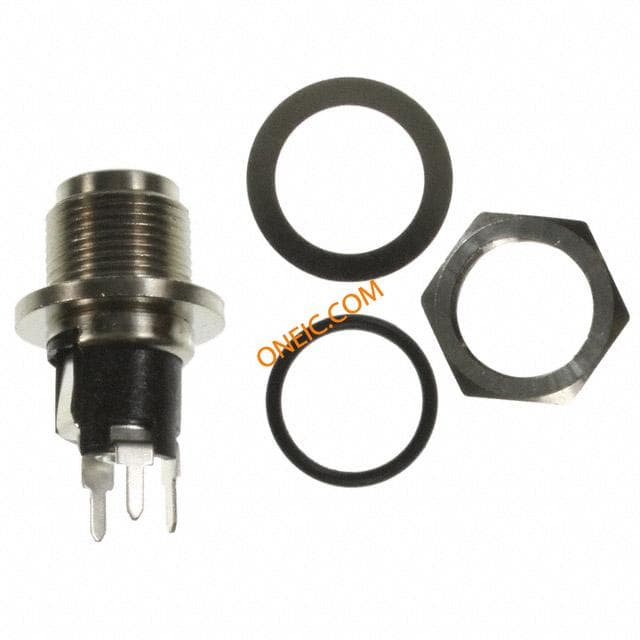

PCL712AS
