L712AS
| Manufacturer | |
| Description | Conn Power F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN PWR JACK 2.5MM SEALED 2.5mm Straight Panel Mount DC Power Socket 5A, 30V dc, Silver Plate, IP68 DC Power Connectors Pwr Jack Sealed IP68 2.5mm lckg Solder POWER JACK, 2.5MM, IP68, SOLDER LUG SealedPowerJack,centerpin0.10,Solderlugs,IP68/NEMA250 Switchcraft 直向 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68 |
| Category |
Business
| Product | Jacks | Other Names | SC1390 |
| Product Category | DC Power Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Voltage Rating | 12VDC | Current Rating (Max) | 5A |
Mechanical
| Color | Silver | Depth | 16.5 |
| Length | 26.3mm | Weight | 0.001 |
| Packaging | Bulk | Shielding | Unshielded |
| Termination | Solder Lug | Pin Diameter | 2.5mm |
| Housing Color | Black | Mounting Type | Panel Mount |
| Connector Type | Jack | Contact Finish | Silver |
| Mounting Style | Through Hole | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 26.3 |
| Termination Style | Solder | Number of Contacts | 3 |
| Contact Termination | :Solder | Contact Finish Thickness | 2.5 mm |
| Plug/Mating Plug Diameter | 2.5mm ID, 5.5mm OD | Contact Material - Plating | Nickel |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Power | Gender | F |
| Series | Sealed Power Jacks | Features | IP68, Mounting Hardware, Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Single Switch, Normally Closed |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | ||
Environmental
| Seal Rating | IP68 | NEMA Frame Size | :IP68 |
Documents & Media
Similar Parts
761KS15
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM Straight DC Power Plug, Cable Mount, Length 57.1mm, Nickel Plate DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 3.8-4.4MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.150-0.175CableODRange,IP68/ Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀镍触芯, IP68
JCAP
Switchcraft
Connector Accessories Power Jack Sealed Cap Thermoplastic Elastomer Black POWER JACK SEAL CAP Switchcraft JCAP Series Jack Cover For Use With Power Connector JCAP DC Power Connectors Power Jack Seal Cap DUST CAP, FOR POWER JACK PowerJackSealCap Switchcraft 系列, 型 插孔盖, 使用于电源连接器
761KS12
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 5.5MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.125-0.150CableODRange,IP68/ Switchcraft 761KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68

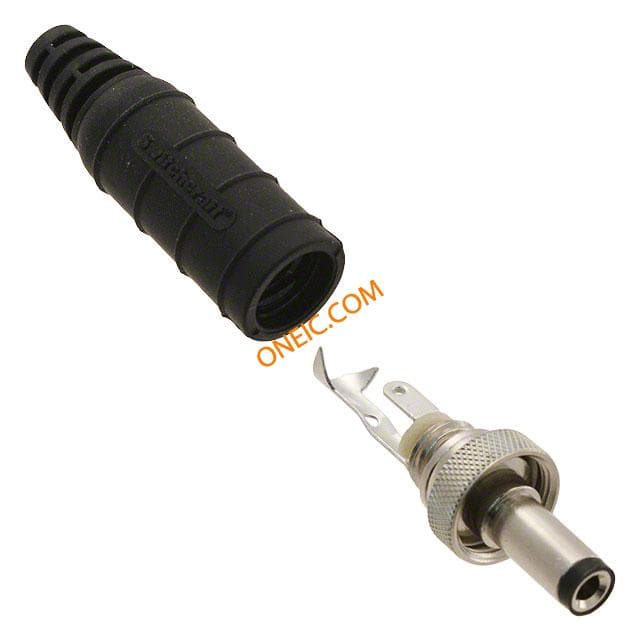

761KS17
