JBXER1G05FSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Socket Receptacle Solder Panel Mt Sz 1 CONN RCPT 5POS PANEL MT SOLDER JBXrecept1-05red |
| Category |
Business
| Tradename | JBX | Product Category | Circular Push Pull Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 9A |
Mechanical
| Packaging | Bulk | Shell Size | 1 |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Termination Style | Solder |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXFD1G05MCSDSMR
Souriau
Circular Push Pull Connectors 5P Strt Pin Plug Crimp Shell Size 1 Conn Push-Pull M 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS STRAIGHT CRIMP JBXPLUGFD
JBXFC1G05MSSDSMR
Souriau
Circular Push Pull Connectors 5P R/A Pin Plug Solder Shell Size 1 CONN PLUG 5POS RA PIN SOLDER JBXPLUGFC
JBXFD1G05MSSDSR
Souriau
Circular Push Pull Connectors 5P Strt Pin Plug Solder Shell Size 1 CONN PLUG 5POS STRAIGHT SOLDER JBXPLUGFD
JBXFD1G05MSSDSMR
Souriau
Circular Push Pull Connectors 5P Strt Pin Plug Solder Shell Size 1 Conn Push-Pull M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS STRAIGHT SOLDER JBXPLUGFD
JBX1RIN
Souriau
Circular Push Pull Connectors Insulating Washer JBX Size 1, Black INSULATING WASHER CONN WASHER SIZE 1 INSULATE BLK

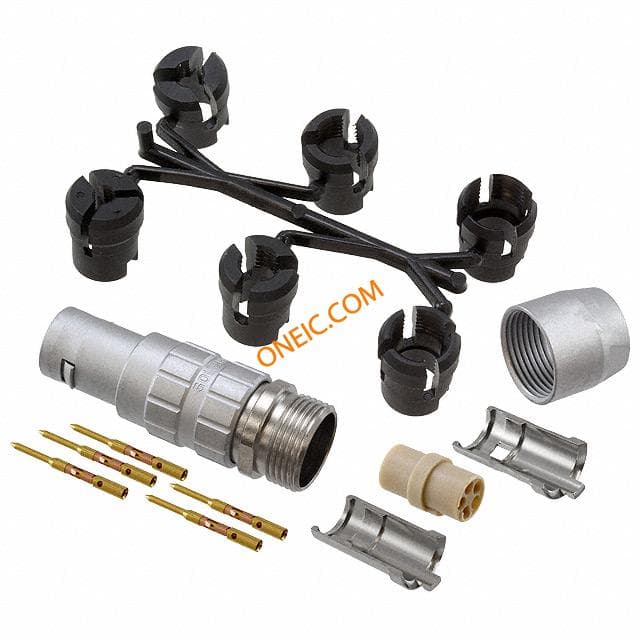

JBXFD1G05MCSDSR
