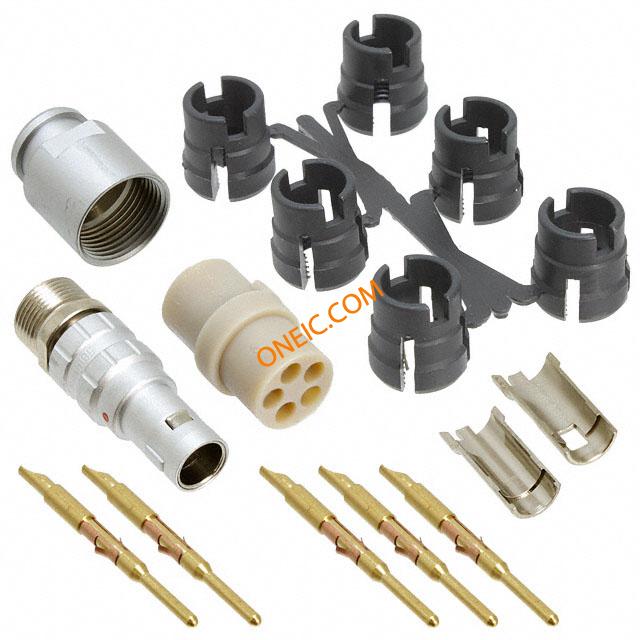

JBXFD1G05MSSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Strt Pin Plug Solder Shell Size 1 Conn Push-Pull M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS STRAIGHT SOLDER JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1553 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 9A |
Mechanical
| Diameter | 12 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 1 |
| Wire Gauge | 24 | Orientation | G |
| Shell Style | Plug | Termination | Solder |
| Contact Type | 5Signal | Mounting Type | Cable Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Hybrid |
| Contact Material | Brass | Length - Overall | 45 |
| Termination Style | Solder | 1st Contact Gender | M |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
