JBXFC1G05MSSDSMR
| Manufacturer | |

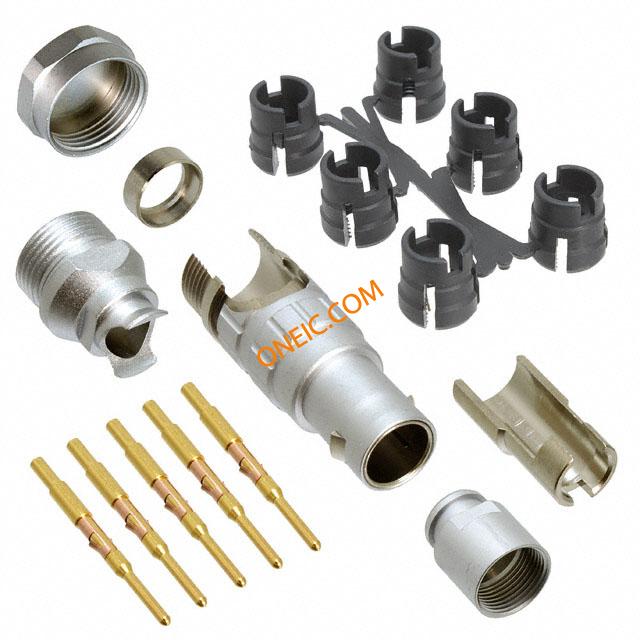

| Description | Circular Push Pull Connectors 5P R/A Pin Plug Solder Shell Size 1 CONN PLUG 5POS RA PIN SOLDER JBXPLUGFC |
| Category |
Business
| Other Names | SOU1815 | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 9A |
Mechanical
| Packaging | Bulk | Orientation | G |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Number of Positions | 5 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Features | Cable Clamp, Shielded | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
