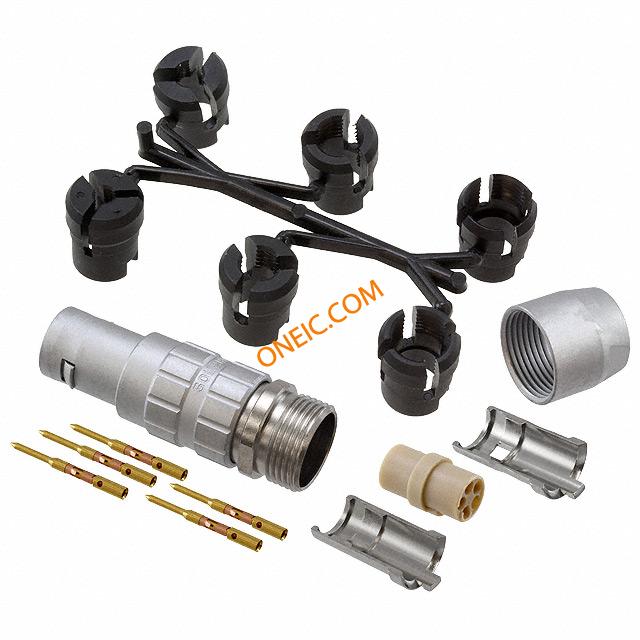

JBXFD1G05MCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Strt Pin Plug Crimp Shell Size 1 CONN PLUG 5POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL1,5P,CRIMP24-20 |
| Category |
Business
| Tradename | JBX | Other Names | SOU1697 |
| Product Category | Circular Push Pull Connectors | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 9A |
Mechanical
| Size | 1 | Packaging | Bulk |
| Shell Size | 1 | Orientation | G |
| Shell Style | Plug | Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Termination Style | Crimp | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | CablePlug | Series | JBX |
| Features | Cable Clamp, Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
