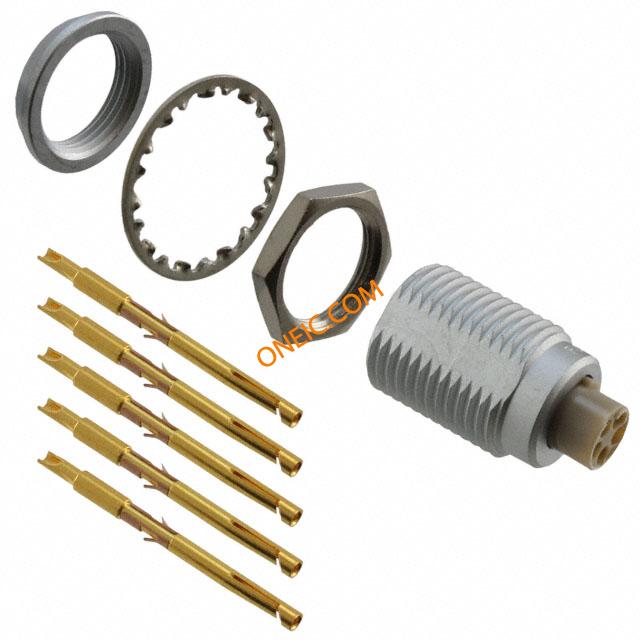

JBXEA1G05FSSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Socket Receptacle Solder Shell Size 1 Conn Push-Pull SKT 5 POS Solder ST Panel Mount 5 Terminal 1 Port Blister CONN RCPT 5POS DOUBLE NUT SOLDER JBXRECEPTACLEEA |
| Category |
Business
| Tradename | JBX | Other Names | SOU1595 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | Yes | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 9A |
Mechanical
| Diameter | 16 mm | Packaging | Blister |
| Cable Exit | No | Shell Size | 1 |
| Wire Gauge | 24 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder |
| Contact Form | 5Signal | Contact Type | 5Signal |
| Mounting Type | Panel Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Hybrid | Contact Material | Copper Nickel |
| Length - Overall | 21 mm | Termination Style | Solder |
| 1st Contact Gender | SKT | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | RF Family/Standard | JBX |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXFD1G05MCSDSMR
Souriau

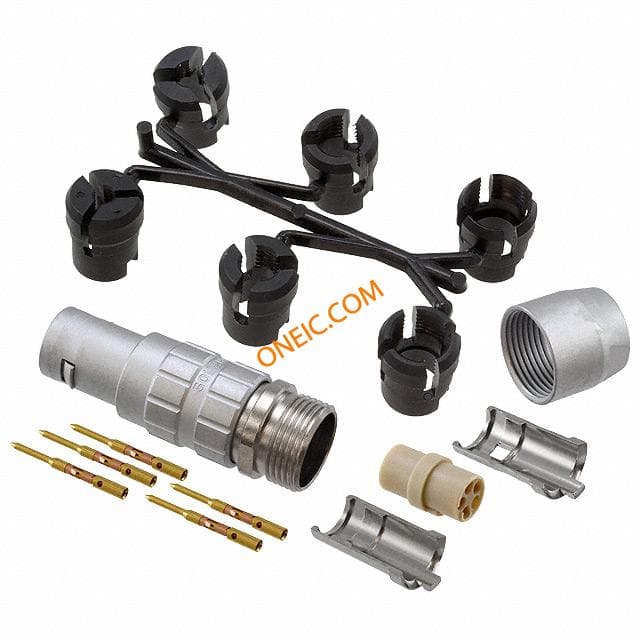

Circular Push Pull Connectors 5P Strt Pin Plug Crimp Shell Size 1 Conn Push-Pull M 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS STRAIGHT CRIMP JBXPLUGFD
JBXFC1G05MSSDSMR
Souriau
Circular Push Pull Connectors 5P R/A Pin Plug Solder Shell Size 1 CONN PLUG 5POS RA PIN SOLDER JBXPLUGFC
JBXFD1G05MSSDSR
Souriau

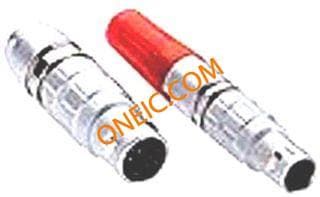

Circular Push Pull Connectors 5P Strt Pin Plug Solder Shell Size 1 CONN PLUG 5POS STRAIGHT SOLDER JBXPLUGFD
