点击放大查看
4796.0000
| Manufacturer | |
| Description | Conn Inlets/Outlets PL 3 POS ST Cable Mount 3 Terminal 1 Port IEC Plug I, Cord Connector CONN PLUG STRAIGHT ENTRY 14AWG C20 Male Straight Cable Mount IEC Connector, Rated At 16A, 250V ac AC Power Entry Modules 4796 APPLIANCE INLET FOR CABLE 16A 70 deg PLUG, 16A, FREE CordPlugAsmbly,16A,250VAC,10Megohms@500VDC,2kV@50Hz,Male Connector: IEC 60320,AC mains; C20 (I); plug; male; for cable; 16A Plug black, 4796.0000, Schurter Schurter C20 电缆安装 直向 插头 IEC 插头, 额定16A, 250 V 交流 |
| Category |
Business
| MOQ | 100 | Product | Inlets |
| Unit Pack | 100 | Other Names | 486-1055 |
| Product Category | AC Power Entry Modules | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | UL,CSA,VDE | Tariff No | 85412900 |
| Leadfree Defin | RoHS-conform | Approval Agency | :CCC |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Current | 16A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Dielectric Strength | :2000V |
| Current Rating (Max) | 16A | Number of Conductors | 3Conductors |
| Insulation Resistance | :10Mohm | Connector - Voltage Input | C20 (I) |
Mechanical
| Weight | 1.058219 oz | AC Outlets | :1 |
| Wire Gauge | #14 | Orientation | straight |
| Termination | :Screw | Jacket Color | Black |
| Mounting Type | Cable Mount | Wire Diameter | 14AWG |
| Cable Diameter | 10mm(Max.) | Connector Type | Plug, Male Pins |
| Mounting Style | Screw | Package / Case | UR/CSA |
| Connector Style | IEC 320-C20 | Fuseholder Type | Drawer Not Required |
| Material - Body | Thermoplastic | Package Quantity | 50 |
| Connector - Cable | C20 | Termination Style | IDC |
| Color - Connectors | :Black | Contact Termination | :Screw |
| Number of Positions | 3 | Material - Insulation | Thermoplastic |
| Wire Gauge or Range - mm2 | 10mm | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 50 | Type | Inlets/Outlets |
| Fused | No | Gender | PL |
| Series | NO | Matchcode | 47960000 |
| Number of Units | 1 | Standard Leadtime | 8 weeks |
Environmental
| Temperature Rating | -25to+70°C | Operating Temperature | - 25 C to + 70 C |
Documents & Media
Similar Parts

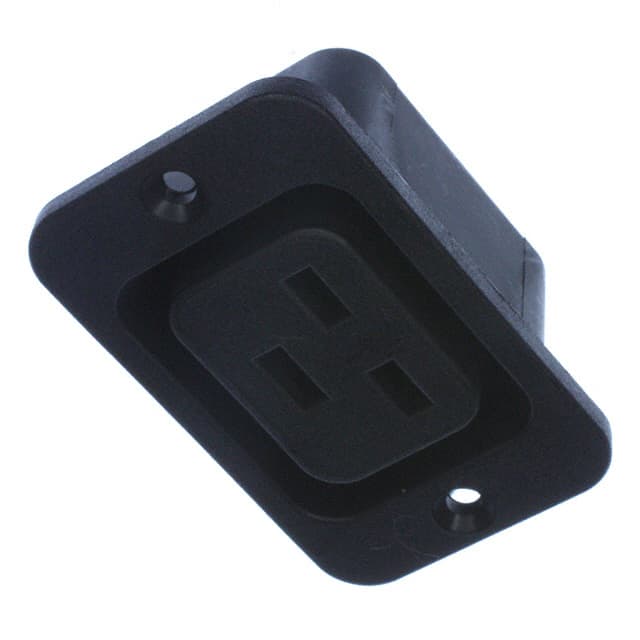

4797.3000
schurter
Conn Inlets/Outlets F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port 4797 G-STECKDOSE 16A MOD PWR ENTRY 20A SCREW-ON SLD Outlets;AC inlets/outlets; solder terminals AC Power Entry Modules Screw-On CONNECTOR, IEC POWER ENTRY, SOCKET, 16A OUTLET, MAINS, 16A, SOLDER Outlets,ACinlets/outlets,solderterminals

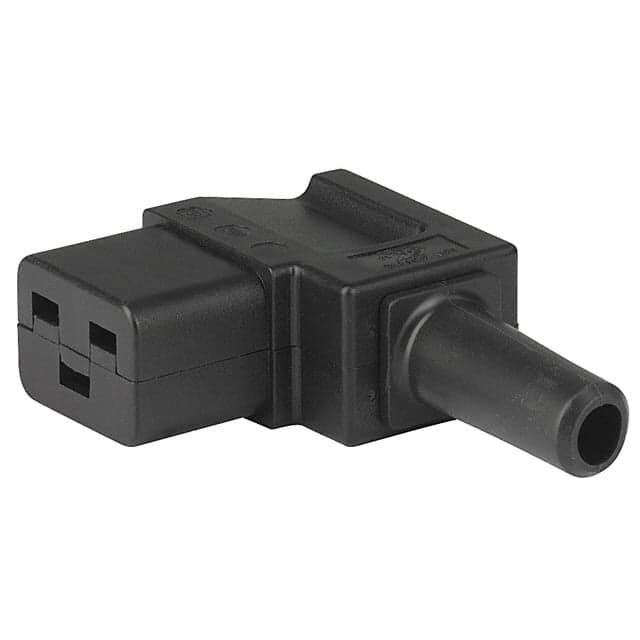

4790.1200
schurter
Conn Power SKT 3 POS RA Cable Mount 3 Terminal 1 Port MOD CONN REWIRE CABLE 10MM OUTLT C19 Female Right Angle Cable Mount IEC Connector, Rated At 21A, 250V ac Connector; 16/21 A; 250 VAC; gt 2 KV (AC); Black; Thermoplastic; UL 94V-0 AC Power Entry Modules 10.0mm CONNECT 14AWG SOCKET, REWIREABLE, 16A, ANGLED Connector;16/21A;250VAC;gt2KV(AC);Black;Thermoplastic;UL94V-0 Connector: IEC 60320,AC mains; C19 (J); plug; female; for cable IEC Connector angled C19 black, 4790.1200, Schurter Schurter C19 电缆安装 直角 插座 IEC 插头, 额定21A, 250 V 交流

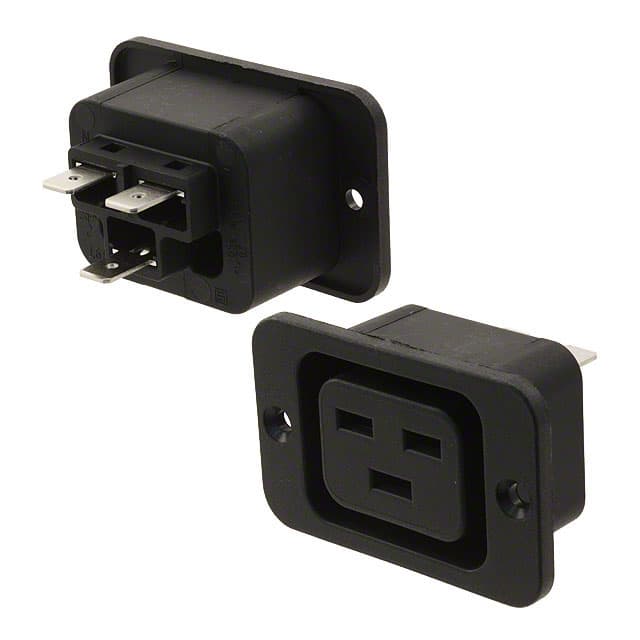

4797.0000
schurter
Conn Inlets/Outlets F 3 POS ST Panel Mount 3 Terminal 1 Port 4797 G-STECKDOSE 16A MODULE PWR ENTRY 20A SCREW-ON QC C19 Female Straight Panel Mount IEC Connector, Rated At 20A, 250V ac AC Power Entry Modules Screw-On OUTLET, MAINS, 16A, TAB Outlet;ScrewMount;16A;250VAC;gt10Megohms@500VDC,1Minute;Black Connector: IEC 60320,AC mains; C19 (J); socket; female; 16A Flush-type appliance outlet C19 Screw mounting, 4797.0000, Schurter Schurter C19 面板安装 直向 插座 IEC 插头, 额定20A, 250 V 交流 4797 - IEC Appliance Outlet
4797.0025
schurter
Conn Inlets/Outlets F 3 POS ST Panel Mount 3 Terminal 1 Port 4797 G-STECKDOSE 16A MOD PWR ENTRY 250VAC 16A SNAP QC AC Power Entry Modules 4797 APPLIANCE OUTLT 16A 4797APPLIANCEOUTLET16A
4795.0000
schurter
Conn Inlets/Outlets SKT 3 POS ST Cable Mount 3 Terminal 1 Port CONN PLUG STRAIGHT ENTRY 14AWG C19 Female Straight Cable Mount IEC Connector, Rated At 16A, 250V ac AC Power Entry Modules 16A REWRBL CONNECTOR SOCKET, IEC, 16A, FREE CordPlugAsmbly,16A,250VAC,10Megohms@500VDC,2kV@50Hz,Female Connector: IEC 60320,AC mains; C19 (J); plug; female; for cable IEC cable plug, straight black, 4795.0000, Schurter Schurter C19 电缆安装 直向 插座 IEC 插头, 额定16A, 250 V 交流 Appliance Connector C19

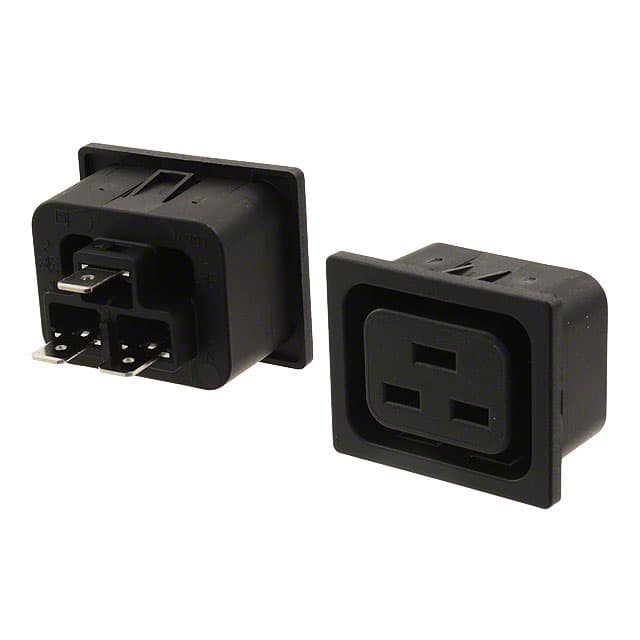

4797.0015
