点击放大查看

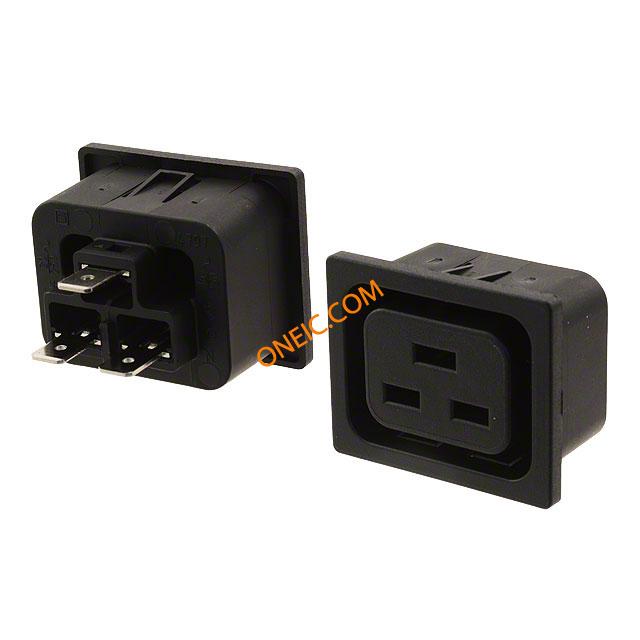

4797.0015
| Manufacturer | |
| Description | Conn Inlets/Outlets F 3 POS ST Panel Mount 3 Terminal 1 Port MOD PWR ENTRY 250VAC 16A SNAP QC APPLIANCE OUTLET 16/20A AC Power Entry Modules 1.5mm Snap-In OUTLET, IEC, 1.5MM, 16A, SNAP-IN APPLIANCEOUTLET16/20A Flush-type appliance outlet C19 Snap-in, 4797.0015, Schurter |
| Category |
Business
| Product | Outlets | Product Category | AC Power Entry Modules |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | ULListed,CSACertified | Tariff No | 85369010 |
| Approval Agency | :CCC | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 16A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V |
| Number of Poles | 3 | Switch Function | Not Switched |
| Dielectric Strength | 2kV@50Hz | Current Rating (Max) | 16 A |
| Insulation Resistance | >10Megohms@500VDC | ||
Mechanical
| Color | Black | Width | :42mm |
| Length | :34mm | Weight | 0.719589 oz |
| AC Outlets | :1 | Termination | :Tab |
| Contact Type | Pin | Mounting Type | Panel Mount |
| Terminal Type | :Quick Connect Terminals | Connector Type | Receptacle, Female Sockets |
| Mounting Style | Snap In | Connector Style | IEC 320-C19 |
| Fuseholder Type | Drawer Not Required | Material - Body | Thermoplastic |
| Panel Thickness | :1.5mm | Housing Material | Thermoplastic |
| Primary Material | Snap-In | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Color - Connectors | :Black | Depth Behind Panel | :33.8mm |
| Number of Contacts | :3 | Panel Cutout Shape | :37.2 x 29.2m |
| Contact Termination | :Quick Connect | Number of Positions | 3 |
| Material - Housing & Prism | :Thermoplastic | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Inlets/Outlets | Fused | No |
| Gender | F | Series | 4797 |
| Features | PanelMounted | ||
Environmental
| Operating Temperature | - 25 C to + 70 C | ||
Documents & Media
Similar Parts

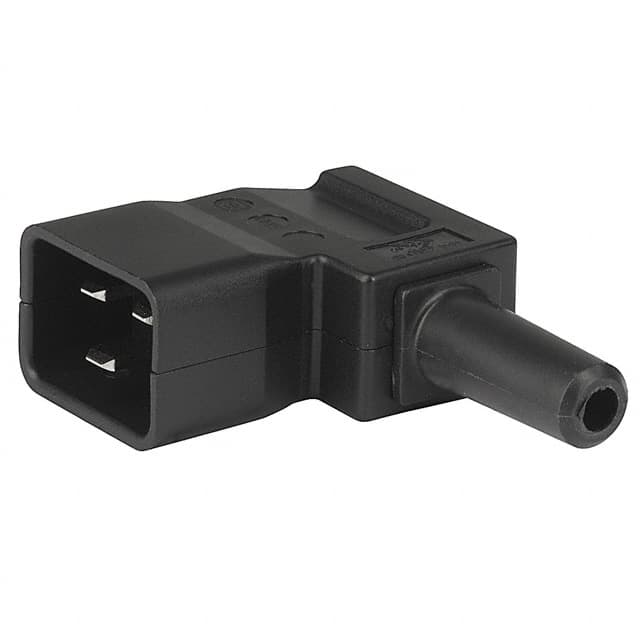

4789.1200
