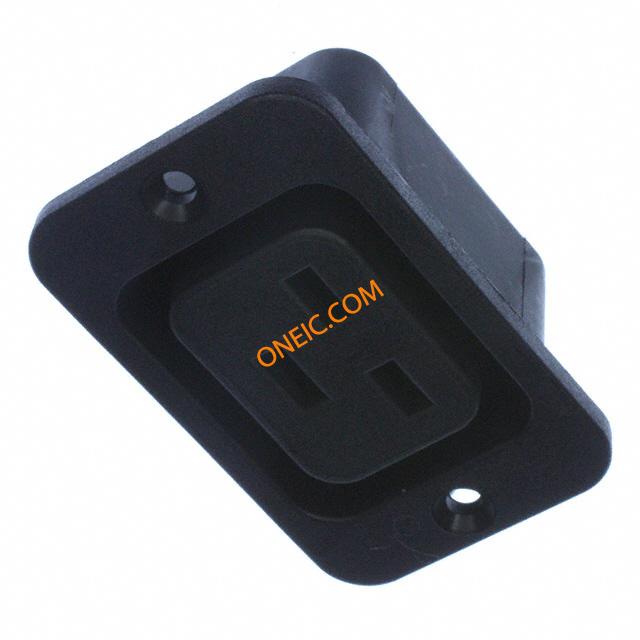

4797.3000
| Manufacturer | |
| Description | Conn Inlets/Outlets F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port 4797 G-STECKDOSE 16A MOD PWR ENTRY 20A SCREW-ON SLD Outlets;AC inlets/outlets; solder terminals AC Power Entry Modules Screw-On CONNECTOR, IEC POWER ENTRY, SOCKET, 16A OUTLET, MAINS, 16A, SOLDER Outlets,ACinlets/outlets,solderterminals |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Product | Outlets |
| Unit Pack | 50 | Product Category | AC Power Entry Modules |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | SEV,VDE,VDE,SEMKO,UL,CSAApprovals | Tariff No | 85366910 |
| Approval Agency | :CCC | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 20A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V |
| Number of Poles | 3 | Switch Function | Not Switched |
| Voltage - Rated AC | :250V | Dielectric Strength | 2kV@50Hz |
| Current Rating (Max) | 16 A | Insulation Resistance | >10Megohms@500VDC |
Mechanical
| Color | Black | Depth | :36.8mm |
| Width | :34mm | Length | :54mm |
| Weight | 0.740753 oz | AC Outlets | :1 |
| Termination | Solder Lug | Contact Type | Pin |
| Mounting Type | Panel Mount | Terminal Type | :Solder |
| Connector Type | Receptacle, Female Sockets | Mounting Style | Screw |
| Package / Case | :Thermoplastic | Connector Style | IEC 320-C19 |
| Fuseholder Type | Drawer Not Required | Material - Body | :Thermoplastic |
| Housing Material | Thermoplastic | Primary Material | Screw-On |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 3 | Contact Termination | :Solder |
| Number of Positions | 3 | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Inlets/Outlets | Fused | No |
| Gender | F | Series | 4797 |
| Features | PanelMounted | ||
Environmental
| Operating Temperature | - 25 C to + 70 C | ||
