4795.0000
| Manufacturer | |
| Description | Conn Inlets/Outlets SKT 3 POS ST Cable Mount 3 Terminal 1 Port CONN PLUG STRAIGHT ENTRY 14AWG C19 Female Straight Cable Mount IEC Connector, Rated At 16A, 250V ac AC Power Entry Modules 16A REWRBL CONNECTOR SOCKET, IEC, 16A, FREE CordPlugAsmbly,16A,250VAC,10Megohms@500VDC,2kV@50Hz,Female Connector: IEC 60320,AC mains; C19 (J); plug; female; for cable IEC cable plug, straight black, 4795.0000, Schurter Schurter C19 电缆安装 直向 插座 IEC 插头, 额定16A, 250 V 交流 Appliance Connector C19 |
| Category |
Business
| MOQ | 100 | Product | Outlets |
| Unit Pack | 100 | Other Names | 486-1054 |
| Product Category | AC Power Entry Modules | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | UL,CSA,VDE | Tariff No | 85369010 |
| Approval Agency | :CCC | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 16A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Dielectric Strength | :2000V |
| Current Rating (Max) | 16A | Number of Conductors | 3Conductors |
| Insulation Resistance | :10Mohm | Connector - Voltage Input | C19 (J) |
Mechanical
| Weight | 1.234589 oz | AC Outlets | :1 |
| Wire Gauge | #14 | Orientation | straight |
| Termination | :Screw | Jacket Color | Black |
| Mounting Type | Cable Mount | Wire Diameter | 14AWG |
| Cable Diameter | 10mm(Max.) | Connector Type | Plug, Female Sockets |
| Mounting Style | Cable | Connector Style | IEC 320-C19 |
| Fuseholder Type | Drawer Not Required | Material - Body | Thermoplastic |
| Housing Material | Thermoplastic | Package Quantity | 50 |
| Connector - Cable | C19 | Termination Style | Screw |
| Color - Connectors | :Black | Contact Termination | :Screw |
| Number of Positions | 3 | Material - Insulation | Thermoplastic |
| Wire Gauge or Range - mm2 | 10mm | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 50 | Type | Inlets/Outlets |
| Fused | No | Gender | SKT |
| Series | 4795 | Number of Units | 1 |
Environmental
| Temperature Rating | -25to+70°C | Operating Temperature | - 25 C to + 70 C |
Documents & Media
Similar Parts
4795.0000
schurter
Conn Inlets/Outlets SKT 3 POS ST Cable Mount 3 Terminal 1 Port CONN PLUG STRAIGHT ENTRY 14AWG C19 Female Straight Cable Mount IEC Connector, Rated At 16A, 250V ac AC Power Entry Modules 16A REWRBL CONNECTOR SOCKET, IEC, 16A, FREE CordPlugAsmbly,16A,250VAC,10Megohms@500VDC,2kV@50Hz,Female Connector: IEC 60320,AC mains; C19 (J); plug; female; for cable IEC cable plug, straight black, 4795.0000, Schurter Schurter C19 电缆安装 直向 插座 IEC 插头, 额定16A, 250 V 交流 Appliance Connector C19
4796.0000
schurter
Conn Inlets/Outlets PL 3 POS ST Cable Mount 3 Terminal 1 Port IEC Plug I, Cord Connector CONN PLUG STRAIGHT ENTRY 14AWG C20 Male Straight Cable Mount IEC Connector, Rated At 16A, 250V ac AC Power Entry Modules 4796 APPLIANCE INLET FOR CABLE 16A 70 deg PLUG, 16A, FREE CordPlugAsmbly,16A,250VAC,10Megohms@500VDC,2kV@50Hz,Male Connector: IEC 60320,AC mains; C20 (I); plug; male; for cable; 16A Plug black, 4796.0000, Schurter Schurter C20 电缆安装 直向 插头 IEC 插头, 额定16A, 250 V 交流
EF11.ABTWF200C0.0010.01
SCHURTER
SL-19 + QP026-1
Avnet, Inc.
LEAD, IEC C19 UK PLUG, 1M
SL-19 ROJ
Avnet, Inc.
LEAD, IEC C19 TO BARE ENDS, 1M

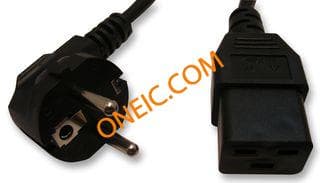

SL-19 + SL-6-1
Avnet, Inc.
LEAD, IEC C19 TO EURO PLUG, 1M
