4601-0

Manufacturer	Pomona Electronics

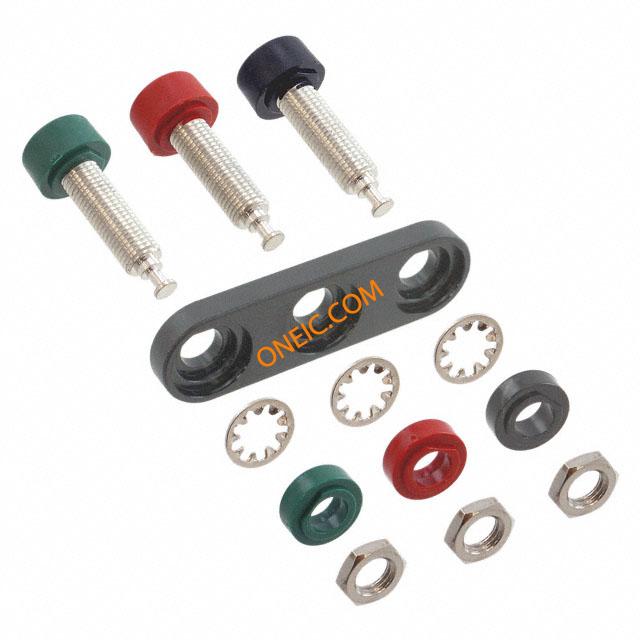

Description	Test Plugs & Test Jacks TRIPLE BANANA JAC TRIPLE BANANA JACK,INSULATED TRIPLE BANANA JACK W/MT BASE BLK TRIPLE BANANA JACK, 15A, TURRET, BLACK TRIPLEBANANAJACK(BLACK)
Category	Testing, Inspection, and Prototyping SolutionsTest ClipsTest Clips

对参数有疑问？问 AI 助手

Business

Standard Pack	5	Part # Aliases	1919515
Product Category	Test Plugs & Test Jacks	Standard Package	5
Factory Pack Quantity	5

Compliance

RoHS

RoHS Compliant

Tariff No

85369010

Electrical

Voltage Rating

2.5 kV

Current Rating (Max)

15 A

Mechanical

Color	Black	Weight	0.023
Packaging	Bulk	Insulation	Mating End Insulated
Termination	Turret	Body Material	Polycarbonate (PC)
Mounting Type	Panel Mount	Contact Finish	Tin
Contact Material	Brass	Color - Connectors	:Black
Contact Termination	:Stud / Turret	Plug/Mating Plug Diameter	Standard

Product Info

Type	Banana Jack, Triple	Gender	Female
Series	:4601	Equipment Type	Banana Jacks

Environmental

Operating Temperature

115°C

Documents & Media

Online Document

4601 RoHS Cert

PDF Document

4601 Series

PDF Document

d4601_1_01.pdf
