1825-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA PLUG BLACK BU-00243-0 Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG (BLACK) PLUG BANA SAFTY COLLAR BLK 10PC BANANA PLUG, 15A, SCREW, BLACK BananaJack;BananaJack;15A;Black;BerylliumCopper;5000Vrms(Max.) Plug; 4mm banana; 15A; 70VDC; black; 0.8mm2; Mounting: on cable Laboratory plug ø 4 mm black, 1825-0, Pomona |
| Category |
Business
| Part # Aliases | 1937271 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Black | Width | 0.44in. |
| Height | 1.55in. | Length | 1.55 in |
| Weight | 0.064 | Diameter | 0.166in. |
| Packaging | 10 per Bag | Insulation | Non-Mating End Insulated |
| Wire Gauge | 18-22 AWG | Termination | Screw |
| Body Material | Polypropylene (PP) | Housing Color | Black |
| Mounting Type | Cable Mount | Connector Type | 4mm banana |
| Contact Finish | Nickel | Mounting Style | Panel |
| Material - Body | Brass | Contact Material | Beryllium Copper |
| Housing Material | Acrylonitrile Butadiene Styrene | Length - Overall | 39.36 |
| Material - Frame | BerylliumCopper | Primary Material | Banana |
| Connector - Cable | plug | Color - Connectors | :Black |
| Number of Contacts | 1 | Contact Termination | :Screw |
| Insulation Material | Polypropylene | Length - Termination | 0.55in. |
| Maximum Cable Length | 0.8mm2 | Material - Insulation | ABS(Model4899PolyphenyleneSulfide) |
| Mounting Hole Diameter | 0.12" | Plug/Mating Plug Diameter | Standard |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Banana | Gender | PL |
| Series | :- | Features | Set Screw, Safety Collar |
| Manufacturer | 1825Series | Equipment Type | Banana Plugs |
| Number of Ports | 1 | Number of Units | 1 |
Environmental
| Operating Temperature | 50°C | Operating Temperature - Junction | +122°F |
Documents & Media
Similar Parts

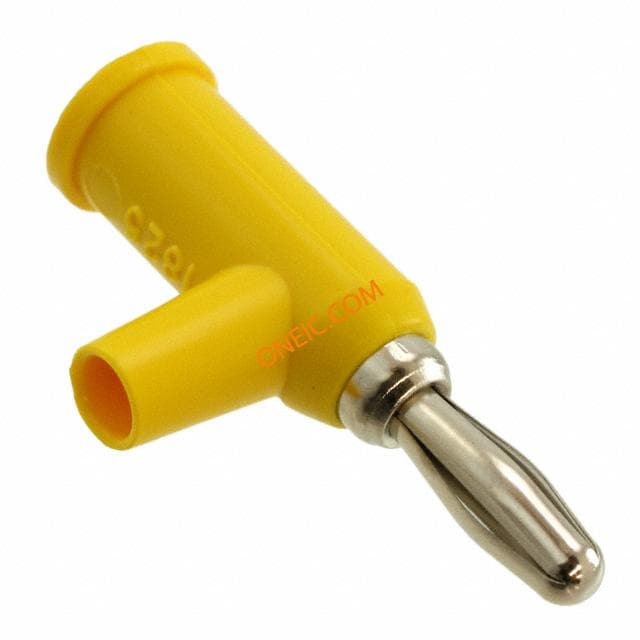

1825-4
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG YELLOW Conn Banana PL 1 POS Screw ST Cable Mount 1 Port BANANA PLUG W/SHIELD 10PC YELLOW BANANA PLUG W/ SAFETY COLLAR, 15A, SCREW, YELLOW BananaJack;BananaJack;15A;Yellow;BerylliumCopper;5000Vrms(Max.) Solderless Stackup Banana Plug with Safety Shield, Yellow, 10 Pack
1825-3
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG ORANGE Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG (ORANGE) BANANA PLUG W/SHIELD 10PC ORANGE BANANA PLUG, 15A, SCREW, ORANGE BananaJack;BananaJack;15A;Orange;BerylliumCopper;5000Vrms(Max.)
1825-9
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG WHITE Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG (WHITE) BANANA PLUG W/SHIELD 10PC WHITE BANANA PLUG, 15A, SCREW, WHITE BananaJack;BananaJack;15A;White;BerylliumCopper;5000Vrms(Max.)
1825-6
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG BLUE Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG PKG (BLUE) BANANA PLUG W/SHIELD 10PC BLUE BANANA PLUG, 15A, SCREW, BLUE BananaJack;BananaJack;15A;Blue;BerylliumCopper;5000Vrms(Max.)

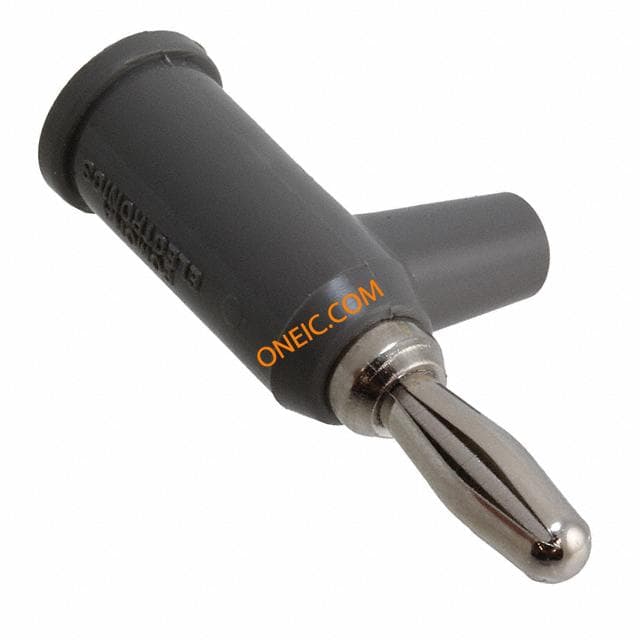

1825-8
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG GRAY Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG (GRAY) BANANA PLUG W/SHIELD 10PC GRAY BANANA PLUG, 15A, SCREW, GRAY BananaJack;BananaJack;15A;Gray;BerylliumCopper;5000Vrms(Max.)

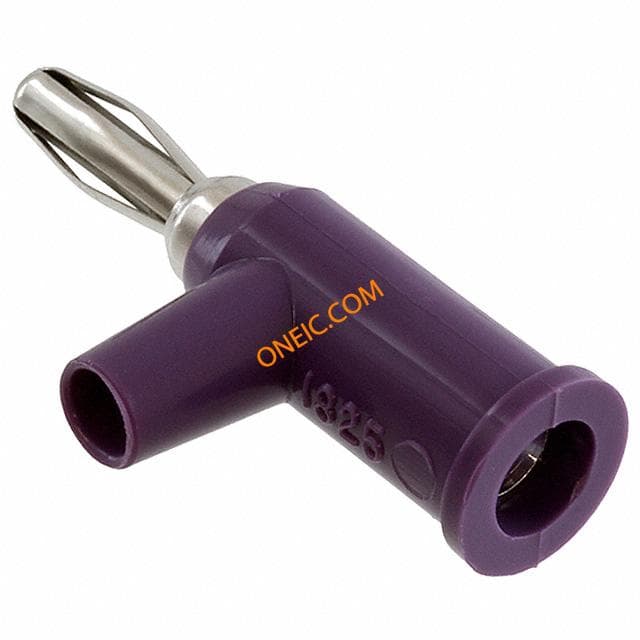

1825-7
