点击放大查看

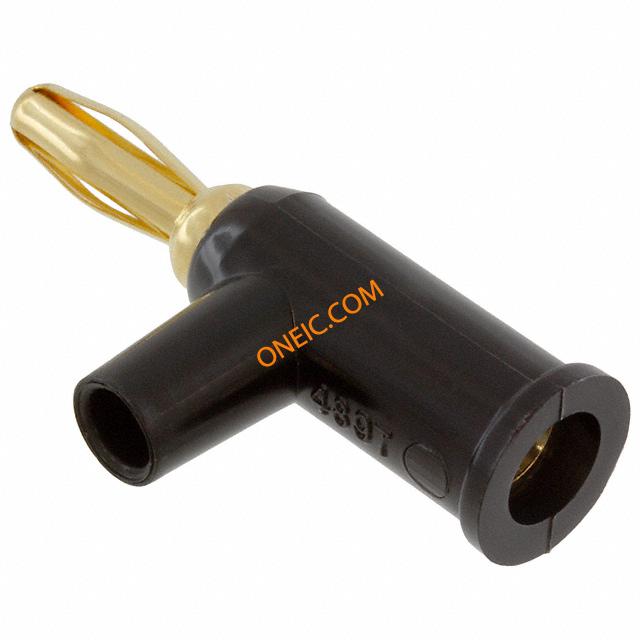

4897-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA PLUG Conn Banana PL 1 POS Screw ST Cable Mount 1 Port BANANA PLUG W/SHIELD GOLD BLACK BANANA PLUG, 15A, SCREW, BLACK BananaJack;BananaPlug;15A;Black;BerylliumCopper;5000Vrms(Max.) |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1914868 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Voltage Rating | 5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Black | Width | 0.44in. |
| Height | 1.55in. | Length | 1.55 in |
| Weight | 0.005 | Diameter | 0.166in. |
| Packaging | 1 per Pkg | Insulation | Non-Mating End Insulated |
| Wire Gauge | 18-22 AWG | Termination | Screw |
| Body Material | Polypropylene (PP) | Housing Color | Black |
| Mounting Type | Cable Mount | Contact Finish | Gold |
| Mounting Style | Panel | Material - Body | BerylliumCopper |
| Contact Material | Beryllium Copper | Housing Material | Acrylonitrile Butadiene Styrene |
| Length - Overall | 39.36 | Material - Frame | BerylliumCopper |
| Primary Material | Banana | Color - Connectors | :Black |
| Number of Contacts | 1 | Contact Termination | :Screw |
| Insulation Material | Acrylonitrile Butadiene Styrene (ABS) | Length - Termination | 0.55in. |
| Material - Insulation | ABS(Model4899PolyphenyleneSulfide) | Plug/Mating Plug Diameter | Standard |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Banana | Gender | PL |
| Series | :4897 | Features | Set Screw, Safety Collar |
| Manufacturer | 4897Series | Equipment Type | Banana Plugs |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 50°C | Operating Temperature - Junction | +122°F |
Documents & Media
PDF Document
PDF Document
Similar Parts
3777A-0
Pomona Electronics
Test Plugs & Test Jacks SPADE LUG TO DMM BANANA JACK, BLACK BANANA JACK/SPADE LUG #8-10 BLK Spade Lug-Banana Jack 1/1 POS ST Adapter,Banana;SpadeLug;5000VDC;Black;degC(Max.)
$99.8104
Details

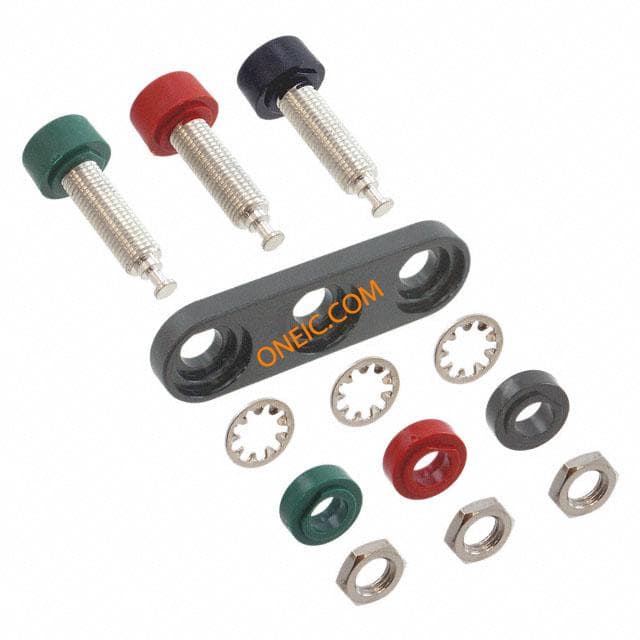

4601-0
