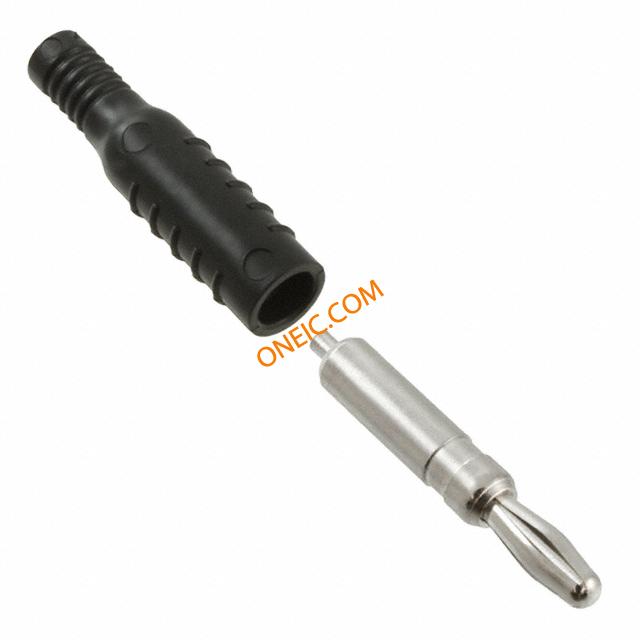

5169-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA PLUG BLACK BU-00246-0 Conn Banana Plug PL 1 POS Crimp/Solder ST Cable Mount 1 Port BANANA PLUG W/BOOT 18-22AWG BLK BANANA PLUG, 15A, CRIMP/SOLDER, BLACK Plug;BananaPlug;15A;Black;Brass;BerylliumCopper;5000VDC;50degC |
| Category |
Business
| Part # Aliases | 1659571 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Black | Width | 0.35in. |
| Height | 1.500in. | Weight | 0.009 |
| Diameter | 0.150in. | Packaging | Bulk |
| Insulation | Sheathed | Wire Gauge | 18-22 AWG |
| Termination | Crimp|Solder | Body Material | Polyvinyl Chloride (PVC) |
| Mounting Type | Cable Mount | Contact Finish | Nickel |
| Material - Body | Brass,Alloy360 | Contact Material | Beryllium Copper |
| Material - Frame | BerylliumCopper | Primary Material | Banana |
| Color - Connectors | :Black | Number of Contacts | 1 |
| Contact Termination | :Crimp, Solder | Insulation Material | Polypropylene |
| Length - Termination | 0.560in. | Material - Insulation | FlexiblePVC |
| Plug/Mating Plug Diameter | Standard | ||
Product Info
| Type | Banana Plug | Gender | PL |
| Series | :5169 | Manufacturer | 5169Series |
| Equipment Type | Banana Plugs | Number of Ports | 1 |
Environmental
| Operating Temperature | 50°C | Operating Temperature - Junction | 50°C |
Documents & Media
Similar Parts
5167-0
Pomona Electronics
Test Plugs & Test Jacks BANANA JACK 20 AWG BLACK Conn Banana Jack F 1 POS Crimp/Solder ST Cable Mount 1 Port B-JACK W/BOOT 18-22AWG BLK 10PK BANANA JACK, 15A, CRIMP/SOLDER, BLACK Jack,Banana;FlexibleBoot;30VAC/60VDC(Max.);15A;Brass;FlexiblePVC

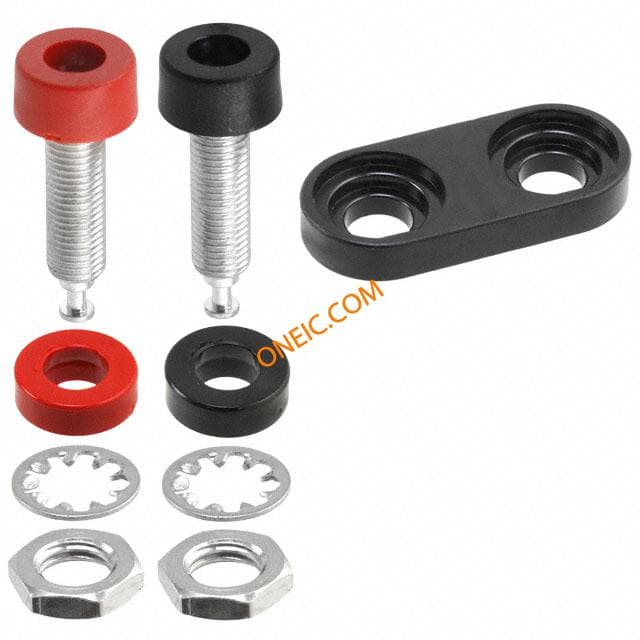

2269-0
