2961192
| Manufacturer | |
| Description | General Purpose Relays REL-MR- 24DC/21-21 REPLACEMENT RELAY Electromechanical Relay DPDT 8A 24VDC 1.44KOhm Through Hole RELAY GEN PURPOSE DPDT 8A 24V MIN.RELAYS,2 PDT,24 V DC RELAY, 24VDC, 8A, DPDT, PCB Relay;E-Mech;Power;DPDT;Cur-Rtg8A;Ctrl-V24DC;Vol-Rtg250AC/DC;PCBMnt;8Pin Phoenix Contact 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V dc |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | cULus,VDE,WEEE,RoHS |
| Tariff No | 85364190 | Rad Hardened | No |
Electrical
| Coil Type | Non Latching | Range deg/s | :- |
| Coil Current | 17 mA | Coil Voltage | 24V |
| Release Time | 3ms | Power - Rated | 2kVA |
| Visible Output | No | Voltage Rating | 250VAC/VDC |
| Coil Resistance | 1.44 kOhms | Pushing (MHz/V) | No |
| Current - Output | :8A | Voltage - Supply | 24 V |
| Switching Voltage | 250VAC, 250VDC - Max | Voltage - Rated AC | 250 V |
| Diode Configuration | No | Current Rating (Max) | 8A |
| Power - Output Surge | 2 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :8A | Voltage - Input (Min) | 250 |
| Power - Average Forward | 50 mW | Contact Rating (Current) | 8A |
| Voltage - Supply, Digital | :250V | Voltage - Supply (Vcc/Vdd) | :250V |
| Voltage - DC Reverse (Vr) (Max) | 250 V | Drive Voltage (Max Rds On, Min Rds On) | 24VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Seal | Unsealed | Depth | 12.7mm |
| Width | 12.7 mm | Height | 15.7 mm |
| Length | 29 mm | Weight | 0.530520 oz |
| Packaging | Bulk | Termination | ThroughHole |
| Contact Form | DPDT | Height (Max) | :29mm |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Mounting Style | Plug In | Number of Pins | 8 |
| Package / Case | DIP | Package Cooled | DIP |
| Contact Material | Silver Nickel | Length - Overall | 29 mm |
| Size / Dimension | 29mmLx12.7mmWx15.7mmH | Termination Style | PC Pin |
| Number of Contacts | 8 | Number of Positions | 8 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Miniature Relay | Series | REL-MR |
| Function | Power | Relay Type | Non-Latching |
| Push-to-Test | No | Industry Aliases | REL-MR- 24DC/21-21 |
| Base Product Number | REL-MR-24DC/21-21 | Application Specifics | Compact |
| For Use With/Related Products | 2960698 | ||
Environmental
| Operate Time | 7ms | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85°C | ||
Documents & Media
Similar Parts
2912510
Phoenix Contact
Industrial Relays PLC-RSP- 24UC/21-21 Electromechanical Relay DPDT 6A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE DPDT 6A 24V DPDT DIN Rail Panel Mount Interface Relay Module, 250V PLC relay, consisting of basic terminal block PLC-BSP.../21-21 with spring-cage connection and pluggable miniature relay with power contact, for assembly ... PLC relay, consisting of basic terminal block PLC-BSP.../21-21 with spring-cage connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 2 PDT, input voltage 24 V AC/DC PLC-RSP-24UC/21-21 双刀双掷 DIN Rail 接口继电器模块, 24V ac
2967028
Phoenix Contact
Relay Sockets & Hardware PLC-BSC- 24UC/21-21 Conn PLC Terminal Blocks Screw ST 6A 14MM PLC BASIC TERM BLOCK 24V Basic terminal block PLC-BSC- 24UC/21-21 14 mm PLC basic terminal blocks with screw connection method, input voltage 24 V AC/DC(without relay or optocoupler) Socket,Relay;TerminalBlock(14mm),(InputVoltage24VAC/VDC) 底盘安装 接口继电器模块, 24V ac/dc
2833518
Phoenix Contact
Relay Sockets & Hardware RELAY SOCKET PR1 PR1-BSC2/2X21 Relay Socket For Miniature Power Relay Or Miniature Switching Relay RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series SOCKET, RELAY, FOR PR1 SERIES RELAYSOCKETPR1
2967073
Phoenix Contact
Industrial Relays PLC-RSC-24UC/21-21 RELAY PN 651-2961192 Electromechanical Relay DPDT 6A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE DPDT 6A 24V DPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, DPDT, 24VAC/DC, DIN, SCREW PLC-RSCRelayModules,DPDT,6Aat24VACorVDC
2967109
Phoenix Contact
Industrial Relays PLCRSC-24DC/1-1/ACT RELAY PN 651-2961192 Electromechanical Relay DPST-NO 6A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE DPST 6A 24V Relay PLC-RSC- 24DC/ 1- 1/ACT PLCRELAYBASETERMINALBLOCK
2833521
Phoenix Contact
Relay Sockets & Hardware PR1-BSC3/2X21 CONNECTOR SOCKET RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series Conn Relay Socket SKT Screw Cable Mount RELAYSOCKETPR2
2967060
Phoenix Contact
Industrial Relays PLC-RSC- 24DC/21-21 RELAY PN 651-2961192 Electromechanical Relay DPDT 6A 24VDC 1.3KOhm DIN Rail RELAY GEN PURPOSE DPDT 6A 24V DPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, DPDT, 24VDC, DIN, SCREW Relay;E-Mech;PLC;DPDT;Cur-Rtg6A;Ctrl-V24DC;Vol-Rtg250AC/DC;Screw;Pwr-Rtg140W 双刀双掷 DIN Rail 接口继电器模块, 24V dc
2912507
Phoenix Contact
Industrial Relays PLC relay 24 V DC Electromechanical Relay DPDT 6A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE DPDT 6A 24V DPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, DPDT, 24VDC, DIN, SPRING PLC-RSCRelayModules,DPDT,6Aat24VDC,SpringTerminalBase 双刀双掷 DIN Rail 接口继电器模块, 24V dc
2833534
Phoenix Contact
Relay Sockets & Hardware PR1 RELAY SKT FOR MINI POWER/SWITCHING Conn Relay Socket SKT 8 POS RELAY SKT SPDT OR DPDT DIN RAIL Relay socket PR1-BSP3/2X21 PR1-BSP3/2X21
2967248
Phoenix Contact
Industrial Relays PLC-RSC- 48DC/21-21 Electromechanical Relay DPDT 6A 48VDC 2.4KOhm DIN Rail RELAY GEN PURPOSE DPDT 6A 48V DPDT DIN Rail Panel Mount Interface Relay Module, 250V PLC-RSCRelayModules,DPDT,6Aat48VDC
2912439
Phoenix Contact

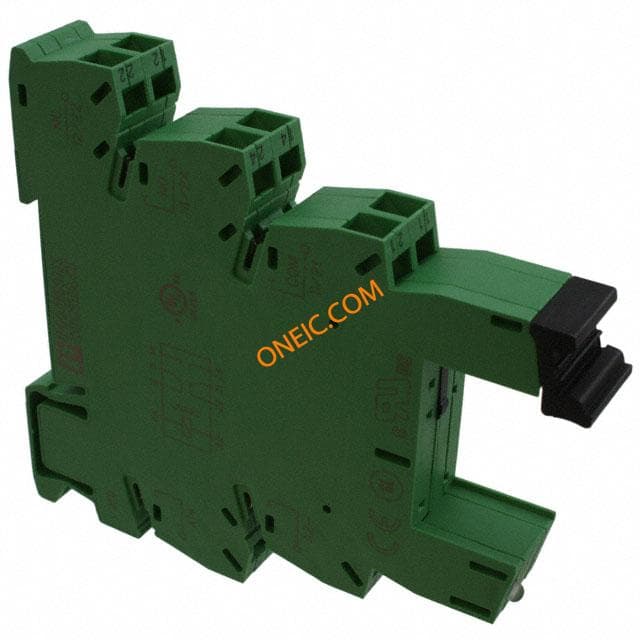

Relay Sockets & Hardware PLC-BSP-24DC/21-21 NO RELAY INCL Conn PLC Terminal Blocks F 14 MM PLC BASIC TERM BLOCKS Basic terminal block PLC-BSP- 24DC/21-21 Socket,Relay;TerminalBlock(14mm),(InputVoltage24VDC) Socket, Relay; Terminal Block (14mm)
2967015
Phoenix Contact

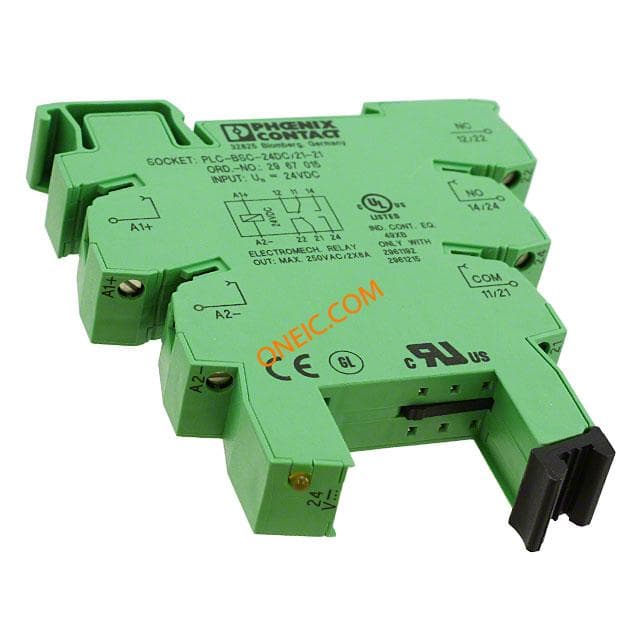

Relay Sockets & Hardware PLC-BSC- 24DC/21-21 Conn Terminal Block F Screw ST 14MM PLC BASIC TERM BLOCK 24V PLC Terminal Block, 24V dc, Green ,Screw Down Termination Basic terminal block PLC-BSC- 24DC/21-21 Socket,Relay;terminalblock(14mm),(inputvoltage24vDC) Phoenix Contact PLC-BSC 系列 绿色 PLC 端子块 , 24 V 直流
