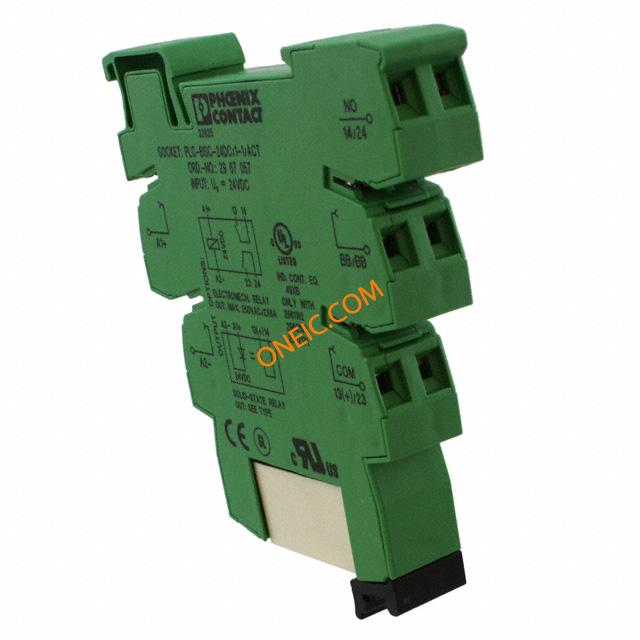

2967109
| Manufacturer | |
| Description | Industrial Relays PLCRSC-24DC/1-1/ACT RELAY PN 651-2961192 Electromechanical Relay DPST-NO 6A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE DPST 6A 24V Relay PLC-RSC- 24DC/ 1- 1/ACT PLCRELAYBASETERMINALBLOCK |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 18 mA |
| Release Time | 10ms | Power - Rated | 1.5kVA |
| Visible Output | Yes | Voltage Rating | 250 |
| Coil Resistance | 1.33K | Pushing (MHz/V) | No |
| Voltage - Supply | 24 V | Switching Voltage | 250VAC, 250VDC - Max |
| Diode Configuration | Yes | Current Rating (Max) | 6 |
| Voltage - Input (Min) | 250 | Contact Rating (Current) | 6A |
Mechanical
| Seal | Unsealed | Depth | 80 |
| Width | 14 mm | Height | 94 mm |
| Length | 80 mm | Weight | 2.451188 oz |
| Packaging | Bulk | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | DIN Rail | Mounting Style | DIN Rail |
| Contact Material | Silver Nickel | Length - Overall | 14 |
| Termination Style | Screw Terminal | Contact Termination | Screw |
| Contact Layout, Typical | DPST-NO | ||
Product Info
| Type | Industrial Relay | Series | PLC-RSC |
| Features | LED Indicator, PLC Terminal Block | Relay Type | PLC Relay |
| Industry Aliases | PLC-RSC- 24DC/1-1/ACT | ||
Environmental
| Operate Time | 8ms | Operating Temperature | -25°C ~ 60°C |
