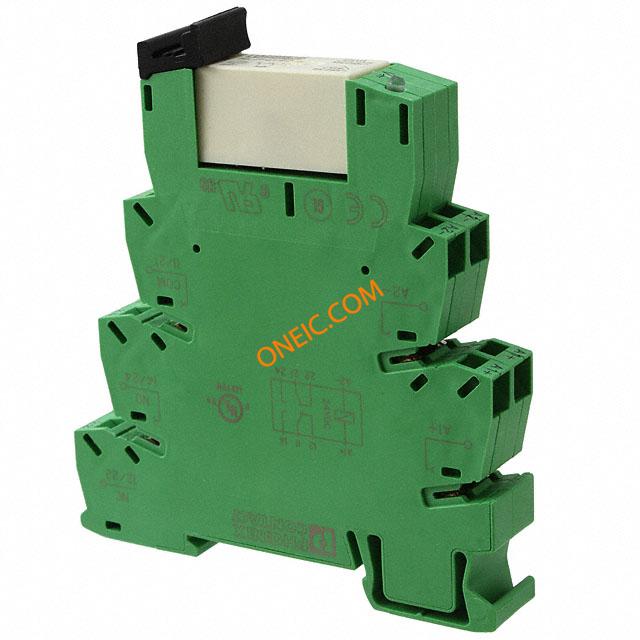

2912507
| Manufacturer | |
| Description | Industrial Relays PLC relay 24 V DC Electromechanical Relay DPDT 6A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE DPDT 6A 24V DPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, DPDT, 24VDC, DIN, SPRING PLC-RSCRelayModules,DPDT,6Aat24VDC,SpringTerminalBase 双刀双掷 DIN Rail 接口继电器模块, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364190 |
Electrical
| Coil Type | DC | Coil Current | 18 mA |
| Release Time | 10ms | Power - Rated | 1.5kVA |
| Visible Output | Yes | Voltage Rating | 24V dc |
| Coil Resistance | 1.33K | Pushing (MHz/V) | No |
| Voltage - Supply | 24 VDC | Switching Voltage | 250VAC, 250VDC - Max |
| Resistance - Input | 1.33kΩ | Diode Configuration | Yes |
| Current Rating (Max) | 6 | Current - Max/Contact | :6A |
| Voltage - Input (Min) | 250 | Voltage - Supply (Min) | 250V |
| Contact Rating (Current) | 6A | Current - Input Bias (Max) | 18mA |
| Voltage - Supply (Vcc/Vdd) | :250V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Seal | Unsealed | Depth | 14mm |
| Width | 14 mm | Height | 80 mm |
| Length | 94 mm | Weight | 2.264941 oz |
| Packaging | Bulk | Contact Form | DPDT |
| Height (Max) | :80mm | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Contact Material | Silver Nickel |
| Length - Overall | 14 | Termination Style | Screwless Clamp |
| Contact Termination | Spring Cage | Contact Layout, Typical | DPDT |
Product Info
| Type | PLC Relay | Series | PLC-RSP |
| Features | LED Indicator, PLC Terminal Block | Function | PLC |
| Relay Type | PLC Relay | Manufacturer | PLC-RSC/RSP |
| Industry Aliases | PLC-RSP- 24DC/21-21 | Base Product Number | PLC-RSP-24DC/21-21 |
Environmental
| Operate Time | 8ms | Operating Temperature | -40°C ~ 60°C |
