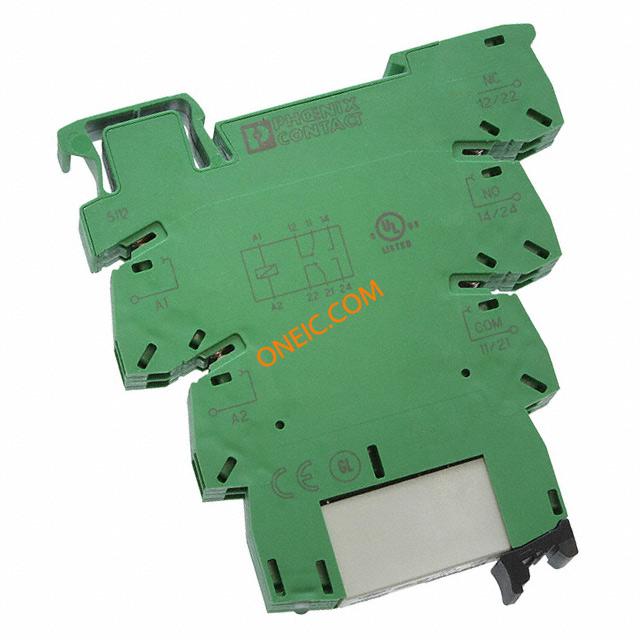

2912510
| Manufacturer | |

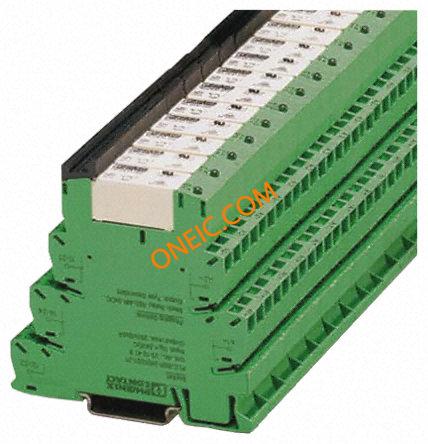

| Description | Industrial Relays PLC-RSP- 24UC/21-21 Electromechanical Relay DPDT 6A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE DPDT 6A 24V DPDT DIN Rail Panel Mount Interface Relay Module, 250V PLC relay, consisting of basic terminal block PLC-BSP.../21-21 with spring-cage connection and pluggable miniature relay with power contact, for assembly ... PLC relay, consisting of basic terminal block PLC-BSP.../21-21 with spring-cage connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 2 PDT, input voltage 24 V AC/DC PLC-RSP-24UC/21-21 双刀双掷 DIN Rail 接口继电器模块, 24V ac |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 12 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 17.5 mA |
| Release Time | 10ms | Power - Rated | 1.5kVA |
| Visible Output | Yes | Voltage Rating | 24V ac |
| Pushing (MHz/V) | No | Voltage - Supply | 24 VAC |
| Switching Voltage | 250 VAC, 250 VDC | Diode Configuration | Yes |
| Current Rating (Max) | 6 | Voltage - Input (Min) | 250 |
| Voltage - Supply (Min) | 250V | Contact Rating (Current) | 6 A |
| Current - Input Bias (Max) | 17.5mA | ||
Mechanical
| Seal | Unsealed | Depth | 14mm |
| Height | 94mm | Length | 80mm |
| Weight | 2.171112 oz | Packaging | Bulk |
| Contact Form | DPDT | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Contact Material | Silver Nickel |
| Length - Overall | 14 | Size / Dimension | 80 x 14 x 94mm |
| Termination Style | Screwless Clamp | Contact Layout, Typical | DPDT |
Product Info
| Type | PLC Relay | Series | PLC-RSP |
| Features | LED Indicator, PLC Terminal Block | Relay Type | PLC Relay |
| CAD Drawing | 3D CAD 模型 | Industry Aliases | PLC-RSP- 24UC/21-21 |
Environmental
| Operate Time | 8ms | Operating Temperature | -40°C ~ 60°C |
