1883336
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08 10P PLUG IDC Conn Terminal Block F 10 POS 5.08mm ST Cable Mount 10A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector QC 1/10-ST-5,08 QC1/10-ST-508 Phoenix Contact COMBICON QC 系列 5.08mm 节距 10 路 母 绿色 插头, IDC端接 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 500 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 630V | ||
Mechanical
| Color | Green | Depth | 28.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 0.606712 oz | Material | 聚酰胺，镀锡 |
| Packaging | Bulk | Wire Gauge | 18-22 AWG |
| Termination | IDC | Mounting Type | Straight |
| Connector Type | 母座 | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 51.62 |
| Termination Rows | IDC | Termination Style | IDC / IDT |
| Number of Contacts | 10 | Number of Positions | 10 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 20-18 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | QC | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 10 |
Documents & Media
Similar Parts
1767452
Phoenix Contact
Pluggable Terminal Blocks SMSTBA 2 5/10-G-5 08 Conn Shrouded Header HDR 10 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 10POS 5.08MM Header for PCB plug connector SMSTBA 2,5/10-G-5,08 SMSTBA25/10-G-508 Phoenix Contact COMBICON SMSTBA 系列 10路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1872541
Phoenix Contact
Pluggable Terminal Blocks A-MSTBVA 2.5/10-G-5.08 Conn Shrouded Header HDR 10 POS 5.08mm ST HEADER TERM BLOCK 10 POS 5.08MM A-MSTBVA25/10-G-508

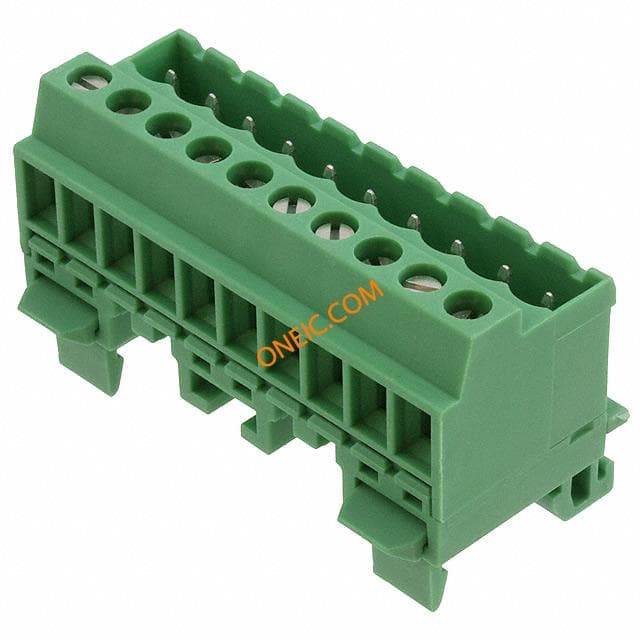

1788800
