1767452
| Manufacturer | |
| Description | Pluggable Terminal Blocks SMSTBA 2 5/10-G-5 08 Conn Shrouded Header HDR 10 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 10POS 5.08MM Header for PCB plug connector SMSTBA 2,5/10-G-5,08 SMSTBA25/10-G-508 Phoenix Contact COMBICON SMSTBA 系列 10路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 16.5 |
| Pitch | 5.08 mm | Height | 14.8 |
| Weight | 5.502738 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | 锡 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 52.8 | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | 45° |
| Number of Contacts | 10 | Number of Positions | 10 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | SMSTBA | Industry Aliases | SMSTBA 2, 5/10-G-5, 08 |
| Number of Levels | 1 | Positions Per Level | 10 |
Similar Parts
1764303
Phoenix Contact
Pluggable Terminal Blocks MSTB 2 5/10-STZ-5 08 Conn Terminal Block F 10 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/10-STZ-5,08 MSTB25/10-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接
1769094
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/10-ST-5,08 Plugcomponent,Nominalcurrent:12A(10Positions)5.08pitch

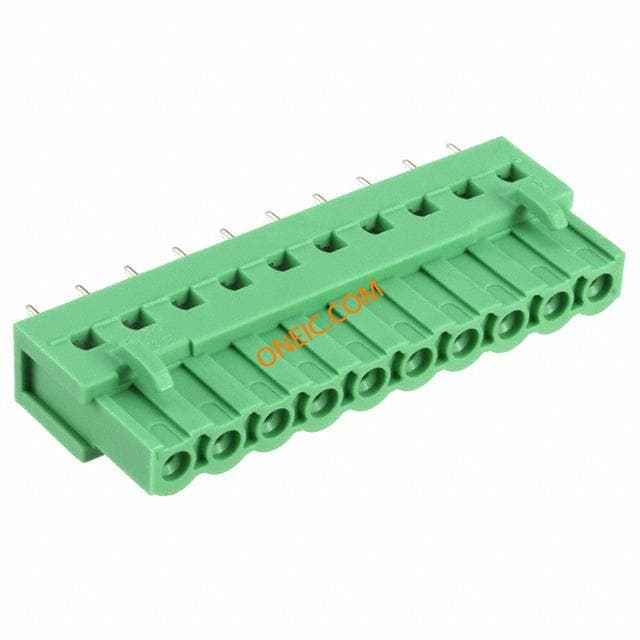

1786022
Phoenix Contact
Pluggable Terminal Blocks ICV 2 5/10-G-5 08 Conn Wire to Board HDR 10 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,10way ICV25/10-G-508 Phoenix Contact COMBICON ICV 系列 10路 5.08mm节距 (1排) 直 PCB 接线端子块 , 焊接端接, 12A, 通孔
1777361
Phoenix Contact
Pluggable Terminal Blocks FRONT-MSTB 2 5/10-ST Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 320V Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/10-ST-508
.jpg&w=3840&q=75)
1826364
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 45DEG Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Printed-circuit board connector SMSTB 2,5/10-ST-5,08 Conn Terminal Blocks F 10 POS 5.08mm Screw Cable Mount 12A Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA
1792320
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 90DEG TERM BLOCK PLUG 10POS 5.08MM Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 10WAY Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1752865
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 10-ST-5,08 AU TERM BLOCK PLUG 10POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green MSTB25/10-ST-508AU
1792838
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 270DEG Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 250V Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V
1757093
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 180DEG Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Conn Terminal Blocks F 10 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1758403
Phoenix Contact
Pluggable Terminal Blocks 5.08mm PRE-PRINTED 10P 1-10 LFT TO RGHT Conn Terminal Block F 10 POS 5.08mm Screw 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTB 2,5/10-ST-5,08 BD:1-10 Conn;TermBlk;Plug;Screw;10;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 插入式, 螺钉端接

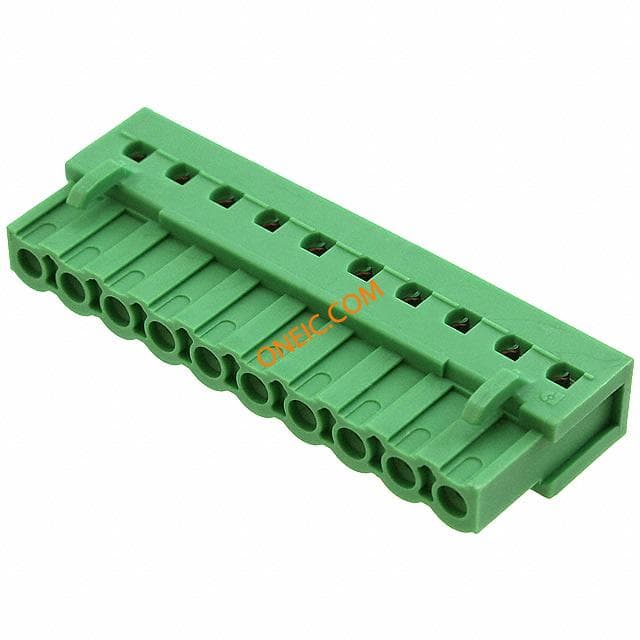

1786488
Phoenix Contact
Pluggable Terminal Blocks IC 2 5/10-G-5 08 Conn Wire to Board HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 10, Assembly: Soldering IC25/10-G-508 Phoenix Contact COMBICON IC 系列 5.08mm节距 10路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔

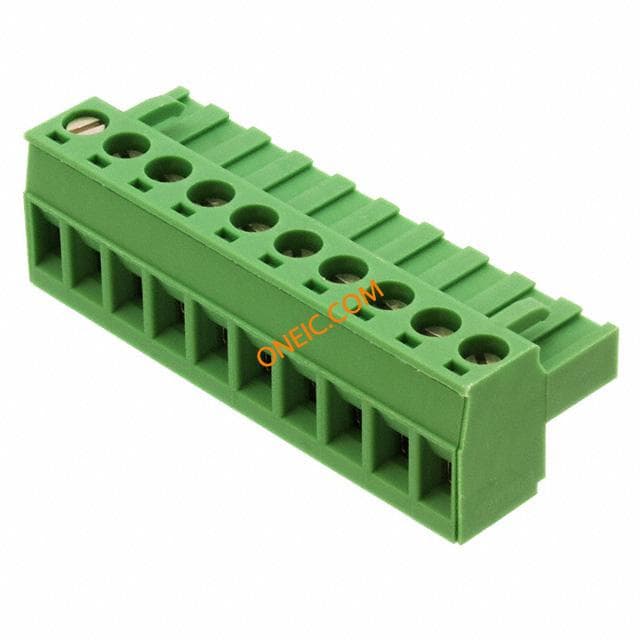

1781069
