1757323
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08 10P HEADER 90DG Conn Shrouded Header HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 10WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;10Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 10路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 2.5/10-G-5.08 MSTBA | Product Category | Pluggable Terminal Blocks |
| Standard Package | 100 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | EN-VDE |
| Tariff No | 85369010 | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Range deg/s | :PHOENIX - MSTBA Series | Voltage Rating | 250 V |
| Number of Poles | 10Poles | Current - Output | 12A |
| Voltage - Nominal | 250V | Voltage - Working | :320V |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 320V |
| Voltage - Supply (Min) | 250V | Voltage - Protection Level (VP) (2416) | 4kV |
Mechanical
| Color | Green | Depth | 12 mm |
| Pitch | 0.200" (5.08mm) | Height | 8.6 mm |
| Weight | 5.396916 oz | Packaging | Bulk |
| Termination | Solder | Lead Spacing | :5.08mm |
| Hole Diameter | 1.4mm | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Material Finish | :- | Contact Material | :- |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 52.8 mm |
| Primary Material | PCB | Size / Dimension | 45.72mm |
| Pin Hole Diameter | 5.08mm | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 10 |
| Contact Termination | :Solder | Number of Positions | 10 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Material - Insulation | PBT |
| Mounting Hole Diameter | :1.4mm | Pin Size - Below Flange | 1x1mm |
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MSTBA |
| Features | 90Deg | Manufacturer | COMBICON |
| Industry Aliases | MSTBA 2, 5/10-G-5, 08 | Number of Levels | 1 |
| Base Product Number | MSTBA2,5/10-G-5,08 | Positions Per Level | 10 |
Documents & Media
Similar Parts
1764303
Phoenix Contact
Pluggable Terminal Blocks MSTB 2 5/10-STZ-5 08 Conn Terminal Block F 10 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/10-STZ-5,08 MSTB25/10-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接
1769094
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/10-ST-5,08 Plugcomponent,Nominalcurrent:12A(10Positions)5.08pitch
1786022
Phoenix Contact

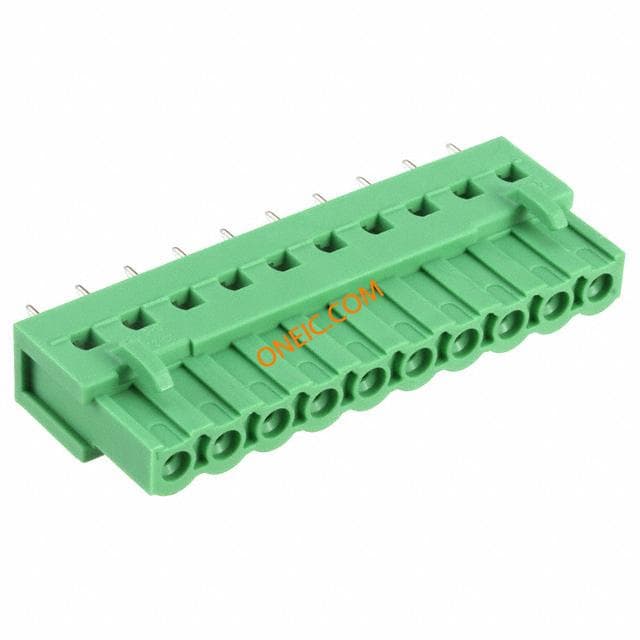

Pluggable Terminal Blocks ICV 2 5/10-G-5 08 Conn Wire to Board HDR 10 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,10way ICV25/10-G-508 Phoenix Contact COMBICON ICV 系列 10路 5.08mm节距 (1排) 直 PCB 接线端子块 , 焊接端接, 12A, 通孔
1777361
Phoenix Contact
Pluggable Terminal Blocks FRONT-MSTB 2 5/10-ST Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 320V Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/10-ST-508
.jpg&w=3840&q=75)
1826364
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 45DEG Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Printed-circuit board connector SMSTB 2,5/10-ST-5,08 Conn Terminal Blocks F 10 POS 5.08mm Screw Cable Mount 12A Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA
1792320
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 90DEG TERM BLOCK PLUG 10POS 5.08MM Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 10WAY Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1752865
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 10-ST-5,08 AU TERM BLOCK PLUG 10POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green MSTB25/10-ST-508AU
1792838
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 270DEG Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 250V Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V
1757093
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 180DEG Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Conn Terminal Blocks F 10 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1758403
Phoenix Contact
Pluggable Terminal Blocks 5.08mm PRE-PRINTED 10P 1-10 LFT TO RGHT Conn Terminal Block F 10 POS 5.08mm Screw 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTB 2,5/10-ST-5,08 BD:1-10 Conn;TermBlk;Plug;Screw;10;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 插入式, 螺钉端接
1786488
Phoenix Contact

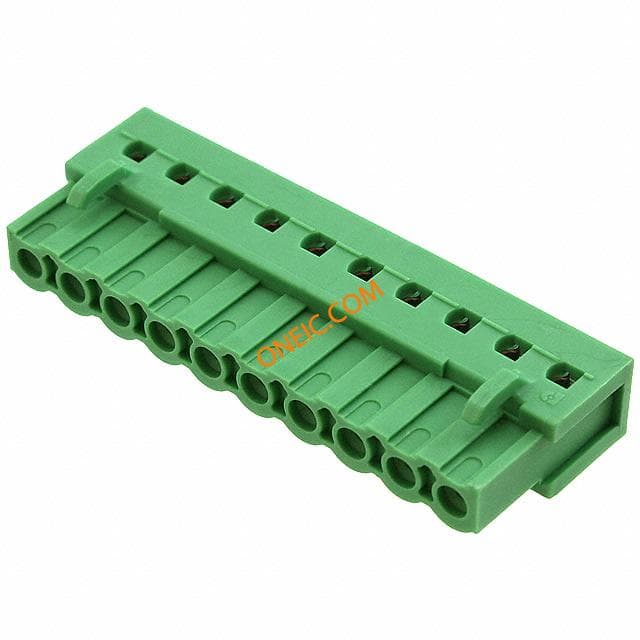

Pluggable Terminal Blocks IC 2 5/10-G-5 08 Conn Wire to Board HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 10, Assembly: Soldering IC25/10-G-508 Phoenix Contact COMBICON IC 系列 5.08mm节距 10路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔
1781069
Phoenix Contact

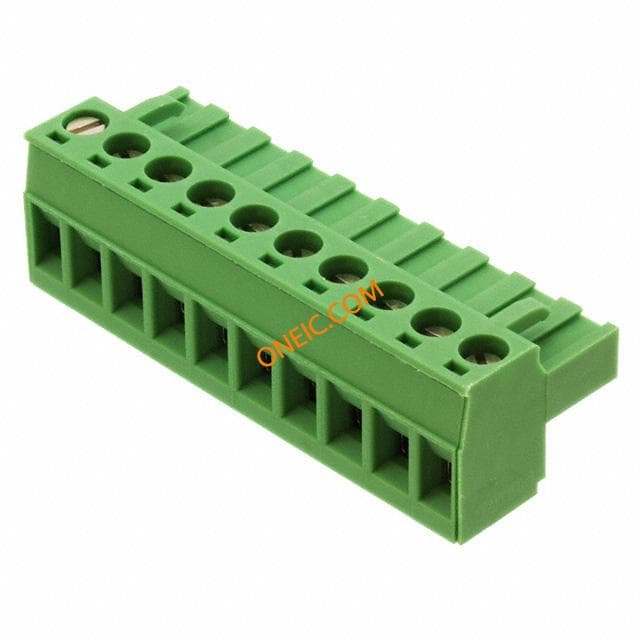

Pluggable Terminal Blocks MSTBT 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/10-ST-5,08 MSTBT25/10-ST-508 Phoenix Contact COMBICON MSTBT 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接
1873139
Phoenix Contact
Pluggable Terminal Blocks FKC 2 5/10-ST-5 08 Conn Spring Cage F 10 POS 5.08mm ST 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector FKC 2,5/10-ST-5,08 Conn;TermBlk;PCB;Plug;Springcage;10;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 10 路 母 绿色 直 插头, 电缆安装, 弹簧笼端接
1883336
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG IDC Conn Terminal Block F 10 POS 5.08mm ST Cable Mount 10A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector QC 1/10-ST-5,08 QC1/10-ST-508 Phoenix Contact COMBICON QC 系列 5.08mm 节距 10 路 母 绿色 插头, IDC端接
1808890
Phoenix Contact
Pluggable Terminal Blocks MSTBC 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Crimp ST Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBC 2,5/10-ST-5,08 MSTBC25/10-ST-508
ME010-50810
Avnet, Inc.
PIN HEADER, 10POS, 5.08MM
ME020-50810
Avnet, Inc.
PIN HEADER, 10POS, 5.08MM
ME010-50810
DECA
Pin header 90° Soldering Connection 10P, ME010-50810, DECA

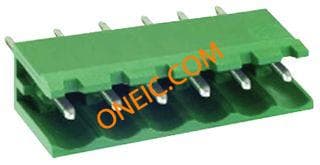

ME020-50810
