点击放大查看
1765030
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBHK 2 5/10-G-5 08 Conn Terminal Block HDR 10 POS 5.08mm Screw RA 12A TERM BLK PLUG-IN 10POS 5.08MM GN Header MSTBHK 2,5/10-G-5,08 Conn;TermBlk;Header;DINRail;10;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact 10 路 无熔丝端子块, DIN 轨安装, 螺钉端接, 320 V |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | cULus,CSA,VDE | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 10A | Voltage - UL | 300V |
| Current - IEC | 12A | Voltage - IEC | 300V |
| Voltage Rating | 250 V | Number of Poles | 10Poles |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 250V |
Mechanical
| Color | Gray | Pitch | 5.08 mm |
| Length | 2.059" (52.30mm) | Weight | 7.336984 oz |
| Material | 聚酰胺 | Wire Gauge | 24-12 |
| Termination | Screw | Height (Max) | 1.091" (27.70mm) |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 52.8 |
| Primary Material | DINRail | Stripping Length | 7mm |
| Terminal - Width | 29.1mm | Termination Rows | 螺钉 |
| Pin Hole Diameter | 5.08mm | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 10 | Number of Positions | 10 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm² | ||
Product Info
| Type | Terminal Block | Gender | HDR |
| Series | MSTB | CAD Drawing | 3D CAD 模型 |
| Number of Lines | 10 | Industry Aliases | MSTBHK 2, 5/10-G-5, 08 |
| Number of Levels | 1 | Base Product Number | MSTBHK2,5/10-G-5,08 |
Documents & Media
Similar Parts
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL
1764303
Phoenix Contact
Pluggable Terminal Blocks MSTB 2 5/10-STZ-5 08 Conn Terminal Block F 10 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/10-STZ-5,08 MSTB25/10-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接
1769094
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/10-ST-5,08 Plugcomponent,Nominalcurrent:12A(10Positions)5.08pitch
1401637
Phoenix Contact
ターミナルブロック・ツールとアクセサリ E/MBK END BRACKET Connector Accessories End Clamp Straight Polyamide Gray TERMINAL BLOCK END BRACKET End bracket E/MBK Terminal Block Tools & Accessories E/MBK END BRACKET Mn35 Digital Multimeter Ac/Dc Volts, Dc Amps, Resistance, Temp EndClamp;TermBlk;Gray;22mmLx6.2mmWx11.4mmH Phoenix Contact E/MBK 系列 端夹
1777361
Phoenix Contact
Pluggable Terminal Blocks FRONT-MSTB 2 5/10-ST Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 320V Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/10-ST-508
.jpg&w=3840&q=75)

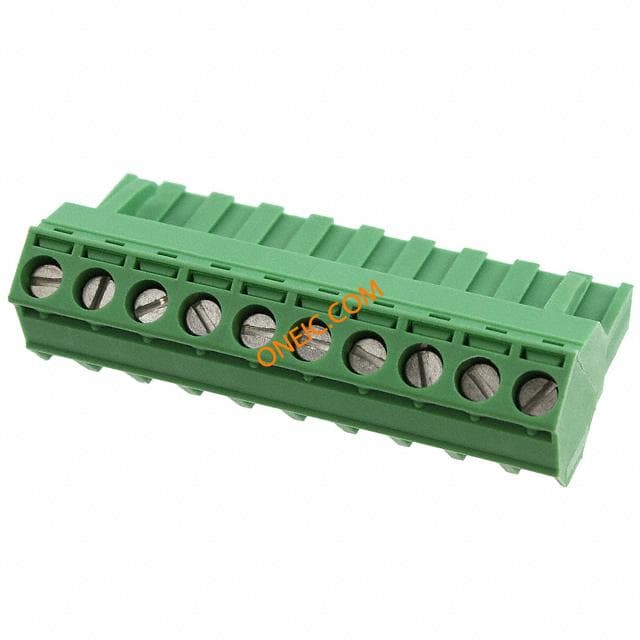

1826364
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 45DEG Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Printed-circuit board connector SMSTB 2,5/10-ST-5,08 Conn Terminal Blocks F 10 POS 5.08mm Screw Cable Mount 12A Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA
1792320
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 90DEG TERM BLOCK PLUG 10POS 5.08MM Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 10WAY Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1752865
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 10-ST-5,08 AU TERM BLOCK PLUG 10POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green MSTB25/10-ST-508AU
1792838
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 270DEG Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 250V Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V
1757093
Phoenix Contact
Pluggable Terminal Blocks 5.08 10P PLUG 180DEG Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Conn Terminal Blocks F 10 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

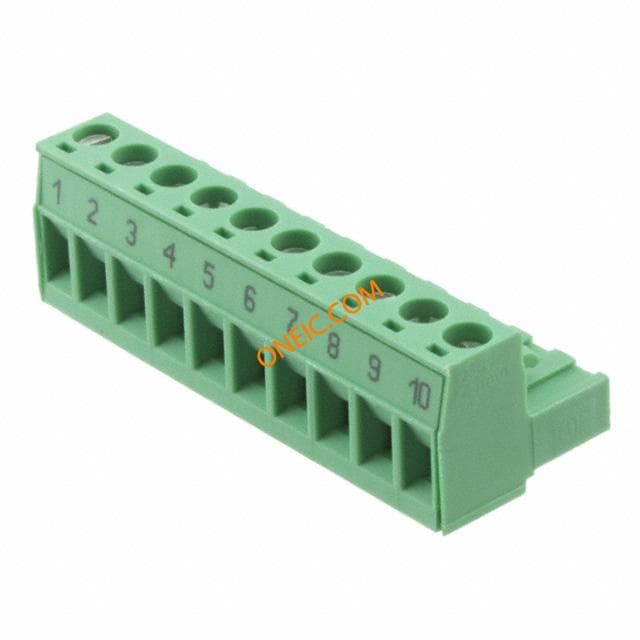

1758403
Phoenix Contact
Pluggable Terminal Blocks 5.08mm PRE-PRINTED 10P 1-10 LFT TO RGHT Conn Terminal Block F 10 POS 5.08mm Screw 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTB 2,5/10-ST-5,08 BD:1-10 Conn;TermBlk;Plug;Screw;10;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 插入式, 螺钉端接
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL

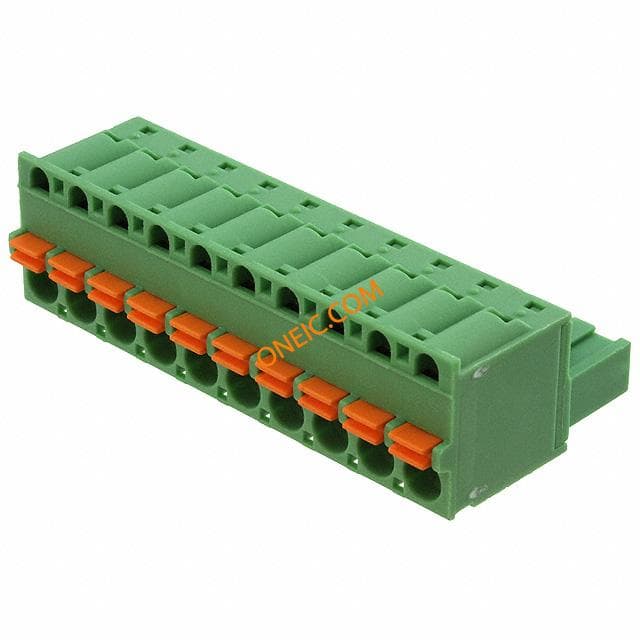

1873139
