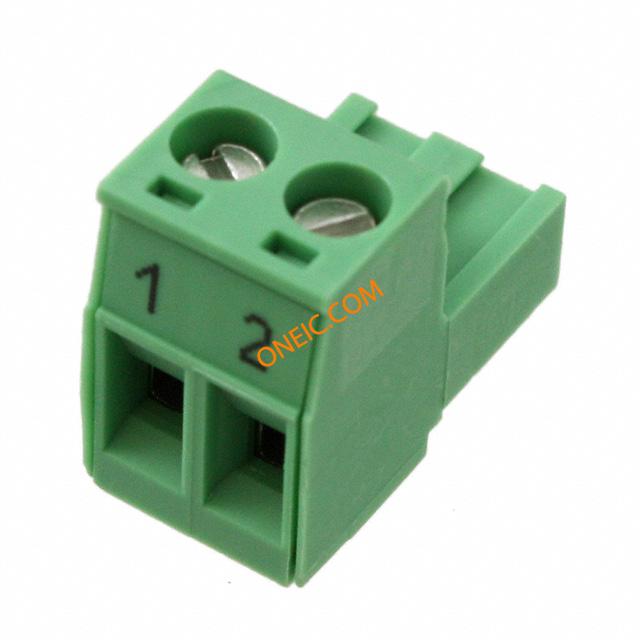

1829756
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5mm 2P PRE-PRINTED 1-2 LEFT TO RIGHT Conn Terminal Block PL 2 POS 5mm Screw 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector MSTB 2,5/ 2-ST BD:1-2 Conn;TermBlk;Plug;Screw;2;5mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5mm 节距 2 路 绿色 插头, 插入式, 螺钉端接 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Green | Pitch | 0.197" (5.00mm) |
| Length | 5mm | Weight | 4.409 lbs |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Termination | Screw | Mounting Type | Free Hanging (In-Line) |
| Contact Finish | Tin | Plug Wire Entry | 180° |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Number of Contacts | 2 | Number of Positions | 2 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | PL |
| Series | MSTB | Features | Positions Stamped, Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 2 |
