1762046
| Manufacturer | |

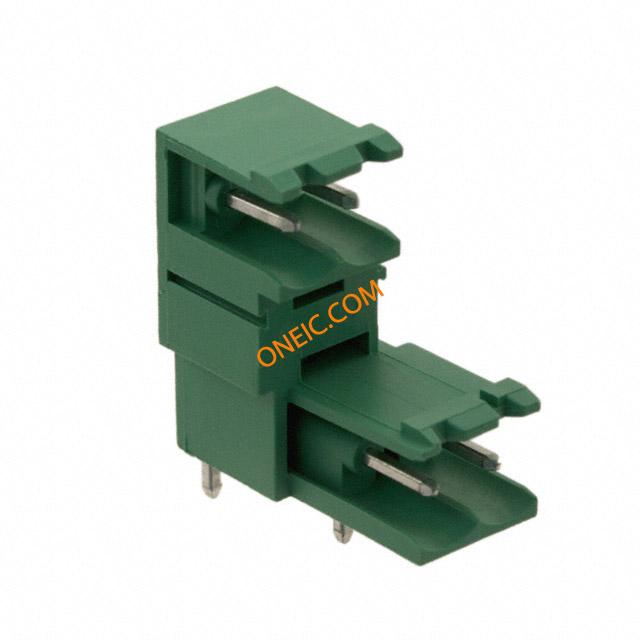

| Description | プラグ着脱可能ターミナルブロック 2X2 5mm HEADER DBL LEVEL Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 2-G Pluggable Terminal Blocks 2X2 5mm HEADER DBL LEVEL Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;2Pole;5mmPitch;COMBICON |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULRecognized,CSACertified | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 2Poles |
| Current - Output | 10A | Voltage - Nominal | 320V |
| Current Rating (Max) | 10 A | Voltage - Input (Min) | 320V |
| Voltage - Protection Level (VP) (2416) | 4kV | ||
Mechanical
| Color | Green | Depth | 22.1 |
| Pitch | 0.197" (5.00mm) | Height | 23.7 |
| Weight | 4.630 lbs | Packaging | Bulk |
| Termination | Solder | Hole Diameter | 1.4mm |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Mounting Style | Soldering |
| Number of Rows | 2 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 12.5 | Primary Material | PCB |
| Size / Dimension | 10mmL | Pin Hole Diameter | 5mm |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 4 | Number of Positions | 4 |
| Terminal Block Type | Header, Male Pins, Shrouded (2 Side) | Material - Insulation | PBT |
| Pin Size - Below Flange | 1x1mm | ||
Product Info
| Type | Shrouded Header | Level | DoubleLevel |
| Gender | HDR | Series | MDSTB |
| Features | Side Stacking (Interlocking) | Manufacturer | COMBICON |
| Industry Aliases | MDSTB 2, 5/ 2-G | Number of Levels | 2 |
| Base Product Number | MDSTB2,5/2-G | Positions Per Level | 2 |
Documents & Media
Similar Parts
1792016
Phoenix Contact
Pluggable Terminal Blocks 5.00 2P PLUG 90DEG TERM BLOCK PLUG 2POS 90DEG 5MM Printed-circuit board connector MVSTBR 2,5/ 2-ST Conn Terminal Block F 2 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;2;5mm;30-12AWG;10A;300V;PA
1893300
Phoenix Contact
Pluggable Terminal Blocks MSTBT 2.5/ 2-ST-BK Conn Terminal Block F 2 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector MSTBT 2,5/ 2-ST BK MSTBT25/2-STBK
1779835
Phoenix Contact
Pluggable Terminal Blocks MSTBT 2 5/ 2-ST Conn Terminal Block F 2 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector MSTBT 2,5/ 2-ST MSTBT25/2-ST Phoenix Contact COMBICON MSTBT 系列 5mm 节距 2 路 母 绿色 插头, 螺钉端接
1754449
Phoenix Contact
Pluggable Terminal Blocks 5.00 2P PLUG 180DEG Conn Terminal Block F 2 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector MSTB 2,5/ 2-ST Conn;TermBlk;Plug;Screw;2;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 2 路 母 绿色 直 插头, 插入式, 螺钉端接
1910351
Phoenix Contact

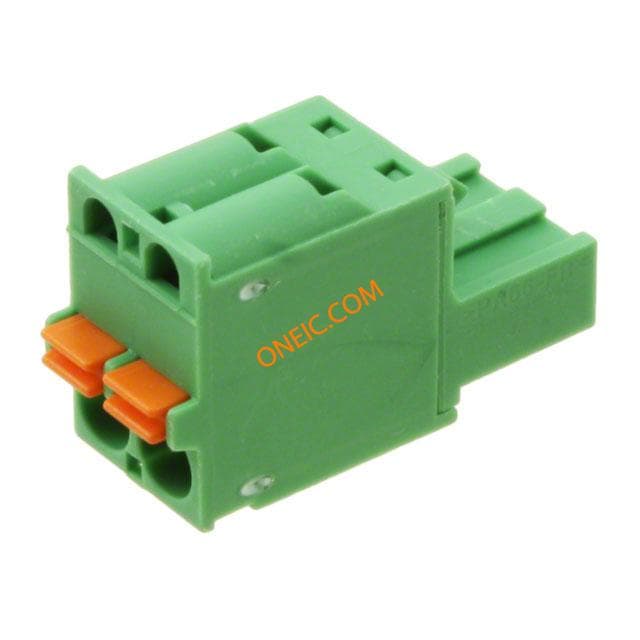

Pluggable Terminal Blocks 12A 250V 2-POS Plug component Conn Terminal Block F 2 POS 5mm ST Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector FKC 2,5/ 2-ST Conn;TermBlk;PCB;Plug;Springcage;2;5mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5mm 节距 2 路 母 绿色 直 插头, 电缆安装, 推入式端接
1829756
Phoenix Contact

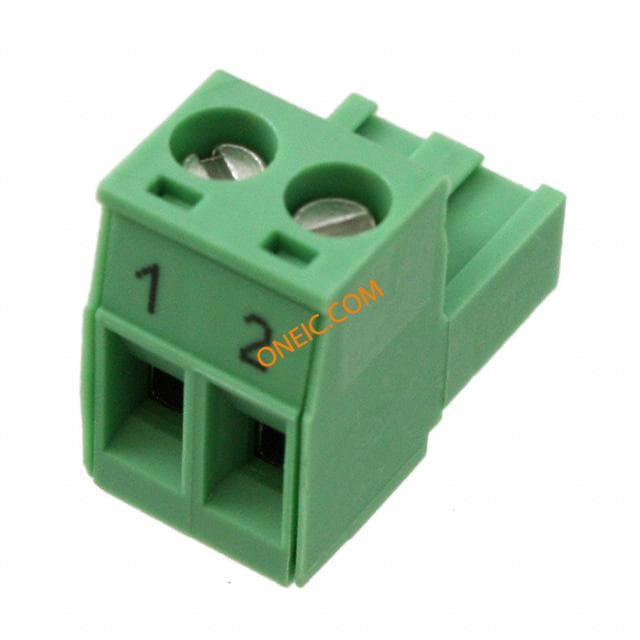

Pluggable Terminal Blocks 5mm 2P PRE-PRINTED 1-2 LEFT TO RIGHT Conn Terminal Block PL 2 POS 5mm Screw 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector MSTB 2,5/ 2-ST BD:1-2 Conn;TermBlk;Plug;Screw;2;5mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5mm 节距 2 路 绿色 插头, 插入式, 螺钉端接
1792524
Phoenix Contact
Pluggable Terminal Blocks 5.00 2P PLUG 270D Conn Terminal Block F 2 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 2POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/ 2-ST Conn Terminal Blocks F 2 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;2;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MVSTBW 系列 5mm 节距 2 路 母 绿色 直 插头, 电缆安装, 螺钉端接
1768765
Phoenix Contact
Pluggable Terminal Blocks 5.00 2P PLUG 45DEG Conn Terminal Block F 2 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 2POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/ 2-ST Conn;TermBlk;Plug;Screw;2;5mm;30-12AWG;10A;300V;PA
1779411
Phoenix Contact

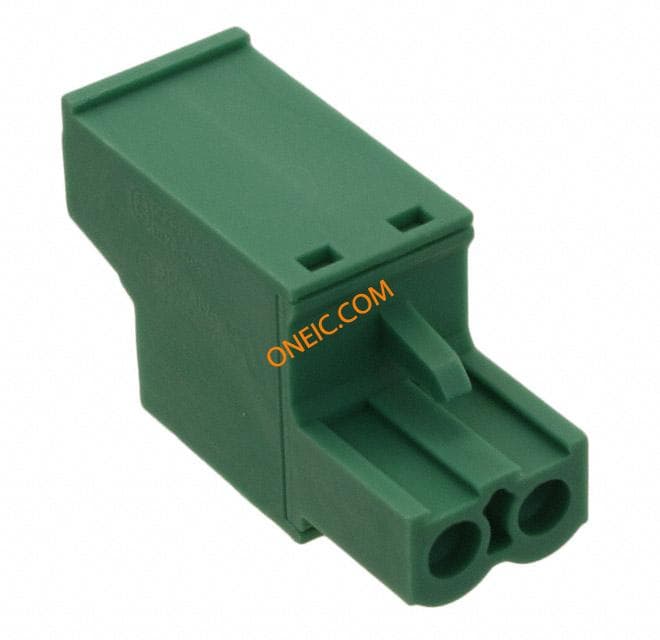

Pluggable Terminal Blocks FRONT-MSTB 2.5/2-ST Conn Terminal Block F 2 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 2-ST FRONT-MSTB2,5/2-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 2 路 母 绿色 直 插头, 插入式, 螺钉端接
