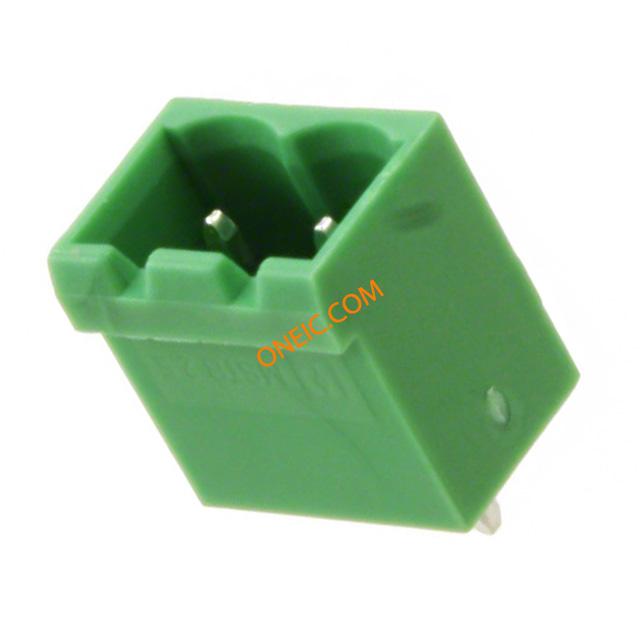

1755516
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.00 2P HEADER 180D Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 5MM Header for PCB plug connector MSTBVA 2,5/ 2-G Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5mmPitch;COMBICON Phoenix Contact COMBICON MSTBVA 系列 5mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 250 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 12A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 2Poles |
| Current - Output | 12A | Voltage - Nominal | 250V |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 250V@IEC|300V@UL |
| Voltage - Supply (Min) | 250V | Voltage - Protection Level (VP) (2416) | 4kV |
Mechanical
| Color | Green | Depth | 8.6 mm |
| Pitch | 0.197" (5.00mm) | Height | 12 mm |
| Weight | 0.047620 oz | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Hole Diameter | 1.4mm | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | 镀锡 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 12 mm | Primary Material | PCB |
| Termination Rows | 焊接 | Pin Hole Diameter | 5mm |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 2 | Number of Positions | 2 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Material - Insulation | PBT |
| Pin Size - Below Flange | 1x1mm | ||
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MSTBVA |
| CAD Drawing | 3D CAD 模型 | Manufacturer | COMBICON |
| Industry Aliases | MSTBVA 2, 5/ 2-G | Number of Levels | 1 |
| Base Product Number | MSTBVA2,5/2-G | Positions Per Level | 2 |
