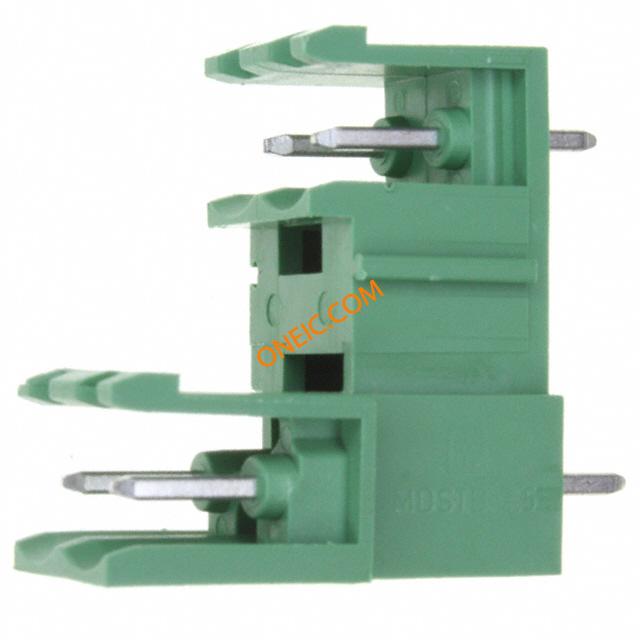

1763032
| Manufacturer | |
| Description | Pluggable Terminal Blocks MDSTBV 2.5/2-G Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5MM Header for PCB plug connector MDSTBV 2,5/ 2-G MDSTBV25/2-G |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 12A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 23.7 mm |
| Pitch | 0.197" (5.00mm) | Height | 22.1 mm |
| Weight | 4.630 lbs | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 12.5 mm |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 4 | Number of Positions | 4 |
| Terminal Block Type | Header, Male Pins, Shrouded (2 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MDSTBV | Industry Aliases | MDSTBV 2, 5/ 2-G |
| Number of Levels | 2 | Positions Per Level | 2 |
