1792838
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08 10P PLUG 270DEG Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 250V Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V |
| Category |
Business
| Product | Pluggable Terminal Blocks | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Part # Aliases | 2,5/10-ST-5,08 MVSTBW | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12.6 |
| Pitch | 0.200" (5.08mm) | Height | 26 |
| Length | 7 mm | Weight | 4.691437 oz |
| Material | Nylon | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 270° |
| Housing Material | Polyamide | Length - Overall | 50.8 |
| Termination Rows | 螺钉拧紧 | Termination Style | Through Hole |
| Number of Contacts | 10 | Number of Positions | 10 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
| Wire Gauge or Range - mm2 | 12 | Number of Positions/Bay/Row | 10 |
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Non-Wire Side) | CAD Drawing | 3D CAD Model |
| Number of Lines | 10 | Industry Aliases | MVSTBW 2, 5/10-ST-5, 08 |
| Number of Levels | 1 | Positions Per Level | 10 |
Documents & Media
Similar Parts
1767452
Phoenix Contact
Pluggable Terminal Blocks SMSTBA 2 5/10-G-5 08 Conn Shrouded Header HDR 10 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 10POS 5.08MM Header for PCB plug connector SMSTBA 2,5/10-G-5,08 SMSTBA25/10-G-508 Phoenix Contact COMBICON SMSTBA 系列 10路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1872541
Phoenix Contact
Pluggable Terminal Blocks A-MSTBVA 2.5/10-G-5.08 Conn Shrouded Header HDR 10 POS 5.08mm ST HEADER TERM BLOCK 10 POS 5.08MM A-MSTBVA25/10-G-508
1788800
Phoenix Contact
Pluggable Terminal Blocks MSTBVK 2 5/10-G-5 08 10POS 5.08mm HEADER Conn Terminal Block F 10 POS 5.08mm Screw 12A TERM BLK RAIL MNT PLUG-IN 10POS Header for PCB plug connector MSTBVK 2,5/10-G-5,08 MSTBVK25/10-G-508

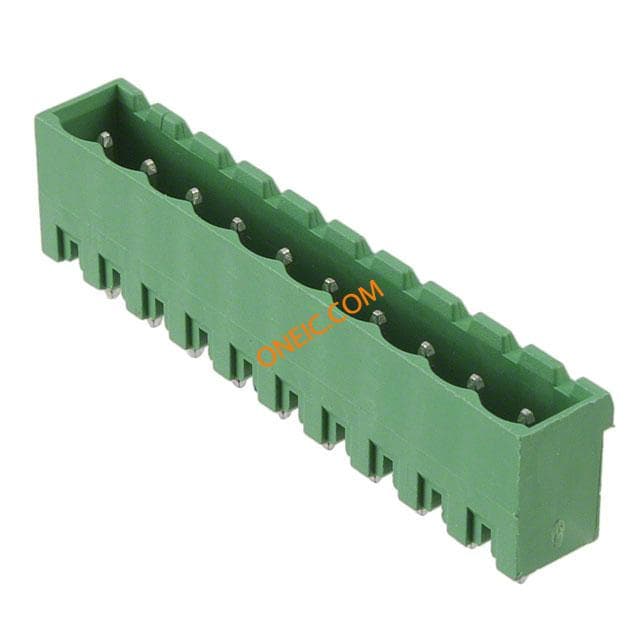

1859593
