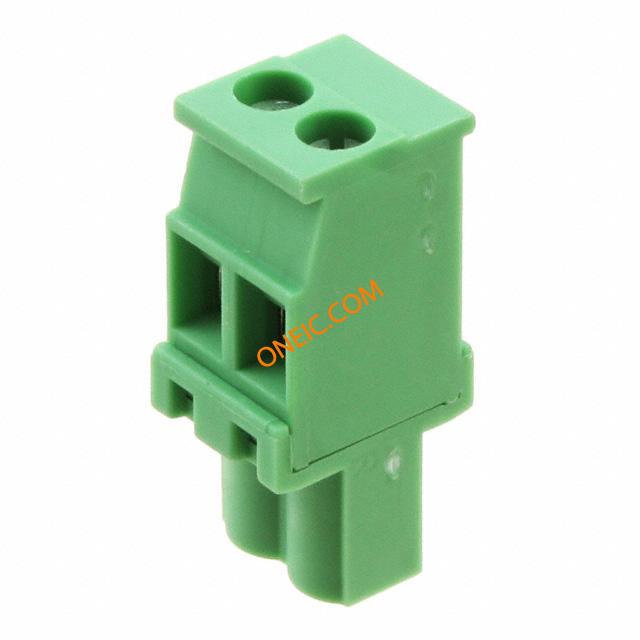

1792524
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.00 2P PLUG 270D Conn Terminal Block F 2 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 2POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/ 2-ST Conn Terminal Blocks F 2 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;2;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MVSTBW 系列 5mm 节距 2 路 母 绿色 直 插头, 电缆安装, 螺钉端接 |
| Category |
Business
| Product | Pluggable Terminal Blocks | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 12.6 mm |
| Pitch | 0.197" (5.00mm) | Width | 12.6mm |
| Height | 26 mm | Length | 7 mm |
| Weight | 3.527 lbs | Material | 聚酰胺 |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Orientation | 直 | Termination | Screw |
| Mounting Type | Cable Mount | Connector Type | 母座 |
| Contact Finish | Tin | Mounting Style | Cable |
| Number of Rows | 1 | Plug Wire Entry | 270° |
| Housing Material | Polyamide | Length - Overall | 10 mm |
| Termination Rows | 螺钉 | Termination Style | Through Hole |
| Number of Contacts | 2 | Number of Positions | 2 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | COMBICON MVSTBW | Features | Retention Latches (Non-Wire Side) |
| CAD Drawing | 3D CAD 模型 | Industry Aliases | MVSTBW 2, 5/ 2-ST |
| Number of Levels | 1 | Positions Per Level | 2 |
