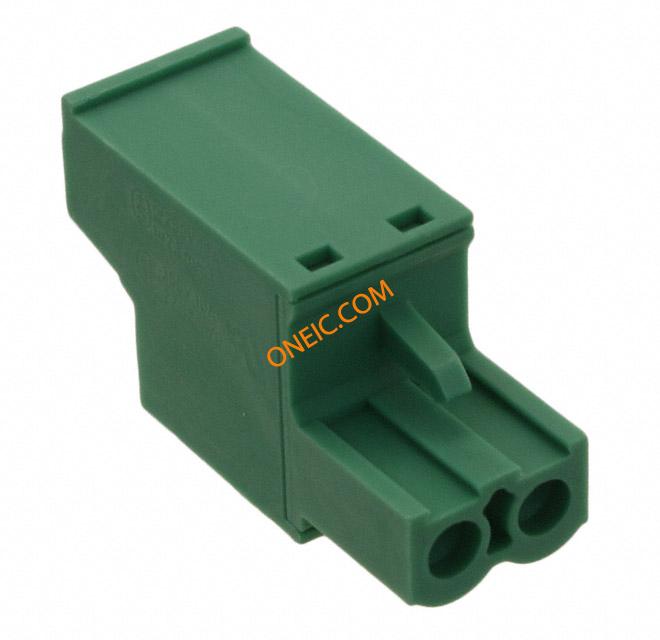

1779411
| Manufacturer | |
| Description | Pluggable Terminal Blocks FRONT-MSTB 2.5/2-ST Conn Terminal Block F 2 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 2-ST FRONT-MSTB2,5/2-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 2 路 母 绿色 直 插头, 插入式, 螺钉端接 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Green | Depth | 15mm |
| Pitch | 0.197" (5.00mm) | Width | 27.2mm |
| Height | 15 | Length | 10mm |
| Weight | 0.216159 oz | Material | 聚酰胺 |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Orientation | 直 | Termination | Screw |
| Mounting Type | Cable Mount | Connector Type | 母座 |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 10 | Termination Rows | 螺钉 |
| Termination Style | Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTB | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 2 |
