点击放大查看
1769094
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBP 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/10-ST-5,08 Plugcomponent,Nominalcurrent:12A(10Positions)5.08pitch |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 21.3 |
| Pitch | 5.08 mm | Height | 15 |
| Weight | 4.550341 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 50.8 |
| Termination Style | Screw | Number of Contacts | 10 |
| Number of Positions | 10 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTBP | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 10 |
Documents & Media
Similar Parts
1767452
Phoenix Contact
Pluggable Terminal Blocks SMSTBA 2 5/10-G-5 08 Conn Shrouded Header HDR 10 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 10POS 5.08MM Header for PCB plug connector SMSTBA 2,5/10-G-5,08 SMSTBA25/10-G-508 Phoenix Contact COMBICON SMSTBA 系列 10路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1872541
Phoenix Contact
Pluggable Terminal Blocks A-MSTBVA 2.5/10-G-5.08 Conn Shrouded Header HDR 10 POS 5.08mm ST HEADER TERM BLOCK 10 POS 5.08MM A-MSTBVA25/10-G-508

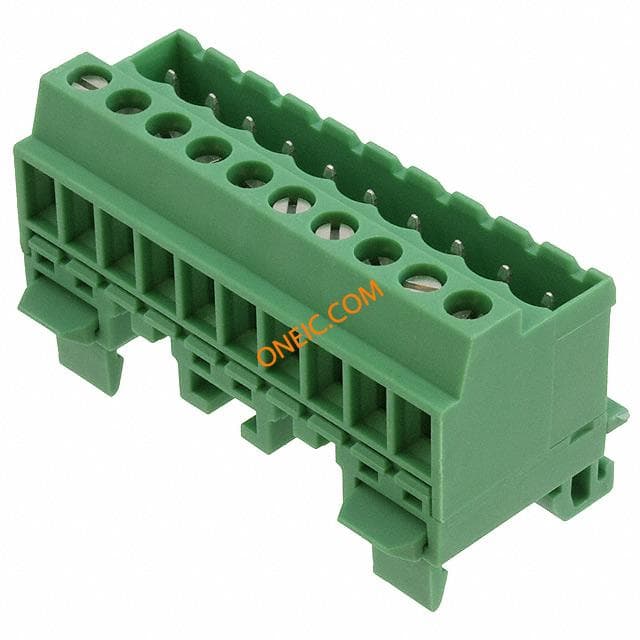

1788800
