P2R-08P
| Manufacturer | |
| Description | Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列 |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Socket |
| Part # Aliases | 1340957 OMRP2R-08-P P2R-08-PP2R08P | Product Category | Relay Sockets & Hardware |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULRecognized,CSACertified,VDEApproved |
| Tariff No | 85364190 | Approval Agency | :CSA, UL |
Electrical
| Voltage Rating | :250VAC | Number of Poles | 2 |
| Current Rating (Max) | :5A | Voltage - Input (Min) | 250VAC |
Mechanical
| Depth | :36mm | Width | :14.5mm |
| Height | 36.06 | Length | :35.5mm |
| Weight | 0.047 | Packaging | Bulk |
| Lead Style | for PCB | Row Spacing | 7.49 |
| Termination | Solder | Mounting Type | Straight |
| Terminal Type | :Through Hole | Connector Type | :Quick Connect |
| Mounting Style | Back | Number of Pins | :8 |
| Number of Rows | 2 | Length - Overall | 35.56 |
| Size / Dimension | see | Termination Style | PCB |
| Number of Contacts | 8 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 8 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | G2R-2S | Relay Type | GeneralPurpose |
| Accessory Type | Sockets | Number of Units | 1 |
| Industry Aliases | P2R-08P | Application Specifics | High Isolation, High Sensitivity |
| For Use With/Related Products | G2R-2-S Relays | ||
Environmental
| Operating Temperature | -55...70°C | Usable Temperature Range | -40to+70°C |
Documents & Media
Similar Parts
G2R-2-SN AC110(S)
Omron Industrial
General Purpose Relays DPDT 110VAC 10.6mA Electromechanical Relay DPDT 5A 110VAC 5.556KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 110V Relay
G2R-2-SN AC230(S)
Omron Industrial
General Purpose Relays DPDT 5A 230VAC 26.85KOhm Socket Electromechanical Relay DPDT 5A 230VAC 27.172KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 230V Relay
P2R-08P
Omron Industrial
Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列
G2R-2-SN DC6(S)
Omron Industrial
General Purpose Relays DPDT 5A 6VDC 68Ohm Socket RELAY GENERAL PURPOSE DPDT 5A 6V Electromechanical Relay DPDT 5A 6VDC 69Ohm Plug-In Relay
G2R-2-SD DC6(S)
Omron Industrial
General Purpose Relays DPDT 5A 6VDC PLUG-IN Relay RELAY GENERAL PURPOSE DPDT 5A 6V Relay
G2R-2-SD DC12(S)
Omron Industrial
General Purpose Relays DPDT 5A 12VDC 275Ohm Socket RELAY GEN PURPOSE DPDT 5A 12V Electromechanical Relay DPDT 5A 12VDC 278Ohm Plug-In Relay
G2R-2-SNI DC12(S)
Omron Industrial
General Purpose Relays DPDT 12VDC PLUG-IN W/LED RELAY GEN PURPOSE DPDT 5A 12V Electromechanical Relay DPDT 5A 12VDC 278Ohm Plug-In Relay Industrial relay, 12 VDC, 278 Ohm, 530 mW, G2R-2-SNI DC12(S), Omron Electronic Components
G2R-2-SNI AC230(S)
Omron Industrial
General Purpose Relays DPDT 230VAC PLUG-IN W/LED RELAY GEN PURPOSE DPDT 5A 230V Electromechanical Relay DPDT 5A 230VAC 27.172KOhm Plug-In Relay Industrial relay, 230 VAC, 27172 Ohm, 0.9 VA, G2R-2-SNI AC230(S), Omron Electronic Components
G2R-2-SNI AC24(S)
Omron Industrial
General Purpose Relays DPDT 24VAC PLUG-IN W/LED Electromechanical Relay DPDT 5A 24VAC 253Ohm Plug-In RELAY GEN PURPOSE DPDT 5A 24V Relay Industrial relay, 24 VAC, 253 Ohm, 0.9 VA, G2R-2-SNI AC24(S), Omron Electronic Components
G2R-2-SNI AC120(S)
Omron Industrial
General Purpose Relays DPDT 120VAC PLUG-IN W/LED Electromechanical Relay DPDT 5A 120VAC 7.286KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 120V Relay
G2R-2-SNDI DC12(S)
Omron Industrial
General Purpose Relays DPDT 5A 12VDC 275Ohm Socket RELAY GEN PURPOSE DPDT 5A 12V G2R-2-SDNI DPDT power relay,5A 12Vdc Electromechanical Relay DPDT 5A 12VDC 278Ohm Plug-In Relay Industrial relay, 12 VDC, 278 Ohm, 530 mW, G2R-2-SNDI DC12(S), Omron Electronic Components Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 12V dc
G2R-2-SND DC6(S)
Omron Industrial
General Purpose Relays DPDT 5A 6VDC 68Ohm Socket RELAY GENERAL PURPOSE DPDT 5A 6V Electromechanical Relay DPDT 5A 6VDC 69Ohm Plug-In Relay
G2R-2-SN AC120(S)
Omron
Electromechanical Relay DPDT 5A 120VAC 7.286KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 120V POWER RELAY, DPDT, 120VAC, 5A, PLUG IN RELAY;E-MECH;POWER;DPDT;CUR-RTG5A;CTRL-V120AC;VOL-RTG250/30AC/DC;SOCKETMNT Relay
G2R-2-SND DC24(S)
Omron
Electromechanical Relay DPDT 5A 24VDC 1.113KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 24V General Purpose Relays DPDT 24 VDC LED indctr and diode RELAY, DPDT, 24VDC RELAY;E-MECH;POWER;DPDT;CUR-RTG5A;CTRL-V24DC;VOL-RTG250/30AC/DC;SOCKETMNT POWER RELAY Industrial relay, 24 VDC, 1113 Ohm, 530 mW, G2R-2-SND DC24(S), Omron Electronic Components
G2R-2-SNI DC24(S)
Omron
Electromechanical Relay DPDT 5A 24VDC 1.113KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 24V General Purpose Relays RELAY POWER RELAY, DPDT, 24VDC, 5A, PLUG IN Relay Industrial relay, 24 VDC, 1113 Ohm, 530 mW, G2R-2-SNI DC24(S), Omron Electronic Components Omron 5 A Plug In安装 双刀双掷 智能电源继电器, 125 V 直流,380 V 交流
G2R-2-S DC6(S)
Omron Electronics Inc-IA Div
RELAY GENERAL PURPOSE DPDT 5A 6V Electromechanical Relay DPDT 5A 6VDC 69Ohm Plug-In
G2R-2-SND-DC12S
Omron Electronics Inc-IA Div
RELAY GEN PURPOSE DPDT 5A 12V
G2R-2-S AC230(S)
Omron Automation and Safety
RELAY GEN PURPOSE DPDT 5A 230V

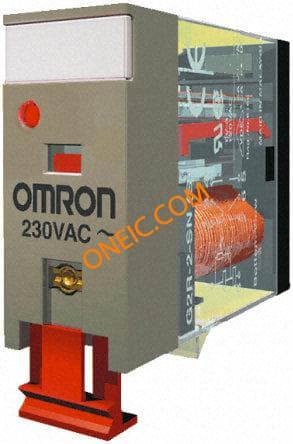

G2R-2-SNI AC110(S)
