G2R-2-SN AC110(S)
| Manufacturer | |
| Description | General Purpose Relays DPDT 110VAC 10.6mA Electromechanical Relay DPDT 5A 110VAC 5.556KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 110V Relay |
| Category |
Business
| Part # Aliases | (S) 110AC 4375300 G2R-2-SN G2R2SN110ACS | Product Category | General Purpose Relays |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 5 Amps | Coil Type | Non Latching |
| Coil Power | 0.9 VA | Coil Current | 8.2mA |
| Release Time | 15ms | Power - Rated | 150W|1.25kVA |
| Visible Output | Yes | Voltage Rating | 125 |
| Coil Resistance | 5.5 kOhms | Pushing (MHz/V) | No |
| Voltage - Supply | 110VAC | Switching Voltage | 380 VAC, 125 VDC |
| Vgs(th) (Max) @ Id | 33 VAC | Voltage - Clamping | 88VAC |
| Current - Switching | 1,250VA, 150W | Diode Configuration | No |
| Current Rating (Max) | 5 | Minimum Load Required | 10mA @ 5VDC |
| Voltage - Input (Min) | 33VAC | Vce(on) (Max) @ Vge, Ic | 88 VAC |
| Contact Rating (Current) | 5 A | Load Side Connections Per Pole | 5A @ 250VAC/30 VDC |
Mechanical
| Seal | Unsealed | Depth | 13 |
| Height | 41.7 | Packaging | Bulk |
| Contact Form | 2 Form C | Mounting Type | Plug-In |
| Package Cooled | Dust Cover | Length - Overall | 29 |
| Termination Style | Solder Lug | Number of Contacts | 8 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | General Purpose Relay | Features | LED Indicator |
| Function | Single Side Stable | Relay Type | Non-Latching |
| Card Standard | General Purpose Relay | ||
Environmental
| Rated Life | 100,000 ops | Operate Time | 15ms |
| Operating Temperature | -40°C ~ 70°C | ||
Documents & Media
Similar Parts

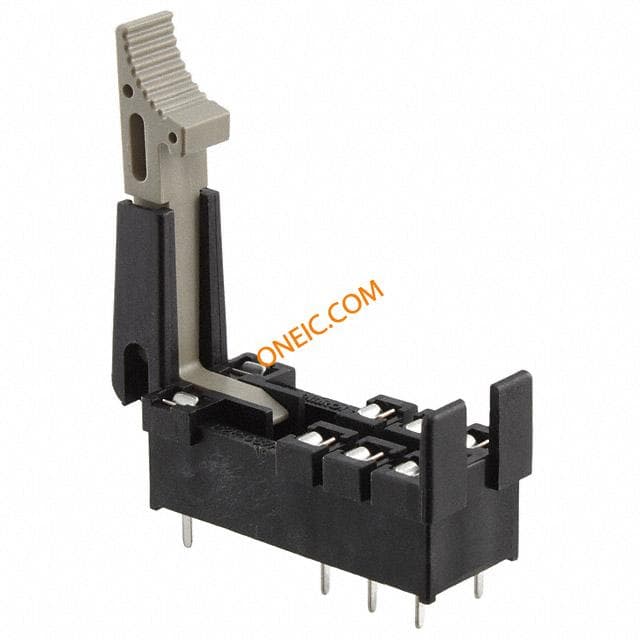

P2R-087P
Omron Industrial

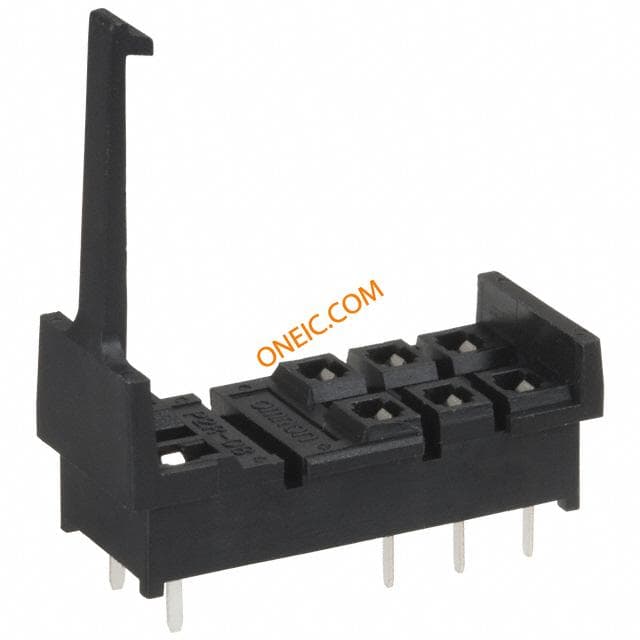

Relay Sockets & Hardware Socket Back Mount PCB for 2Pin G2R RELAY SOCKET PC MNT FOR G2R-2-S Omron P2R-087P Socket H3RN Series Solid-State Timer Connecting Socket SOCKET, PCB, H3RN-2 TIMER Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB Omron P2R-08P 插座, 使用于H3RN 系列
P2R-08P
Omron Industrial
Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列
P2RF-08
Omron Industrial
Relay Sockets & Hardware SOCKET Conn Relay Socket SKT 8 POS Solder ST SOCKET TRACK SMD FOR G2R-2-S RELAY SOCKET Socket,Relay;2POLE;G2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN SOCKET RELAY DIN RAIL G2R-2-S
P2RF-08-E
Omron Industrial
Relay Sockets & Hardware TRCK MT SOCKT G2R-2S Conn Relay Socket SKT Screw SMD SOCKET RELAY DIN RAIL G2R-2-S RELAY SOCKET, DIN, 2 POLE, 5A Socket,Relay;TRACK/DINMOUNTEDSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN G2R-2-S SOCKET/TRACK MOUNT Relay socket for G2R-2-S, P2RF-08-E, Omron Electronic Components
P2RF-08-S
Omron
Conn Relay Socket SKT 8 POS ST Panel Mount SOCKET RELAY SCREWLESS G2R-2-S SCREWLESSSOCKET Relay socket for G2R-2-S, P2RF-08-S, Omron Electronic Components 继电器插座, 适用于G2R-2-S 系列

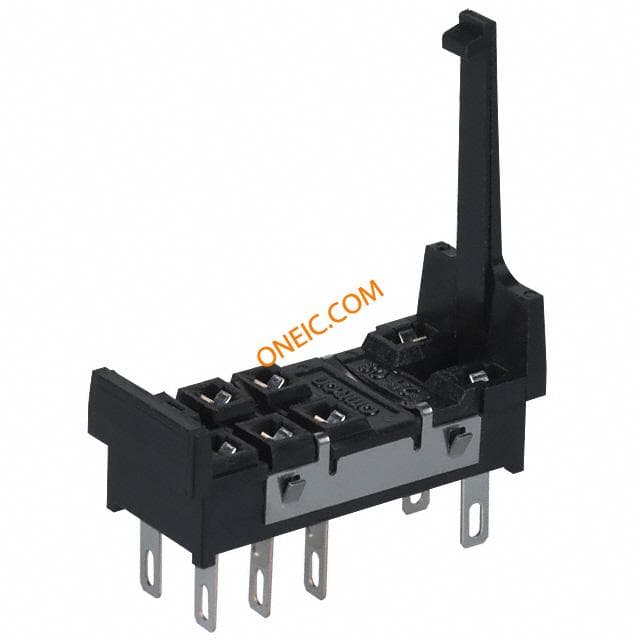

P2R-08A
