G2R-2-SND DC24(S)

点击放大查看

G2R-2-SND DC24(S)

Manufacturer
Omron Corporation
Description
Electromechanical Relay DPDT 5A 24VDC 1.113KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 24V General Purpose Relays DPDT 24 VDC LED indctr and diode RELAY, DPDT, 24VDC RELAY;E-MECH;POWER;DPDT;CUR-RTG5A;CTRL-V24DC;VOL-RTG250/30AC/DC;SOCKETMNT POWER RELAY Industrial relay, 24 VDC, 1113 Ohm, 530 mW, G2R-2-SND DC24(S), Omron Electronic Components
Category
Industrial Power Components and RelaysPower Relays, Over 2 AmpsLatching Relays
对参数有疑问？问 AI 助手

Business

Part # AliasesG2R-2SND-DC24SProduct CategoryGeneral Purpose Relays
Standard Package100

Compliance

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
EU RoHSCompliantTariff No85365005
Approval Agency:CSA, SEMKO, SEV, TUV, VDE

Electrical

Coil TypeNon LatchingCoil Power530 mW
Range deg/s:OMRON - G2RS SeriesCoil Current21.6mA
Release Time20msPower - Rated150W|1.25kVA
Visible OutputYesVoltage - Core:250V
Voltage Rating125Coil Resistance1.1 kOhms
Number of Poles:2Pushing (MHz/V)No
Current - Output:5AVoltage - Supply24VDC
Switching Voltage380VAC, 125VDC - MaxContact Resistance:100mohm
Vgs(th) (Max) @ Id3.6 VDCVoltage - Clamping16.8VDC
Diode ConfigurationYesVoltage - Breakdown:5000VAC
Current Rating (Max)5Contact Voltage (Max):250V
Current - Max/Contact:5AInsulation Resistance:1000Mohm
Voltage - Input (Min)3.6VDCPower - Average Forward0.53 W
Vce(on) (Max) @ Vge, Ic16.8 VDCContact Rating (Current)5A
Contact Rating @ Voltage:100mAVoltage - Supply, Digital:30V
Voltage - Supply (Vcc/Vdd):30VVoltage - Rated AC (Phase to Ground/Neutral):250V

Mechanical

SealUnsealedDepth:13mm
Width13 mmHeight35.5 mm
Length29 mmWeight0.1
PackagingBulkContact Form2 Form C
Height (Max):28mmMounting TypePlug-In
Mounting StylePlug InPackage CooledDust Cover
Contact MaterialSilver AlloyLength - Overall29
Termination StyleSolder LugNumber of Contacts8
Contact TerminationPinContact Layout, TypicalDPDT

Product Info

TypeGeneral Purpose RelaySeriesG2RS
FeaturesDiode, LED IndicatorRelay TypeNon-Latching

Environmental

Operate Time15msSwitching Cycles:20000000
Operating Temperature-40°C ~ 70°C

Documents & Media

PDF Document
96544.pdf
PDF Document
g2r-_-s_ds_csm42.pdf

Similar Parts

P2R-087P

P2R-087P

Omron Industrial

Relay Sockets & Hardware Socket Back Mount PCB for 2Pin G2R RELAY SOCKET PC MNT FOR G2R-2-S Omron P2R-087P Socket H3RN Series Solid-State Timer Connecting Socket SOCKET, PCB, H3RN-2 TIMER Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB Omron P2R-08P 插座, 使用于H3RN 系列

$68.8609
Details
P2R-08P

P2R-08P

Omron Industrial

Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列

$8.8332
Details
P2RF-08

P2RF-08

Omron Industrial

Relay Sockets & Hardware SOCKET Conn Relay Socket SKT 8 POS Solder ST SOCKET TRACK SMD FOR G2R-2-S RELAY SOCKET Socket,Relay;2POLE;G2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN SOCKET RELAY DIN RAIL G2R-2-S

$1.0029
Details
P2RF-08-E

P2RF-08-E

Omron Industrial

Relay Sockets & Hardware TRCK MT SOCKT G2R-2S Conn Relay Socket SKT Screw SMD SOCKET RELAY DIN RAIL G2R-2-S RELAY SOCKET, DIN, 2 POLE, 5A Socket,Relay;TRACK/DINMOUNTEDSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN G2R-2-S SOCKET/TRACK MOUNT Relay socket for G2R-2-S, P2RF-08-E, Omron Electronic Components

$32.0960
Details
P2RF-08-S

P2RF-08-S

Omron

Conn Relay Socket SKT 8 POS ST Panel Mount SOCKET RELAY SCREWLESS G2R-2-S SCREWLESSSOCKET Relay socket for G2R-2-S, P2RF-08-S, Omron Electronic Components 继电器插座, 适用于G2R-2-S 系列

$57.4056
Details

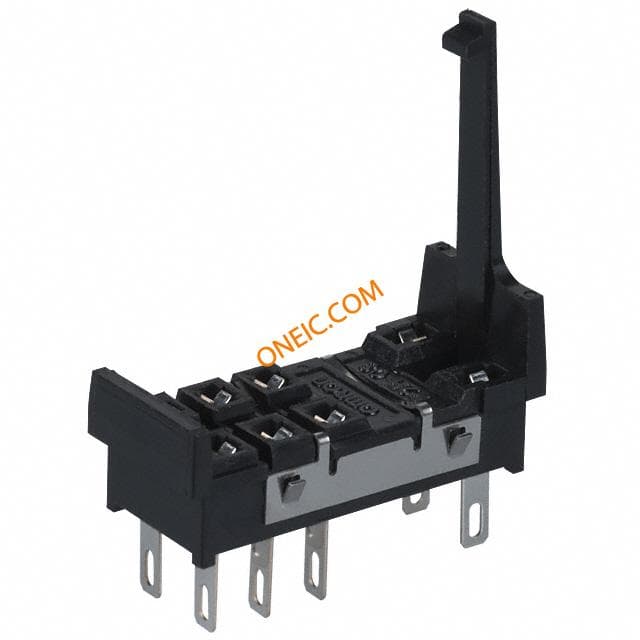

P2R-08A
