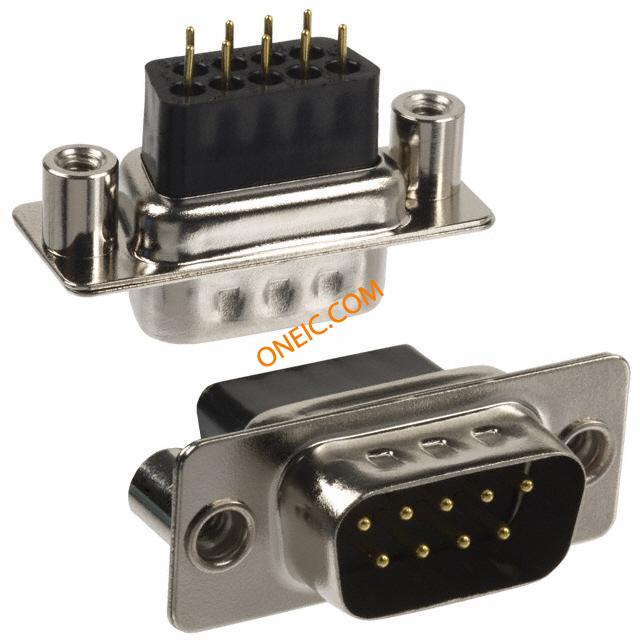

172-009-183L021
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Male CONN DB9 MALE HI PROFILE NKL |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 45 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Number of Rows | 2 |
| Connector Style | D-Sub | Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 9 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -50°C ~ 125°C | ||
